LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2009
>>
Rogue SL, FWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
On-Vehicle Repair
>>
Oil Cooler
>>
Exploded View
Exploded View

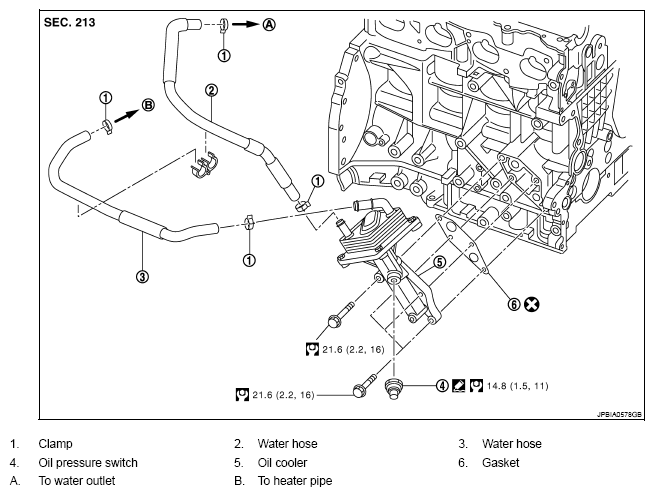

Fig 1: Identifying Oil Pressure Switch, Oil Cooler And Water Hose
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
