Engine Control System (MEXICO)
>>
Function Diagnosis
>>
On Board Diagnostic (OBD) System
>>
CONSULT-III Function
>>
Engine Control Component Parts/Control Systems Application
Engine Control Component Parts/Control Systems Application

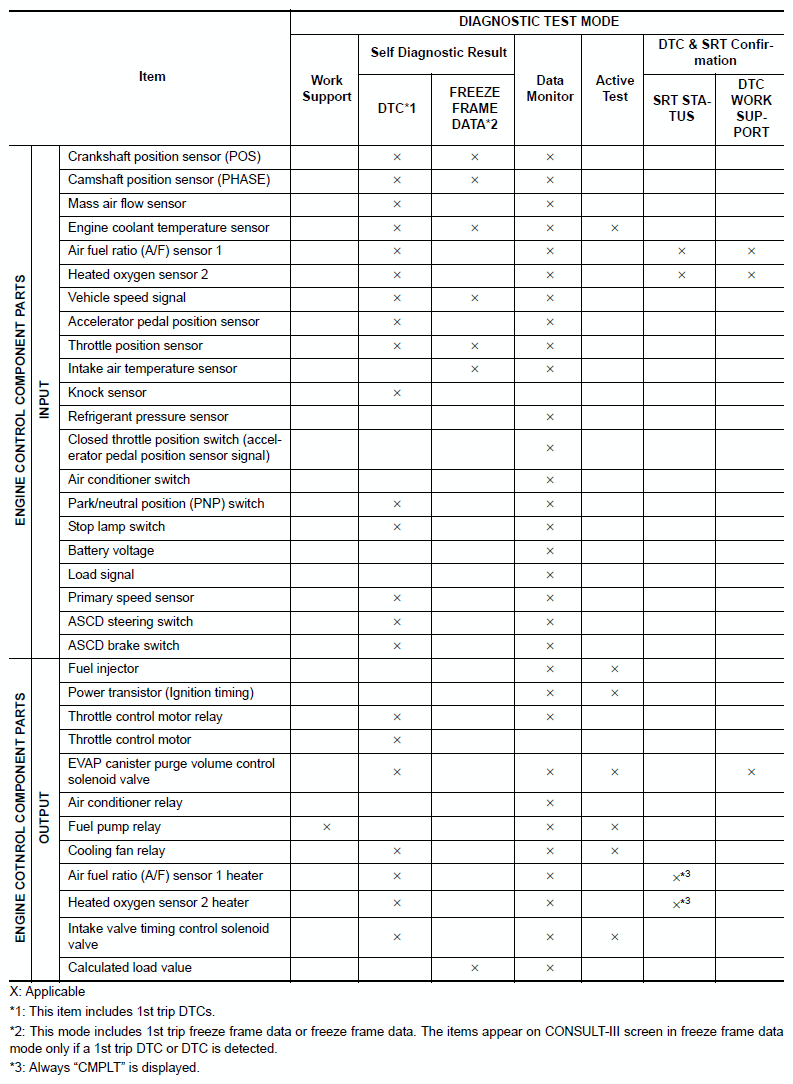

Fig 1: Engine Control Component Parts Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
