Component Parts Location

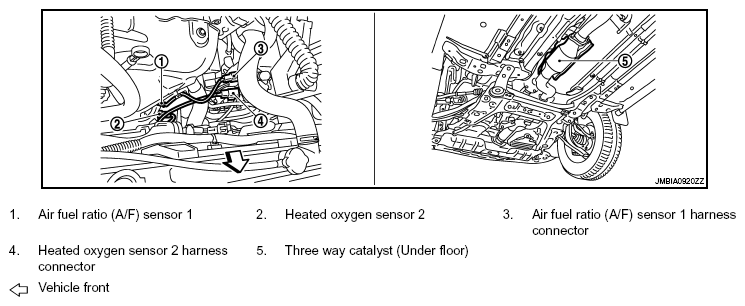

Fig 1: Identifying Cooling Fan Control System Components Location (1 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

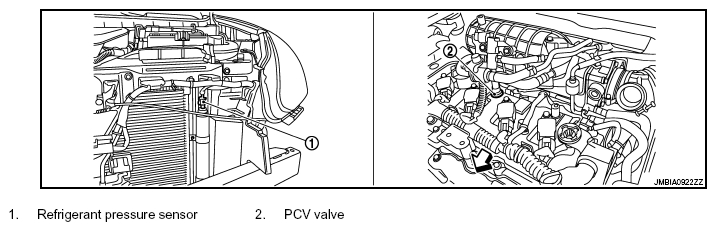

Fig 2: Identifying Cooling Fan Control System Components Location (2 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

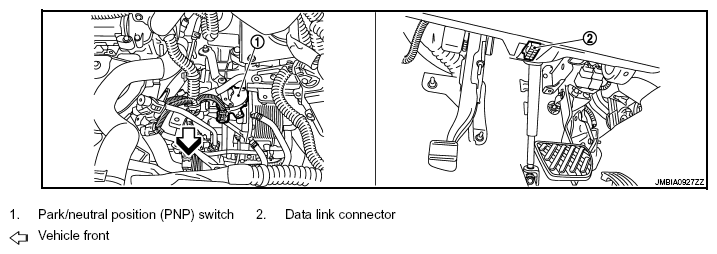

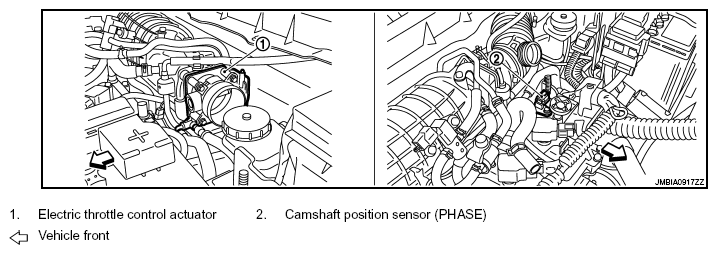

Fig 3: Identifying Cooling Fan Control System Components Location (3 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

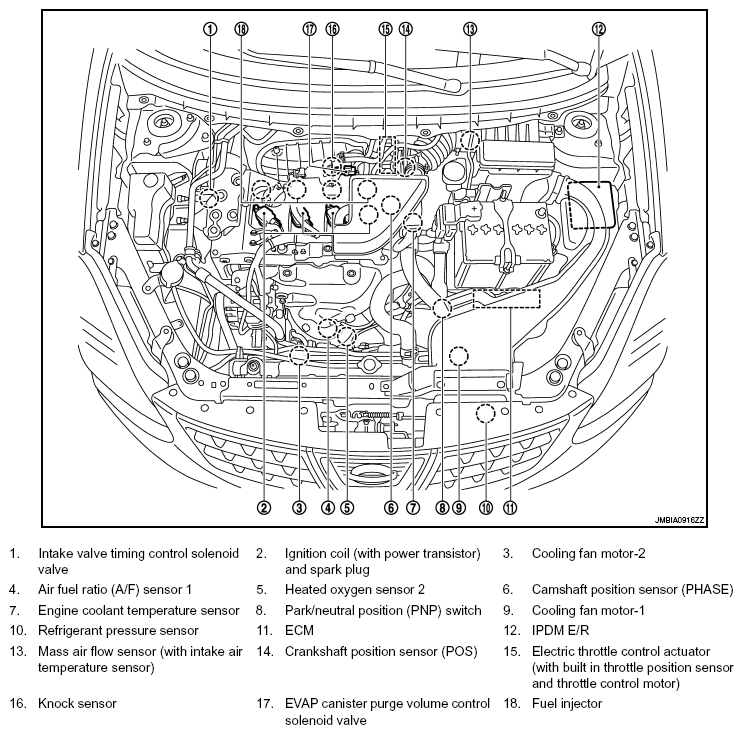

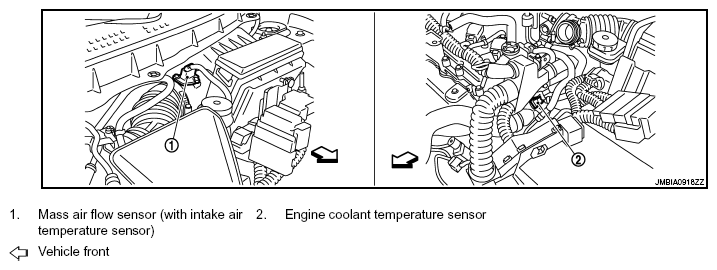

Fig 4: Identifying Cooling Fan Control System Components Location (4 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

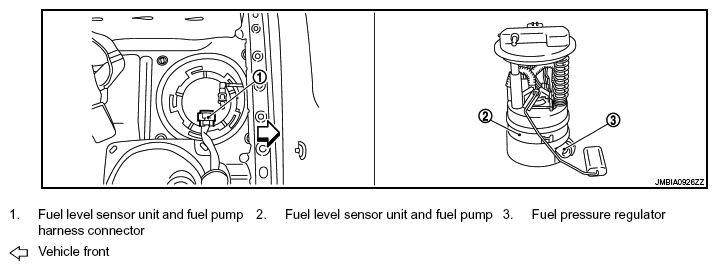

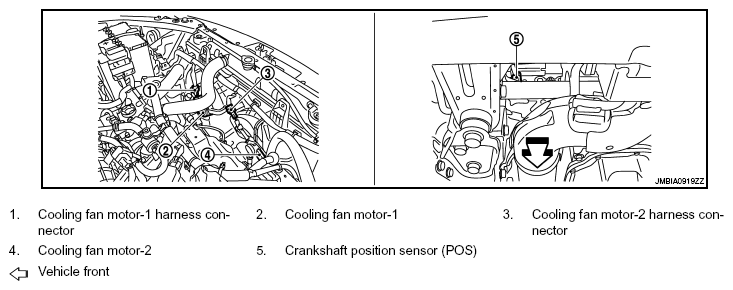

Fig 5: Identifying Cooling Fan Control System Components Location (5 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

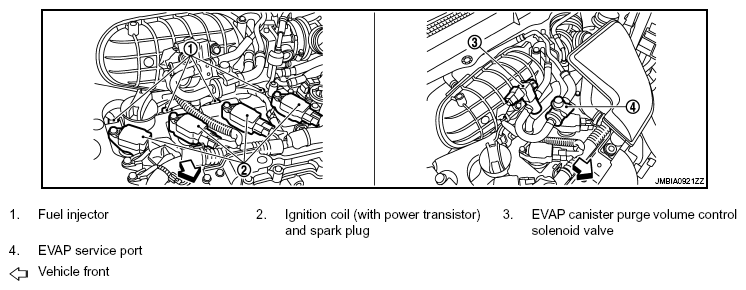

Fig 6: Identifying Cooling Fan Control System Components Location (6 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

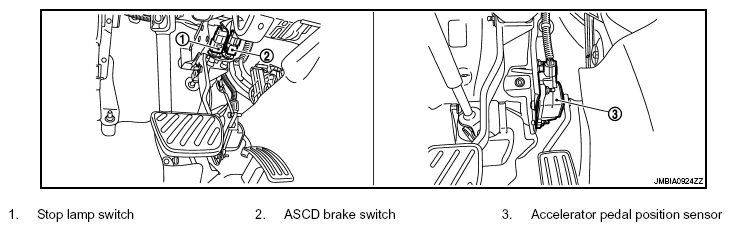

Fig 7: Identifying Cooling Fan Control System Components Location (7 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Cooling Fan Control System Components Location (8 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Cooling Fan Control System Components Location (9 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

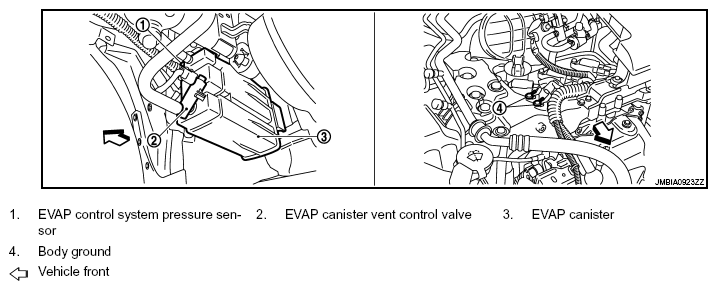

Fig 10: Identifying Cooling Fan Control System Components Location (10 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Cooling Fan Control System Components Location (11 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Cooling Fan Control System Components Location (12 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

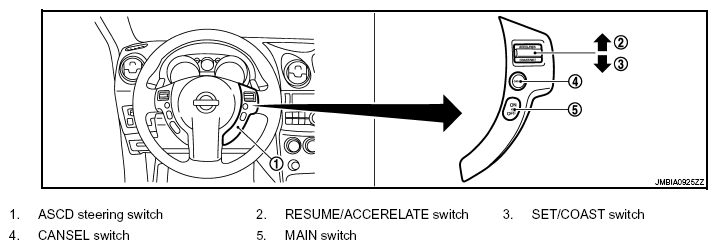

Fig 13: Identifying Cooling Fan Control System Components Location (13 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.
