AWD : Exploded View: Removal

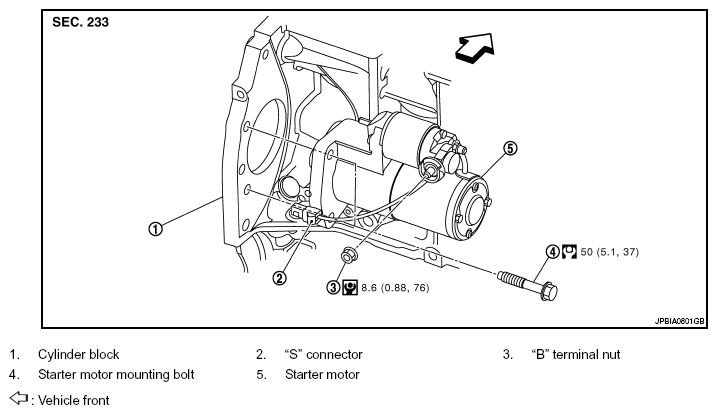

Fig 1: Identifying Starter Motor Mounting Bolt, S Connector And B Terminal Nut (AWD)
G06057481Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
