Rogue S, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
On-Vehicle Repair
>>
Alternator
>>
Exploded View
>>
Disassembly
Exploded View: Disassembly
Type: LR1110-713C

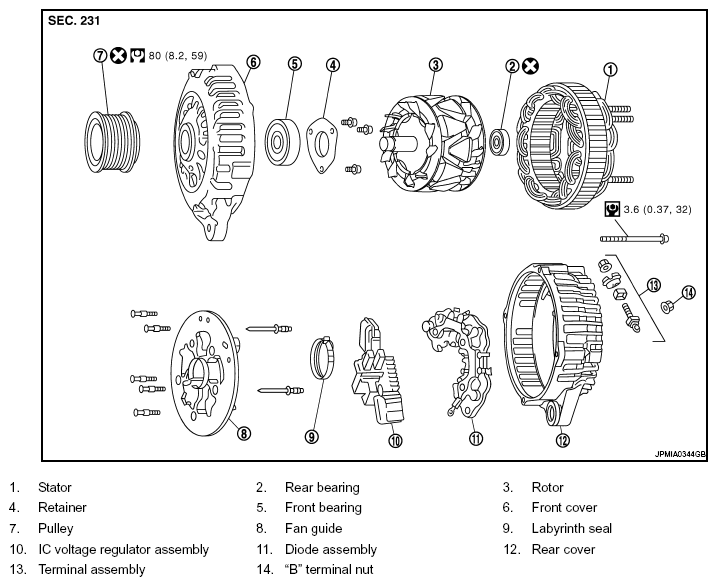

Fig 1: Disassembled View Of Alternator
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
