Disassembly and Assembly: Assembly

Install the inner tie-rods.
Install the outer tie-rods to the specified length and tighten the outer tie-rod lock nut to specification. Refer to "STEERING GEAR AND LINKAGE ".
Use Genuine High Temperature, High Strength Thread Locking Sealant (Red) or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

Fig 1: Measuring Length Of Inner And Outer Tie-Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure rack stroke. Refer to "STEERING GEAR AND LINKAGE ".

Fig 2: Identifying Rack Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.
Before installing the dust boot, coat the contact surfaces between the boot and the inner tie-rod with grease.

Fig 3: Coating Contact Surfaces Between Boot And Tie-Rod Socket With Grease
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the boot clamps and boot bands securely.

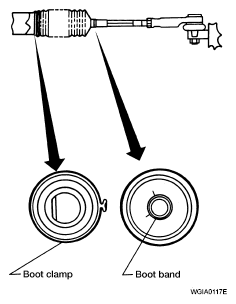

Fig 4: Identifying Boot Clamps And Boot Bands
Courtesy of NISSAN MOTOR CO., U.S.A.
