DTC P0405, P0406 EGRT Sensor: Wiring Diagram

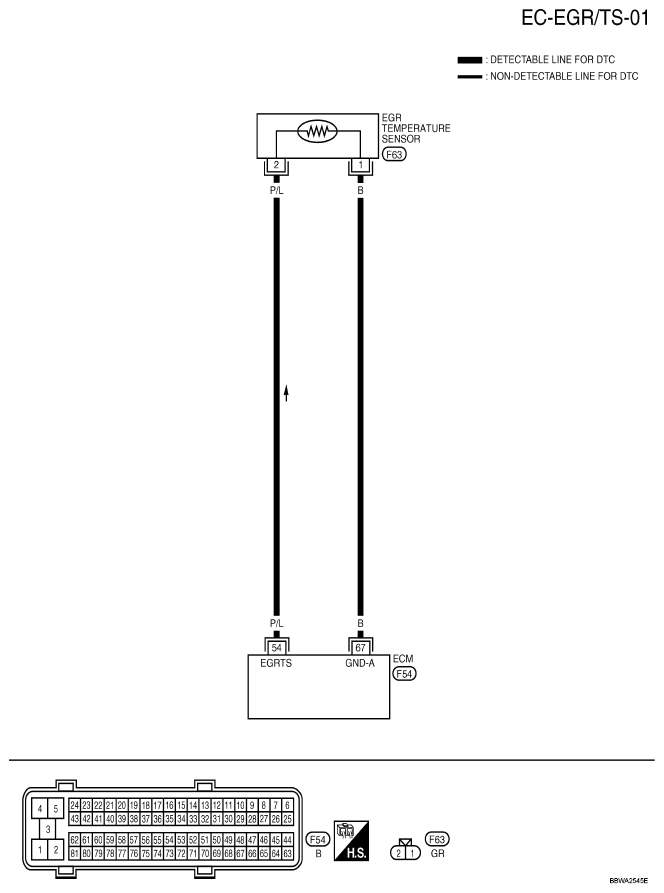

Fig 1: EGR Temperature Sensor - Wiring Diagram

G04905519

Courtesy of NISSAN MOTOR CO., U.S.A.
