Diagnosis Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to , "GROUND INSPECTION ".

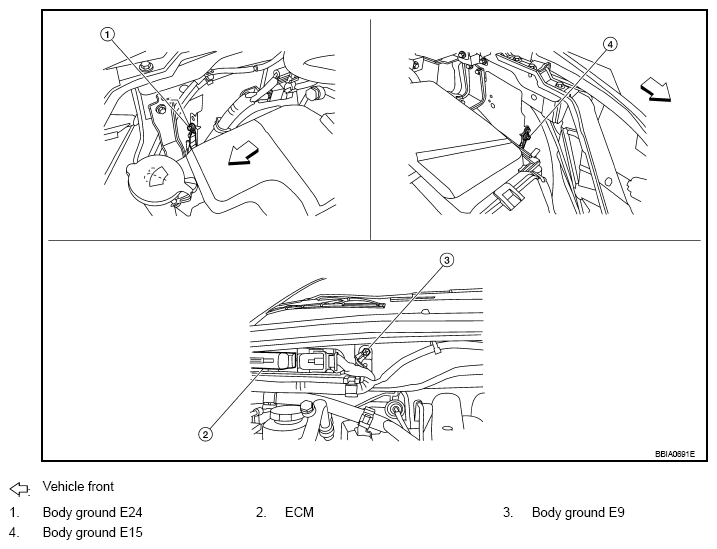

Fig 1: Identifying Body Ground Connections

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.

Refer to , "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 3.

NG: Replace mass air flow sensor (with intake air temperature sensor).

Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

Refer to , "WIRING DIAGRAM ".

INSPECTION END
