Engine Control System - Component Testing (VQ40DE)
>>
Symptom Diagnosis
>>
Engine Control System Symptoms
>>
Symptom Matrix Chart
>>
System - Basic Engine Control System
System - Basic Engine Control System

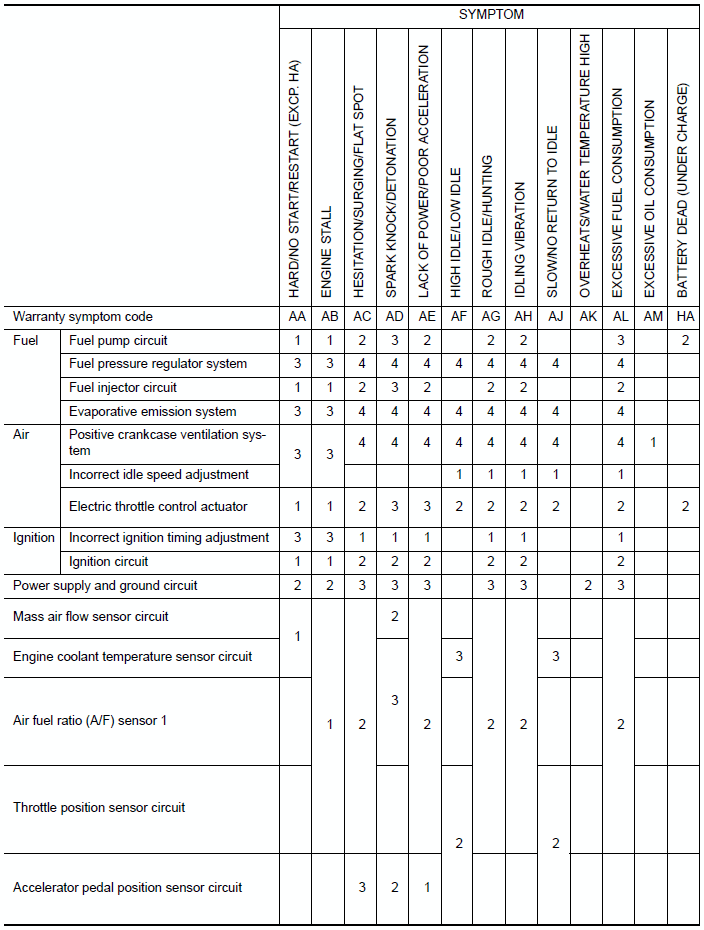

Fig 1: Basic Engine Control System - Symptom Matrix Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

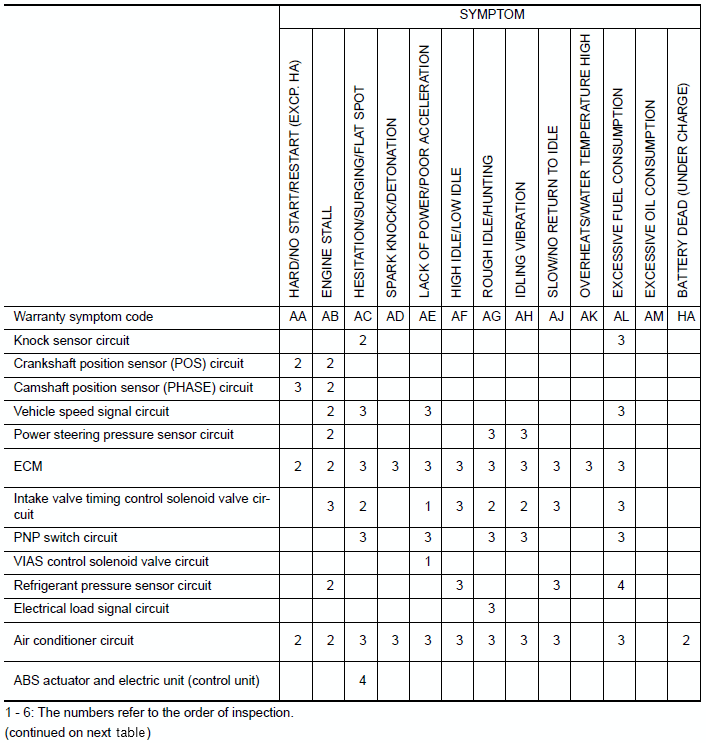

Fig 2: Basic Engine Control System - Symptom Matrix Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
