Component Parts Location
Component Parts Location

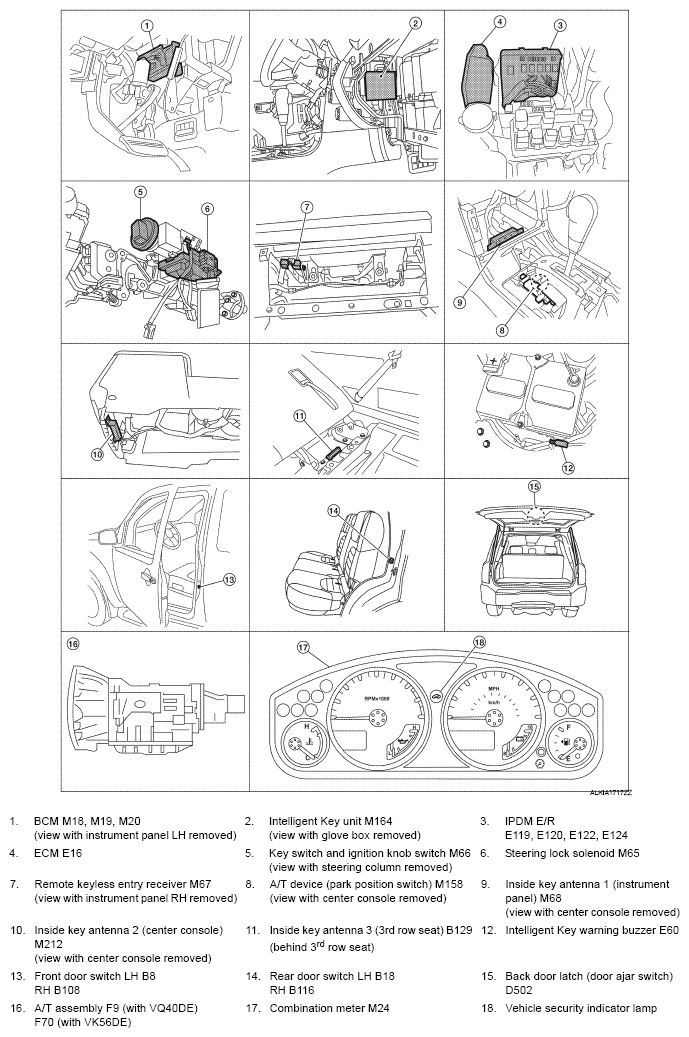

Fig 1: Identifying Key System And Engine Start Component Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
