Exploded View
Exploded View

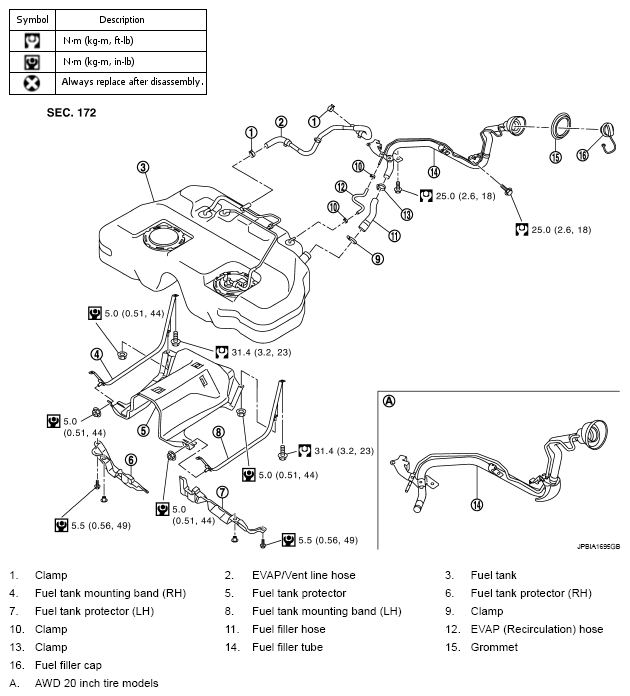

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for to symbols in the figure.
