Overall Sequence

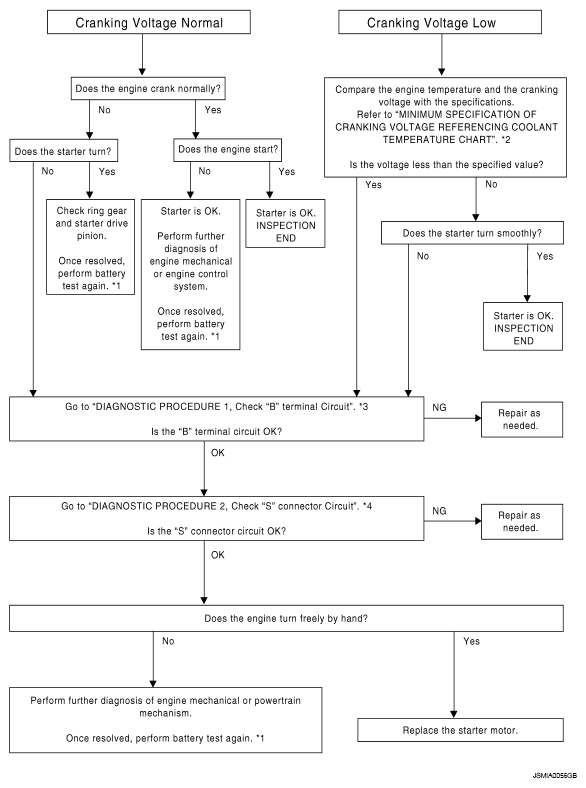

Fig 1: Diagnosis And Repair Workflow Diagram
G05889832Courtesy of NISSAN MOTOR CO., U.S.A.
