Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C Auto Amp (M37) | Behind center of dash. See Figure. |
| BOSE Speaker Amplifier | Under rear parcel shelf. See Figure. |
| Condenser - 2 (F26) | Left rear of engine. See Figure. |
| CVT Device (M78) | Under center console. See Figure. |
| CVT Unit (F46) | Left rear of engine. See Figure. |
| Data Link Connector (M22) | Below left side of dash. See Figure. |
| Diode - 3 (M80) | Left center of dash. See Figure. |
| Driver Air Bag Module (M105) | In steering wheel. See Figure. |

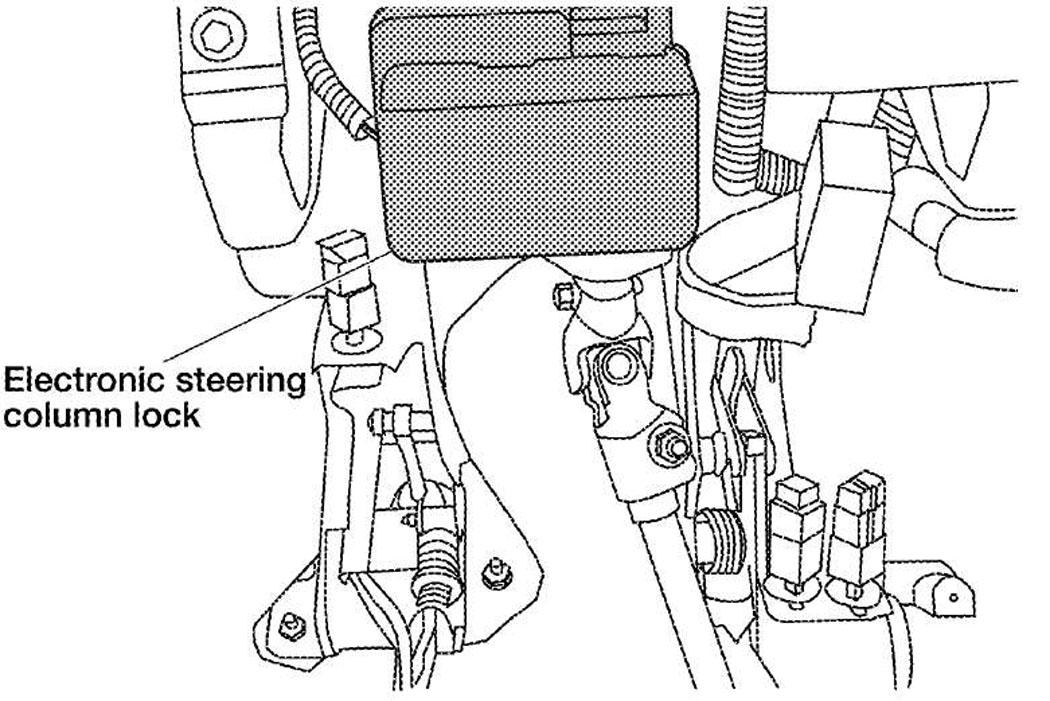

| Electronic Steering Column Lock | On steering column. See Figure. |
| Exhaust Valve Timing Control Magnet Retarder (Bank 1) (F32) | Left rear of engine. See Figure. |
| Exhaust Valve Timing Control Magnet Retarder (Bank 2) (F33) | Left front of engine. See Figure. |
| Front Console Antenna (M41) | Behind center of dash. See Figure. |
| Front Electronic Controlled Engine Mount (F64) | Top left front of engine. See Figure. |
| Front Left Seat Belt Pre-Tensioner (B14) | Base of left "B" pillar. See Figure. |
| Front Left Side Air Bag Module (B11) | Left side of driver's seat back. See Figure. |
| Front Passenger Air Bag Module (M77) | Behind right side of dash. See Figure. |
| Front Right Seat Belt Pre-Tensioner (B115) | Base of right "B" pillar. See Figure. |
| Front Right Side Air Bag Module (B112) | Right side of front passenger's seat back. See Figure. |
| Generator (F6) | Lower left front of engine. See Figure. |
| Horn (High) (E216) | Left front of engine compartment. See Figure. |
| Horn (Low) (E215) | Left front of engine compartment. See Figure. |
| Ignition Coil No. 1 (W/Power Transistor) (F34) | Top of right cylinder bank. See Figure. |
| Ignition Coil No. 2 (W/Power Transistor) (F35) | Top of left cylinder bank. See Figure. |
| Ignition Coil No. 3 (W/Power Transistor) (F36) | Top of right cylinder bank. See Figure. |
| Ignition Coil No. 4 (W/Power Transistor) (F37) | Top of left cylinder bank. See Figure. |
| Ignition Coil No. 5 (W/Power Transistor) (F38) | Top of right cylinder bank. See Figure. |
| Ignition Coil No. 6 (W/Power Transistor) (F39) | Top of left cylinder bank. See Figure. |
| Instrument Panel Antenna (M49) | Behind center of dash. See Figure. |
| Joint Connector - B01 (B2) | Near base of left "B" pillar. See Figure. |
| Joint Connector - B02 (B3) | Near base of left "B" pillar. See Figure. |
| Joint Connector - B03 (B13) | Left "C" pillar. See Figure. |
| Joint Connector - B04 (B26) | Left side of luggage compartment. See Figure. |
| Joint Connector - B05 (B20) | In trunk lid. See Figure. |
| Joint Connector - B21 (B122) | Right kick panel. See Figure. |
| Joint Connector - B22 (B123) | Right "C" pillar. See Figure. |
| Joint Connector - E01 (E1) | Left side of engine compartment. See Figure. |
| Joint Connector - E02 (E20) | Left rear of engine compartment. See Figure. |
| Joint Connector - E03 (E21) | Left rear of engine compartment. See Figure. |
| Joint Connector - E04 (E22) | Left rear of engine compartment. See Figure. |
| Joint Connector - M01 (M64) | Left side of dash. See Figure. |
| Joint Connector - M02 (M65) | Left side of dash. See Figure. |
| Left Side Curtain Air Bag Module (B71) | Left "C" pillar. See Figure. |
| Microphone (R7) | Center front of roof. See Figure. |

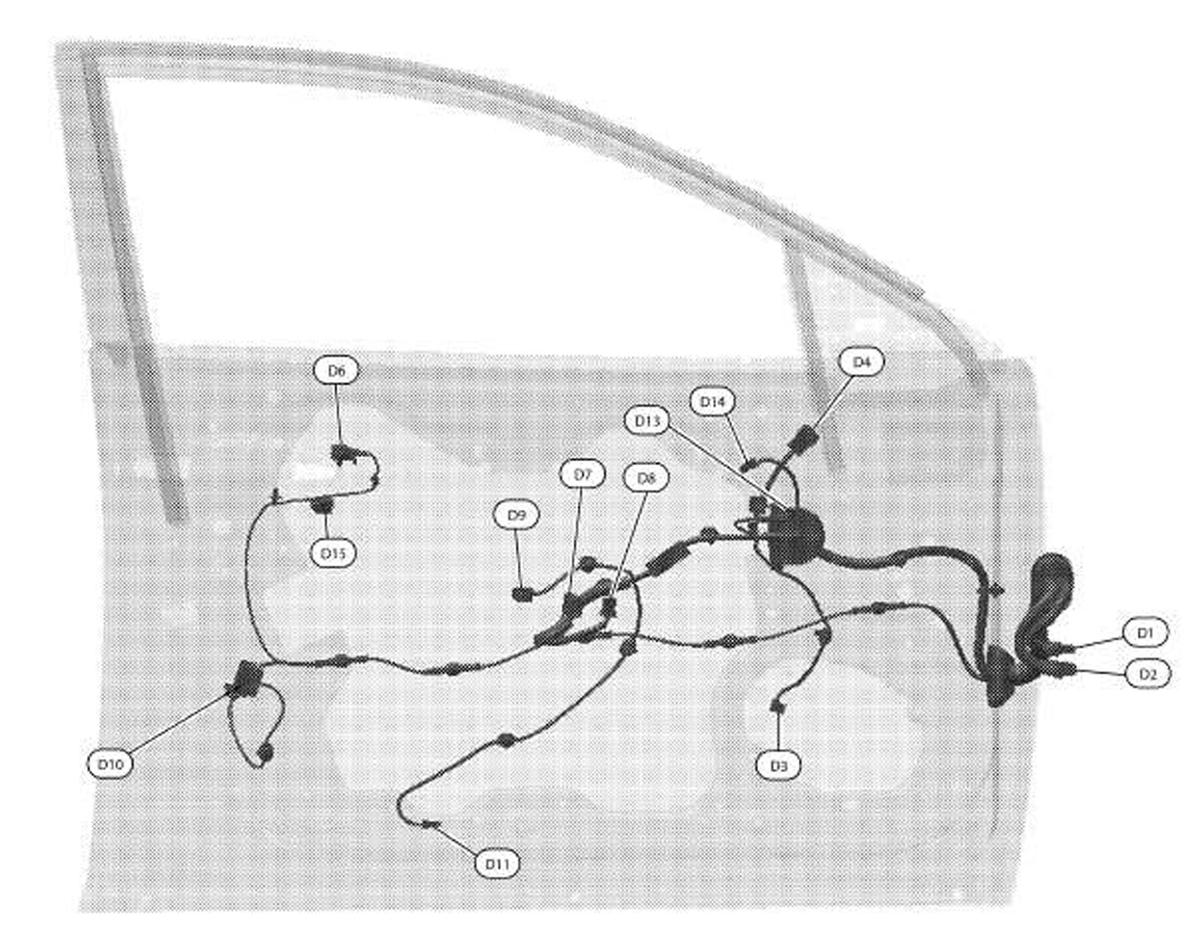

| Outside Key Antenna (Left) (D6) | In driver door handle. See Figure. |

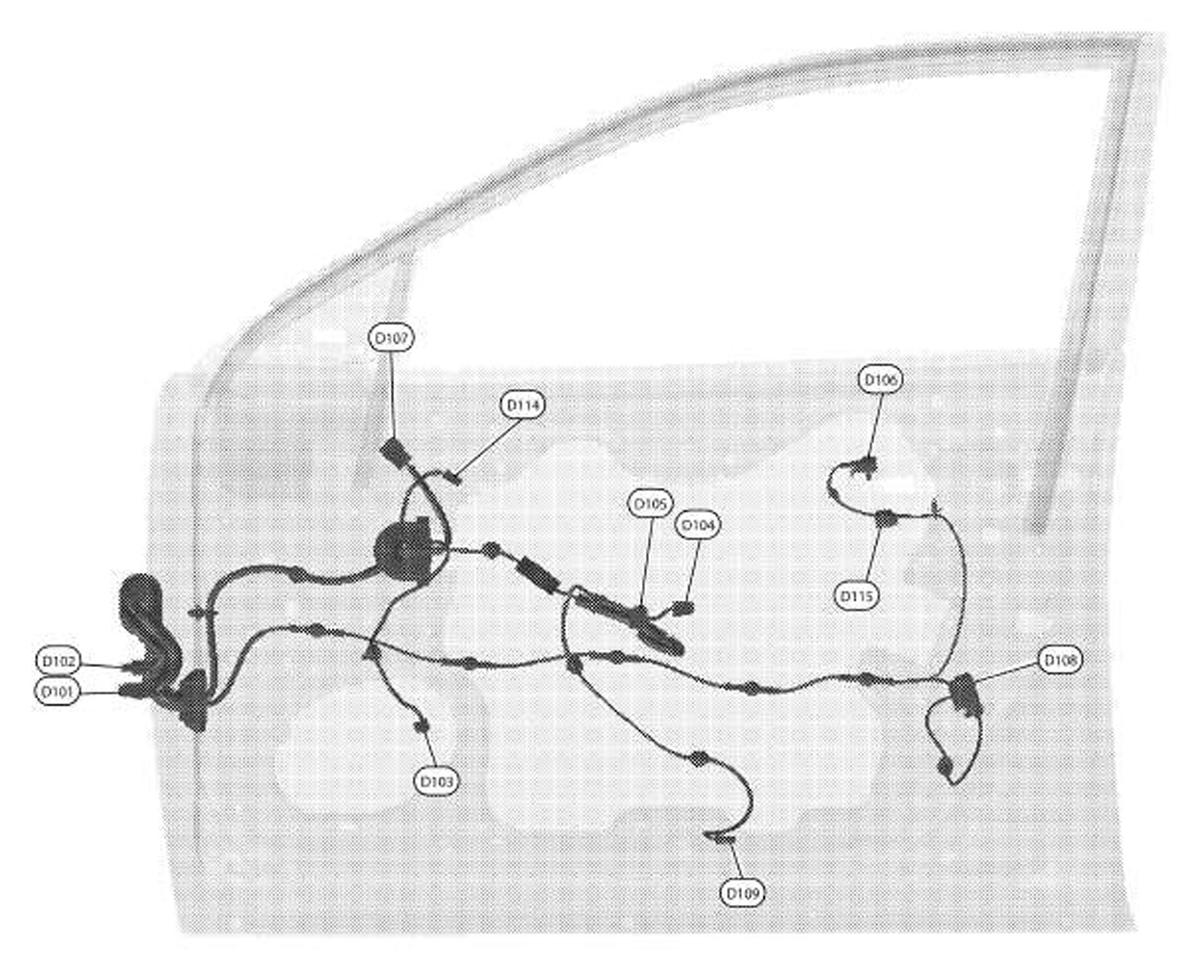

| Outside Key Antenna (Right) (D106) | In front passenger's door handle. See Figure. |
| Rear Bumper Antenna (B46) | Behind center of rear bumper. See Figure. |
| Rear Parcel Shelf Antenna (B29) | Under center of rear parcel shelf. See Figure. |
| Rear Sunshade Unit (B22) | Under rear parcel shelf. See Figure. |
| Rear Window Defogger Condenser (B52) | Left "C" pillar. See Figure. |

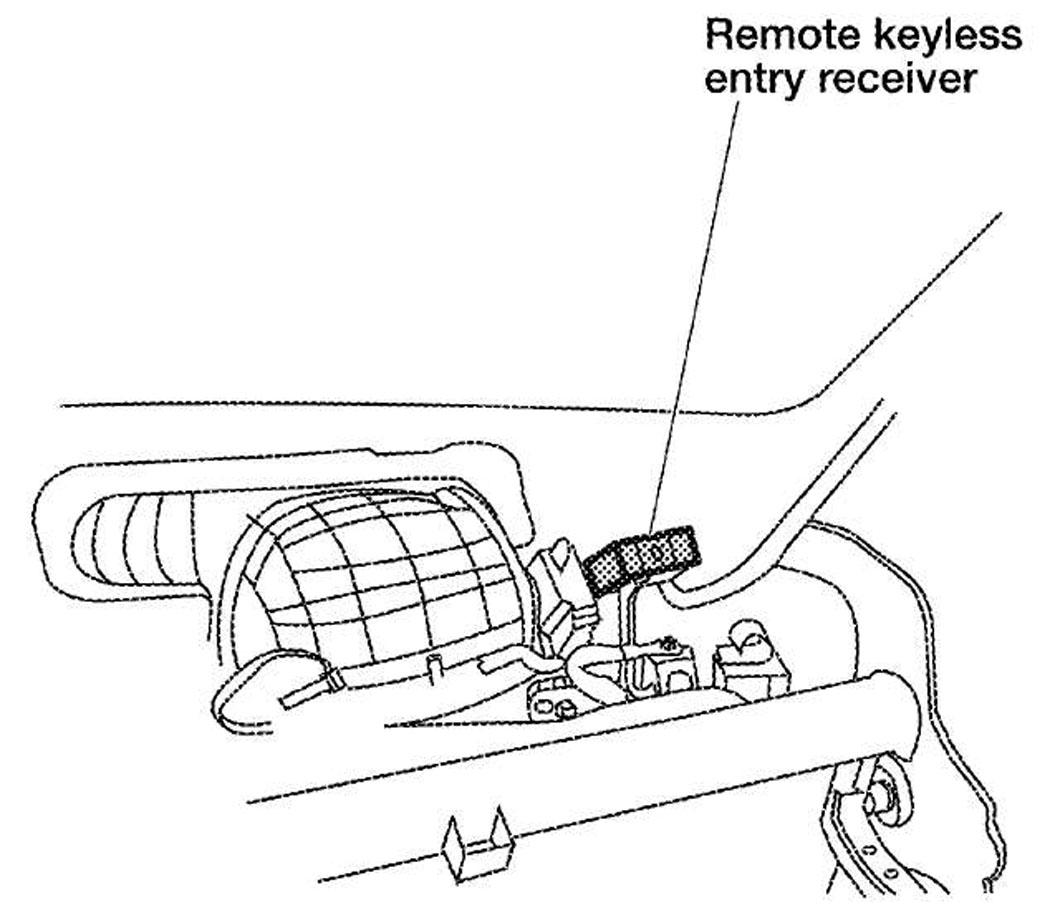

| Remote Keyless Entry Receiver | Behind right end of dash. See Figure. |
| Right Side Curtain Air Bag Module (B141) | Right "C" pillar. See Figure. |
| Satellite Radio Tuner | Under rear parcel shelf. See Figure. |
| SMJ Connector (B1) | Left kick panel. See Figure. |
| SMJ Connector (E30) | Left end of dash. See Figure. |
| SMJ Connector (M1) | Left end of dash. See Figure. |
| SMJ Connector (M6) | Left end of dash. See Figure. |
| Spiral Cable (M26) | In steering column. See Figure. |
| Subwoofer Amplifier (B21) | Right "C" pillar. See Figure. |
| Tire Pressure Receiver (M70) | Left center of dash. See Figure. |
| Tire Pressure Warning Check Connector (M62) | Left side of dash. See Figure. |
