Front Seat Belt
>>
Exploded View
Exploded View

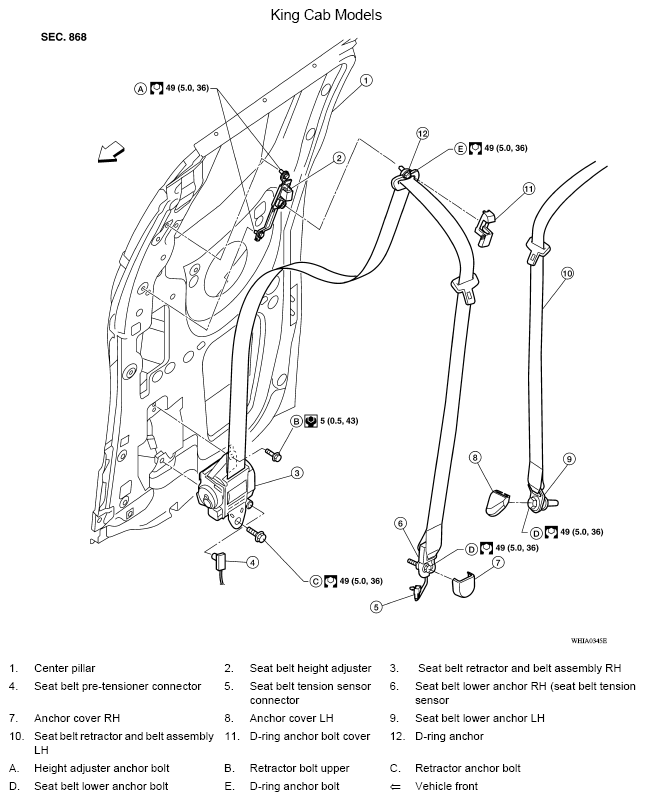

Fig 1: Exploded View Of Front Seat Belt - King Cab Models
Courtesy of NISSAN MOTOR CO., U.S.A.

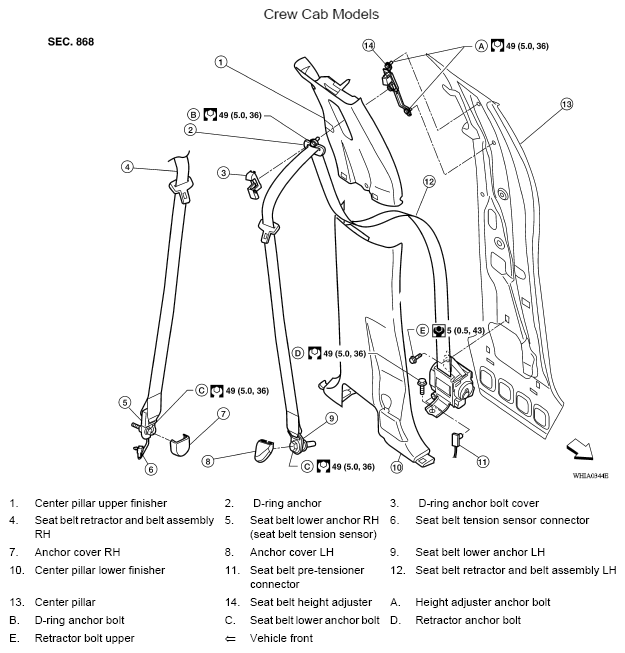

Fig 2: Exploded View Of Front Seat Belt - Crew Cab Models
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
