Exploded View

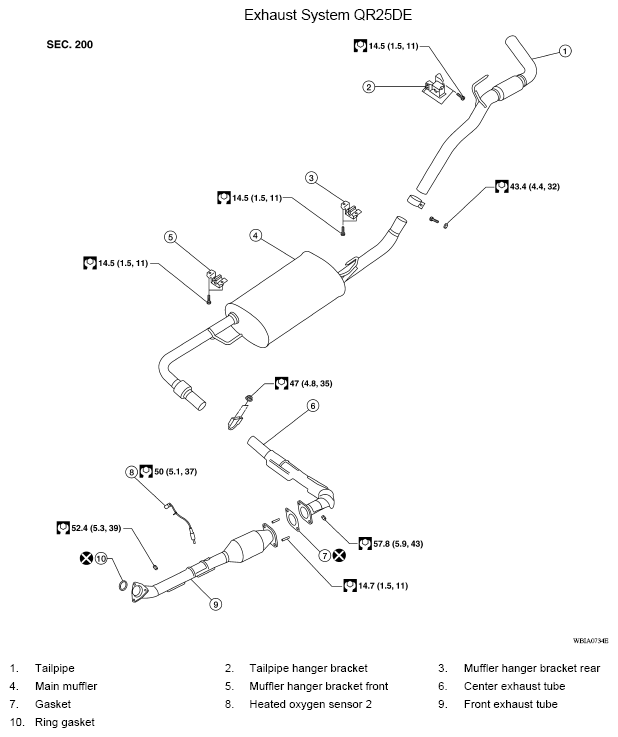

Fig 1: Identifying Exhaust System Components (QR25DE)

G05882145

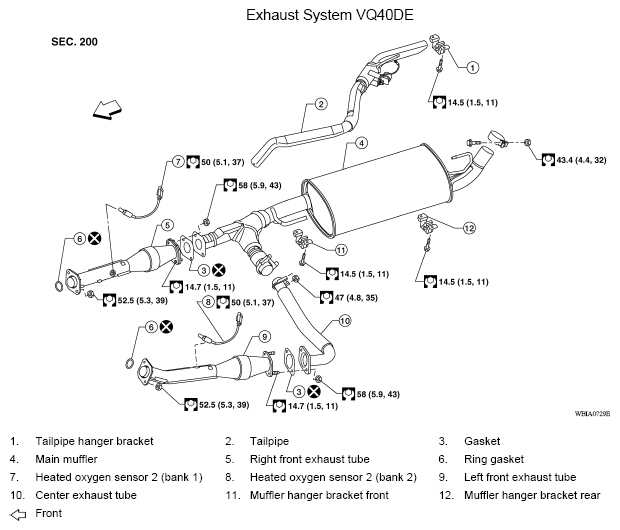

Fig 2: Identifying Exhaust System Components (VQ40DE)

G05882146
