Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

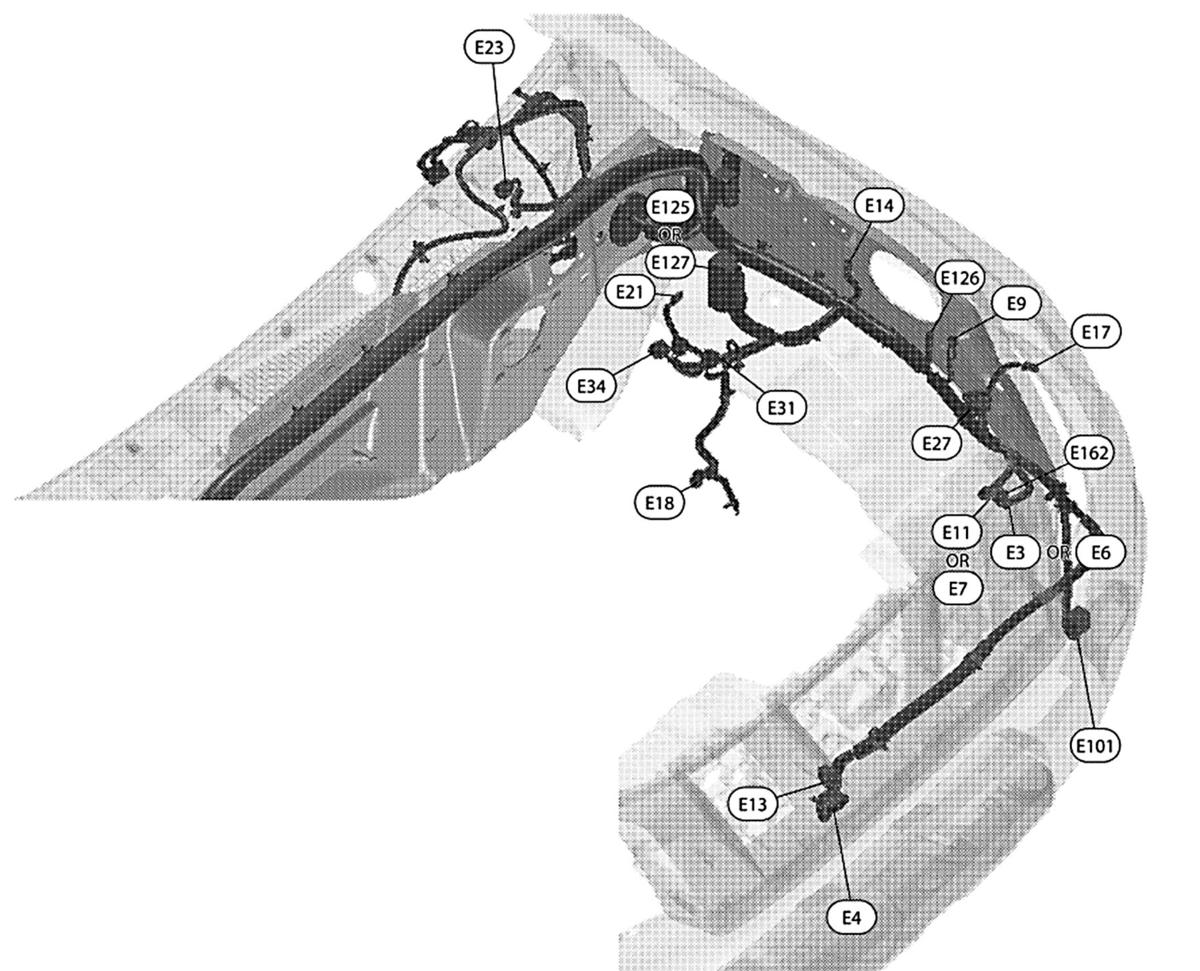

| ABS Actuator & Electric Unit (E125 Or E127) | Left rear corner of engine compartment. See Figure. |

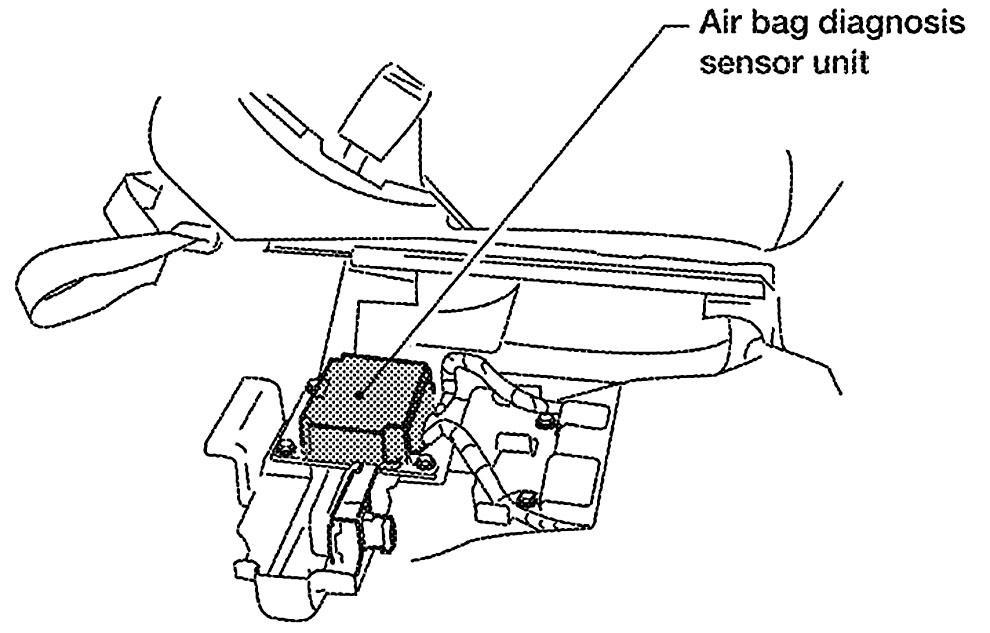

| Air Bag Diagnosis Sensor Unit | Under center console. See Figure. |
| A/T Device (M156) | In center console. See Figure. |

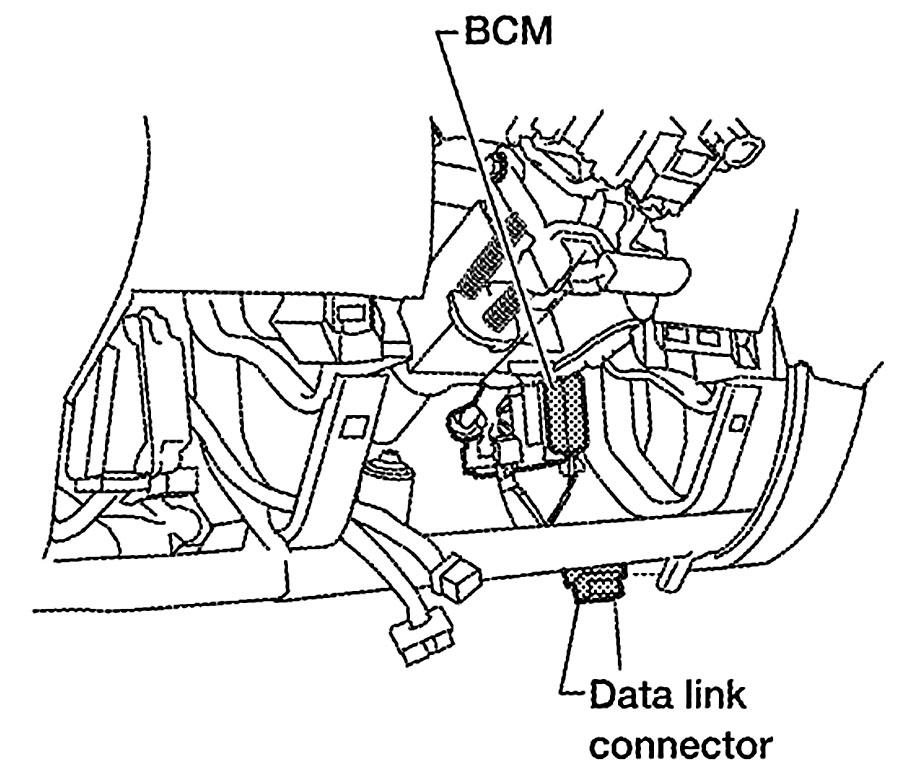

| BCM | Left front of center console. See Figure. |

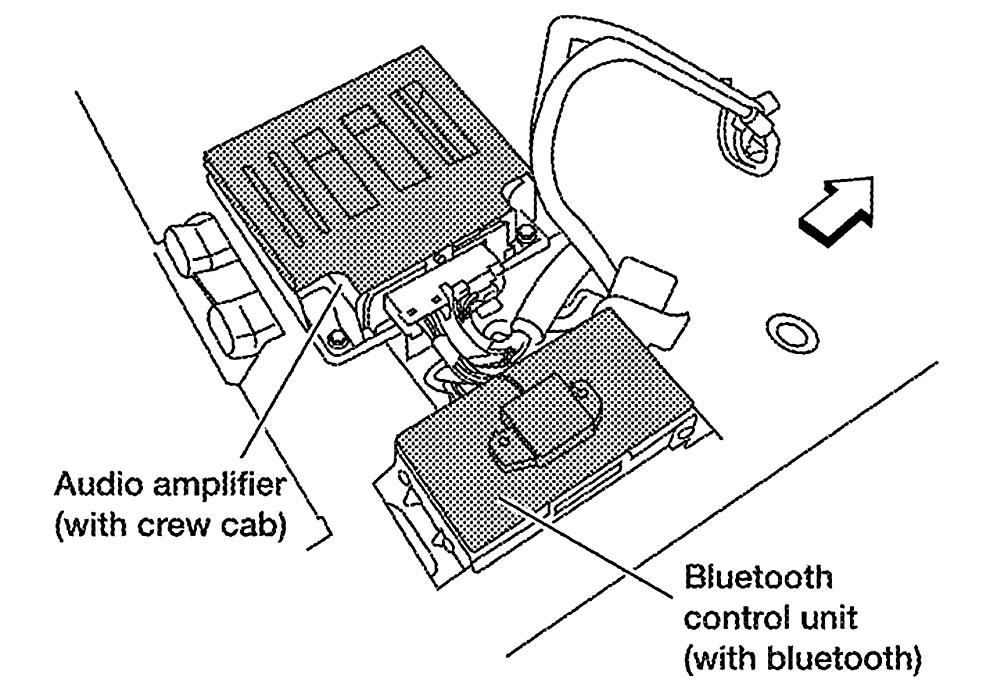

| Bluetooth Control Unit | Under right front seat. See Figure. |
| Engine Control Module (ECM) | Right rear of engine compartment. See Figure. |

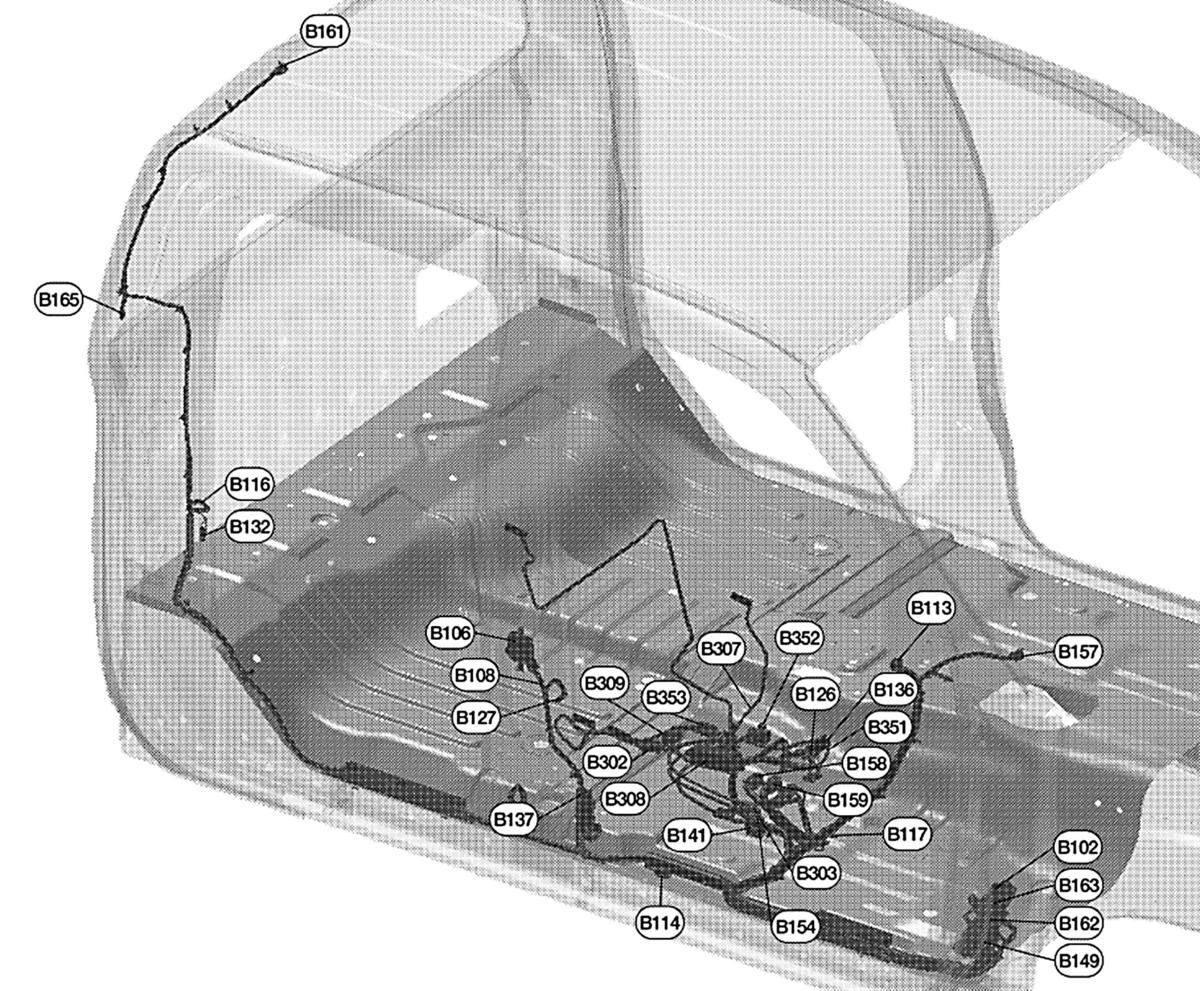

| Occupant Classification System Control Unit (Crew Cab) (B352) | Under right front seat. See Figure. |

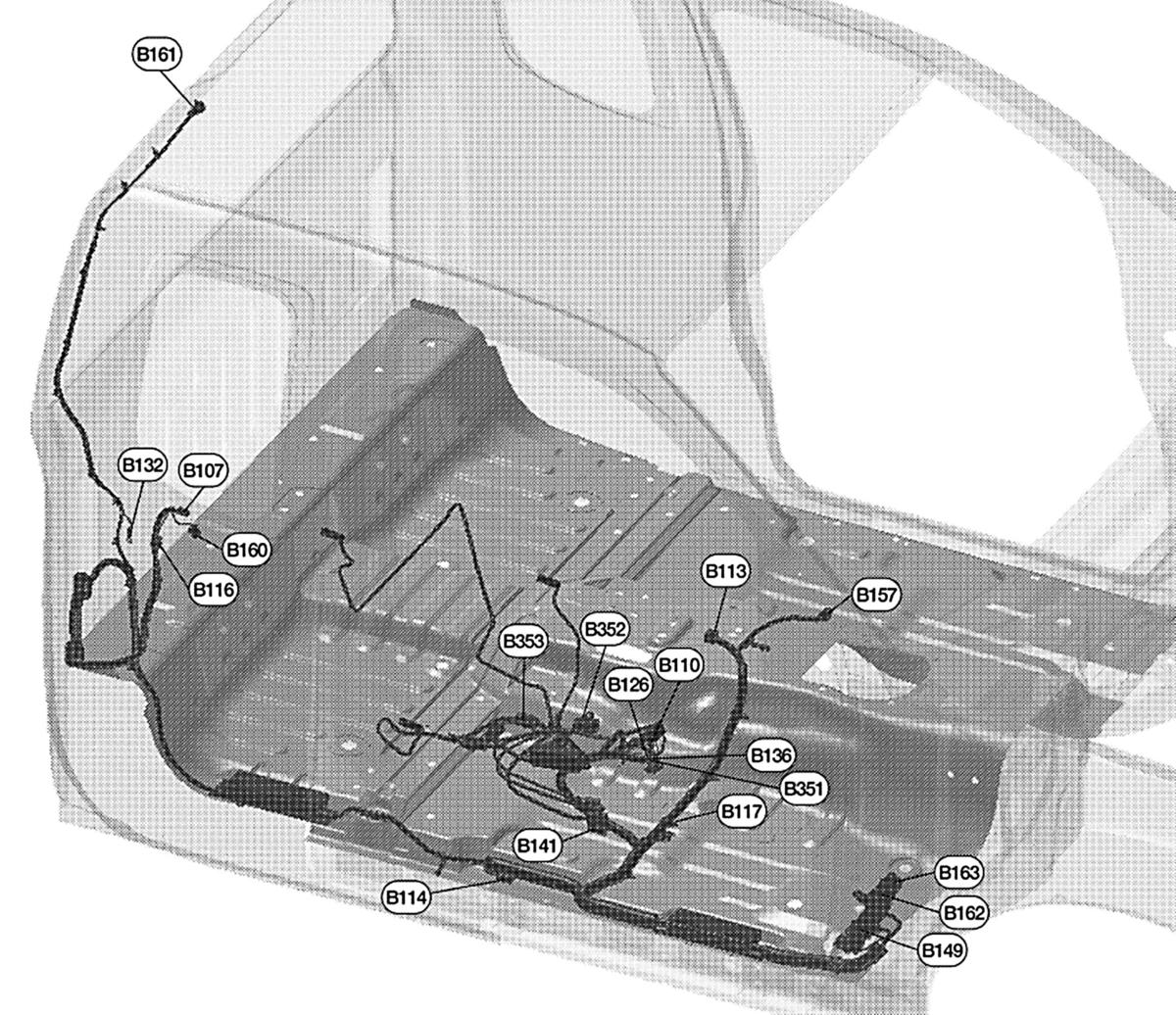

| Occupant Classification System Control Unit (King Cab) (B352) | Under right front seat. See Figure. |

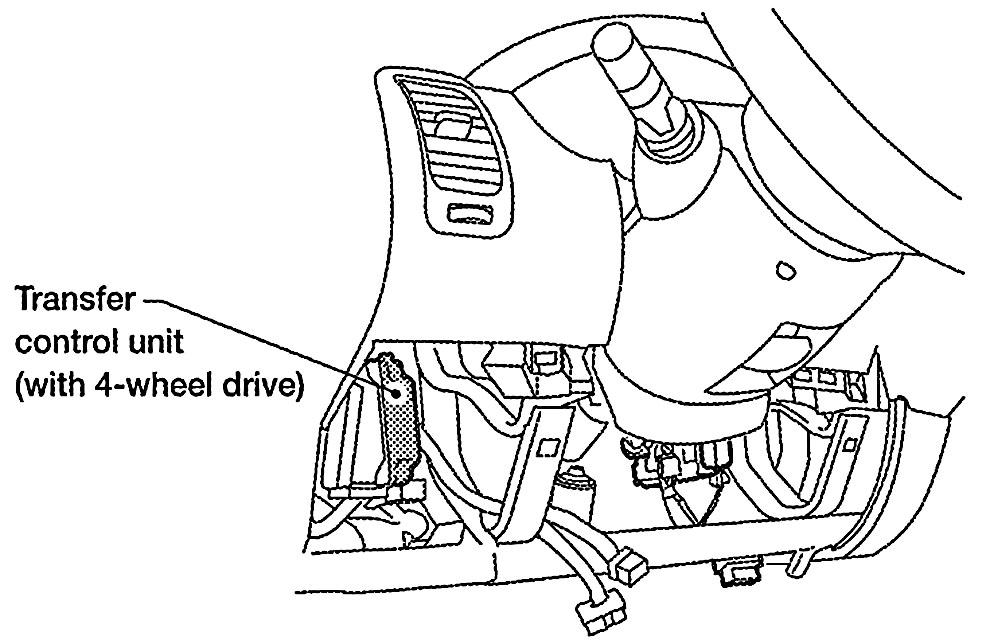

| Transfer Case Control Unit | Behind left side of dash. See Figure. |
| Variable Blower Control (M121) | Behind right side of dash. See Figure. |
