Nissan-Datsun
>>
2009
>>
Frontier XE
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System
>>
Function Diagnosis
>>
Power Consumption Control System
>>
Component Parts Location
Component Parts Location

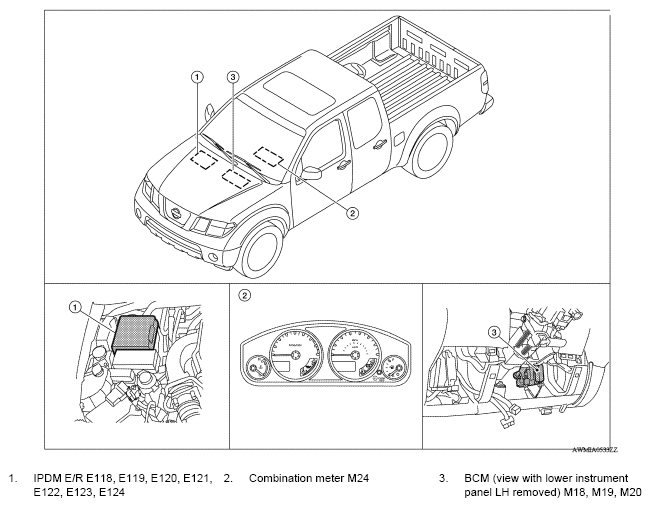

Fig 1: Identifying Power Consumption Control System Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
