Removal and Installation: Removal

  1. Remove the power window main switch finisher (2) from the front door finisher LH. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the three screws (A) from the power window main switch (1), then separate from the finisher (2).

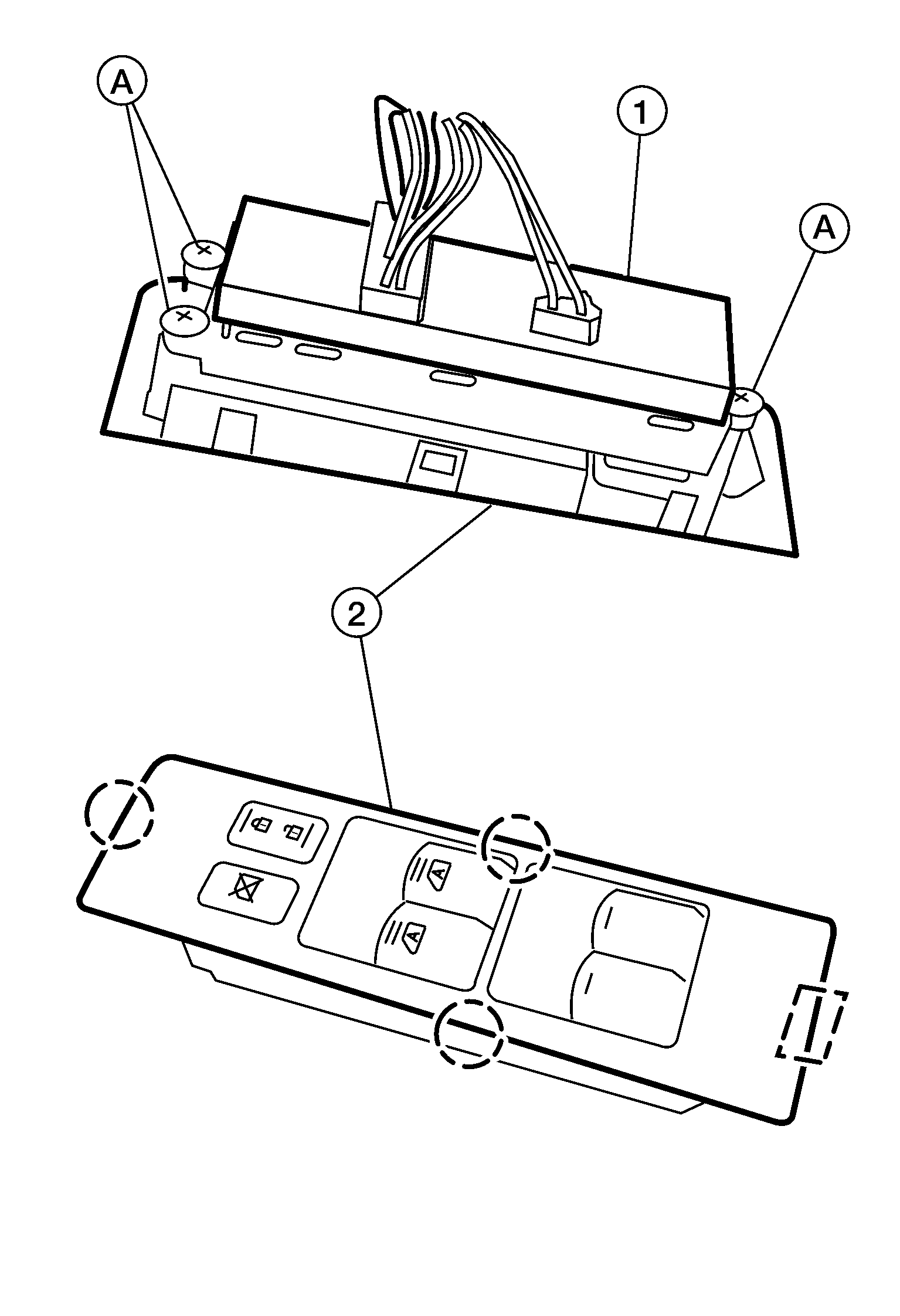

    Fig 1: Identifying Power Window Main Switch And Screws
    G05704438Courtesy of NISSAN MOTOR CO., U.S.A.
