Removal and Installation: Removal

  1. Remove the front power window switch finisher (2) from the front door finisher RH. Refer to "REMOVAL AND INSTALLATION ".
  2. Release the four tabs (A), two on each side, then separate the front power window switch (1) from the finisher (2).

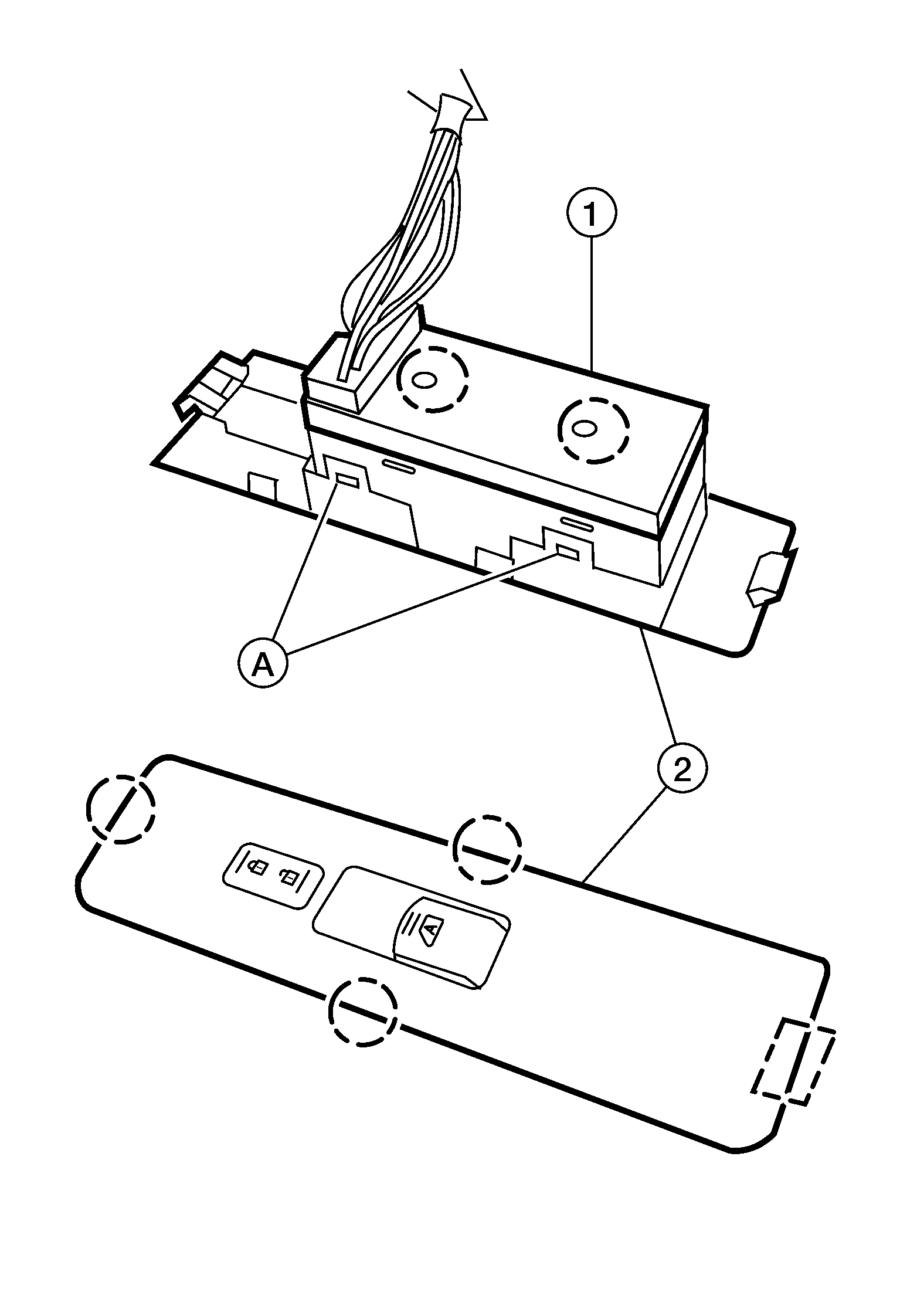

    Fig 1: Identifying Front Power Window Switch Tabs And Finisher
    G05704439Courtesy of NISSAN MOTOR CO., U.S.A.
