Front Drive Shaft
>>
Exploded View
>>
Left Side
Left Side

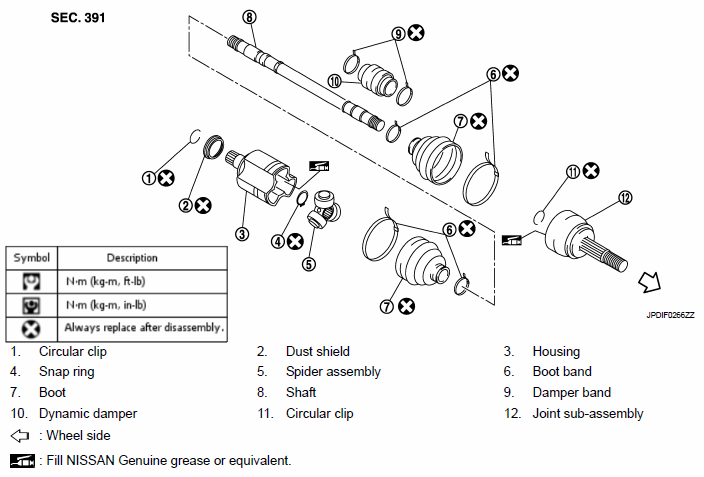

Fig 1: Exploded View Of Front Drive Shaft (Left Side)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described on the above.
