Right Side

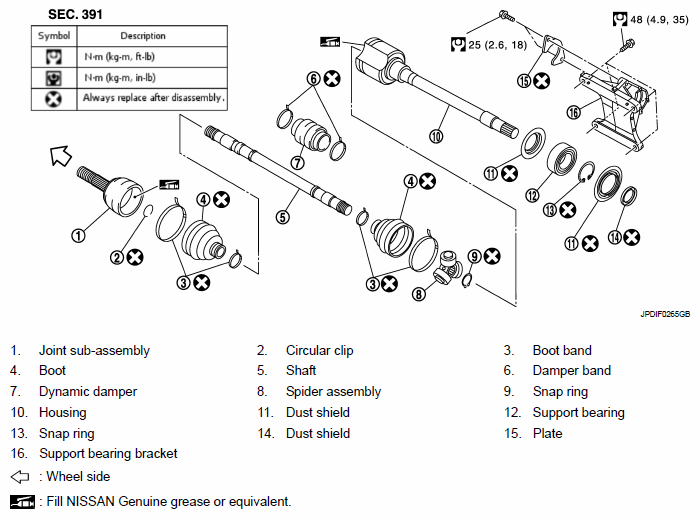

Fig 1: Exploded View Of Front Drive Shaft Boot (Right Side) With Torque Specifications
G05915119Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
