Exploded View

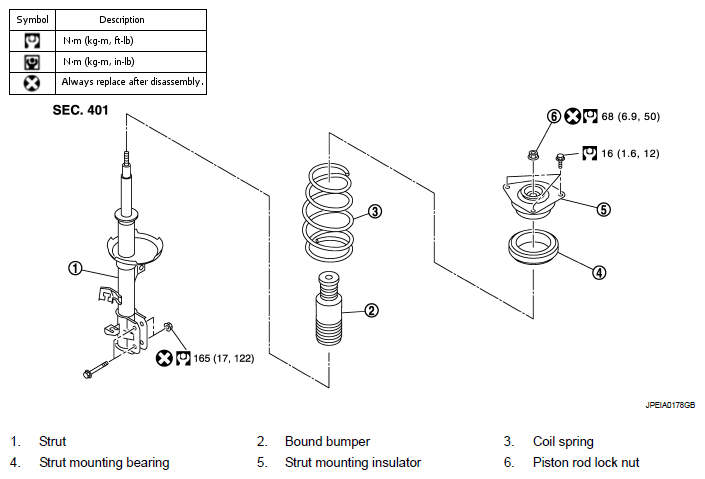

Fig 1: Exploded View Of Front Coil Spring And Strut With Torque Specifications

G05915166

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
