Exploded View

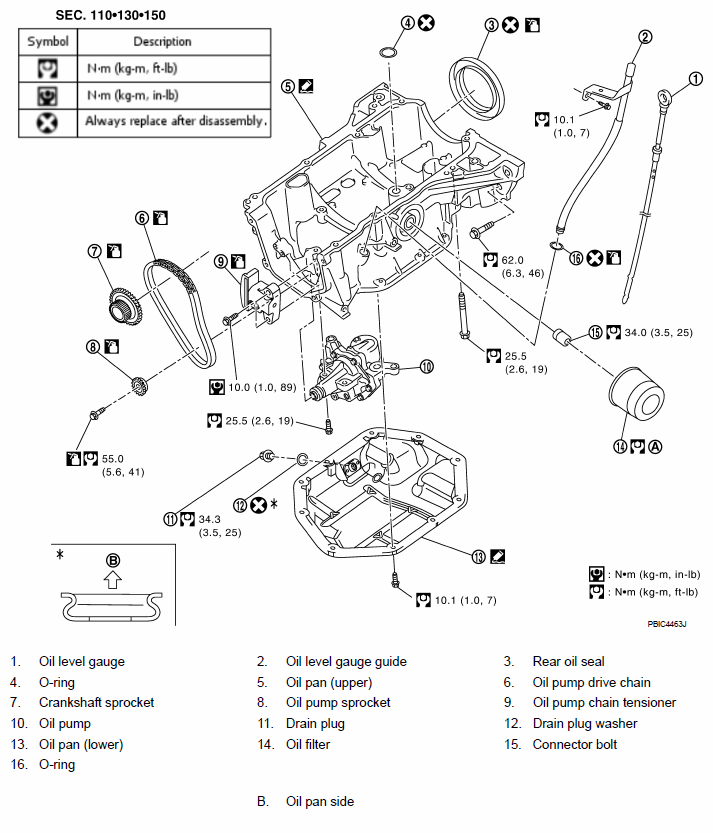

Fig 1: Exploded View Of Oil Pump With Torque Specification

Courtesy of NISSAN MOTOR CO., U.S.A.

A: Tightening must be done following the installation procedure. Refer to INSTALLATION .

Refer to "COMPONENTS " for symbols in the figure.
