Component Parts Location

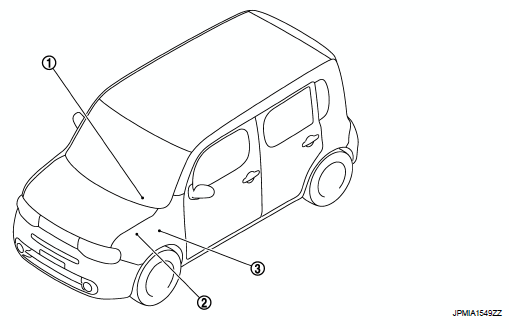

Fig 1: Identifying Power Consumption Control System Component Parts Location

G05917713

Courtesy of NISSAN MOTOR CO., U.S.A.

POWER CONSUMPTION CONTROL SYSTEM COMPONENT PARTS LOCATION TABLE

1.

Combination meter

2.

IPDM E/R. Refer to COMPONENT PARTS LOCATION

3.

BCM. Refer to COMPONENT PARTS LOCATION
