Front Regulator
>>
Exploded View
Exploded View

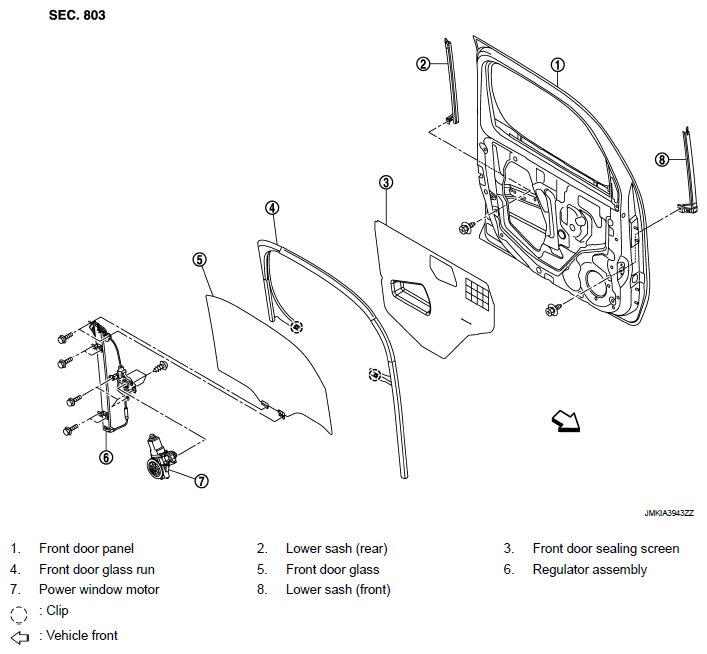

Fig 1: Identifying Front Regulator Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
