Exploded View: Disassembly

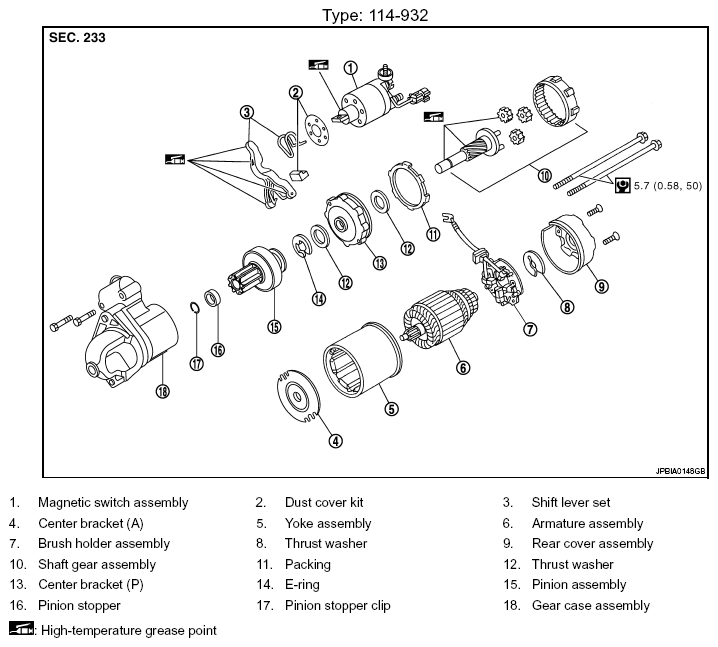

Fig 1: Exploded View Of Starter Motor Components With Torque Specification (2 Of 2)
G06078533Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
