Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

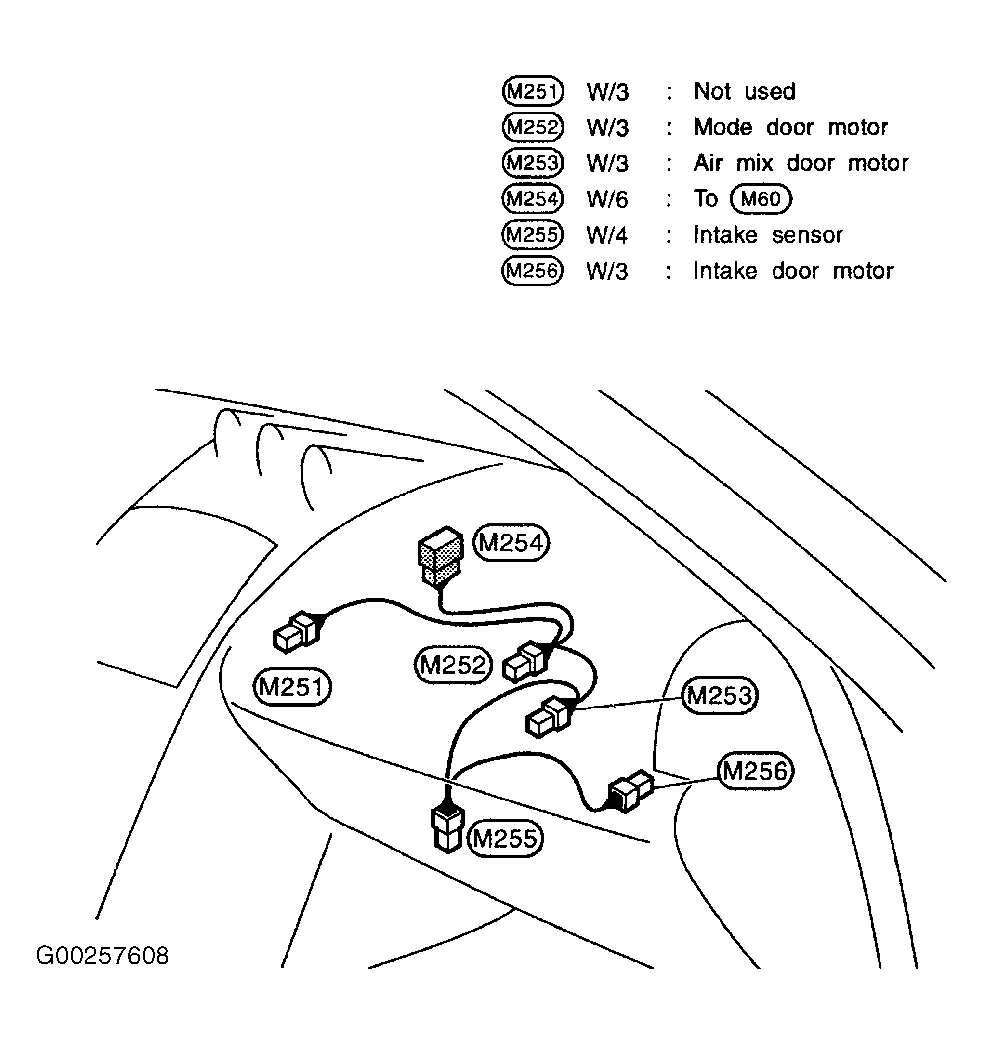

Fig 1: Right Side Of Dash (350Z)

G00257608

Courtesy of NISSAN MOTOR CO., U.S.A.

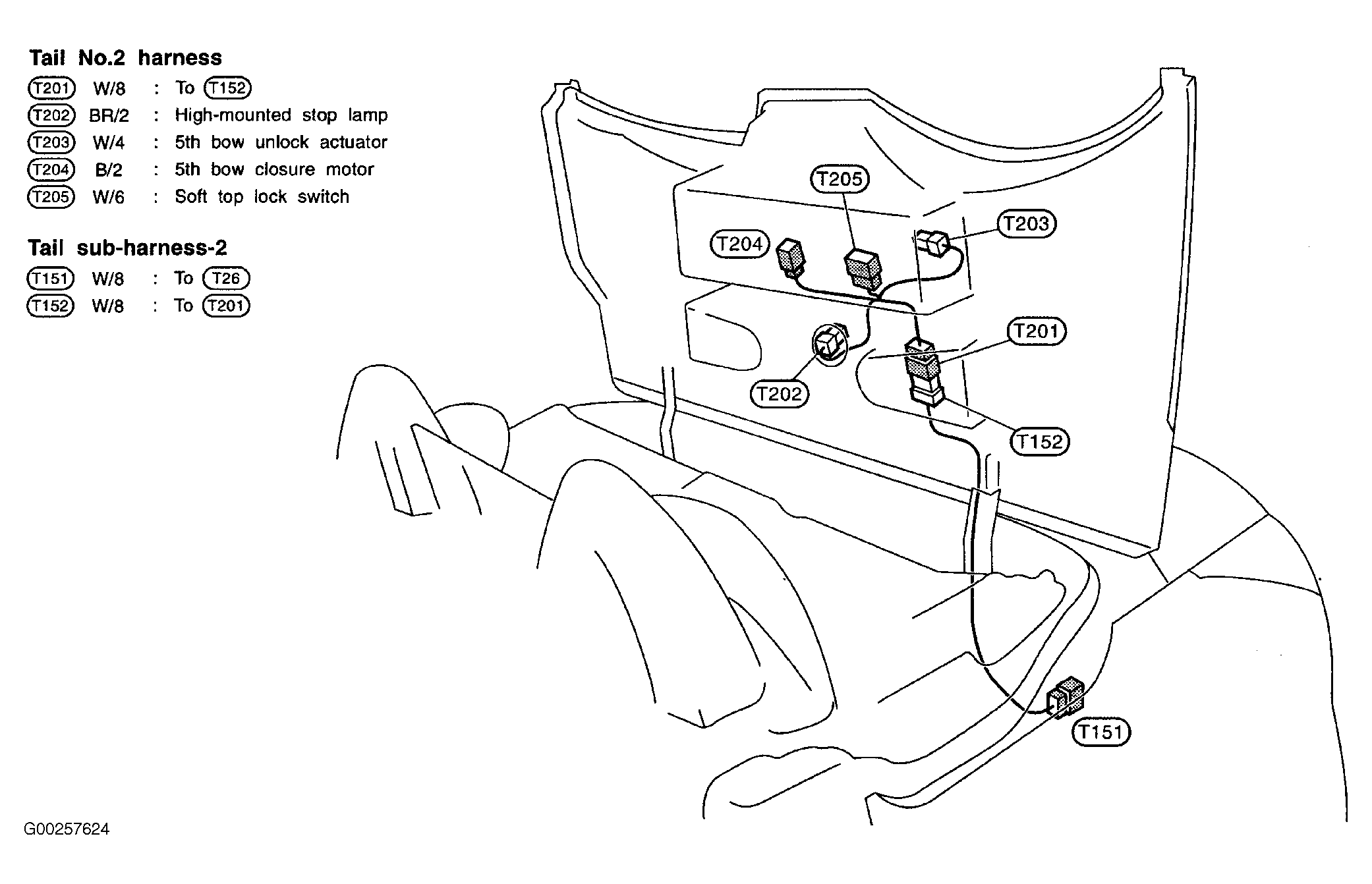

Fig 2: Rear Compartment (Roadster)

G00257624

Courtesy of NISSAN MOTOR CO., U.S.A.

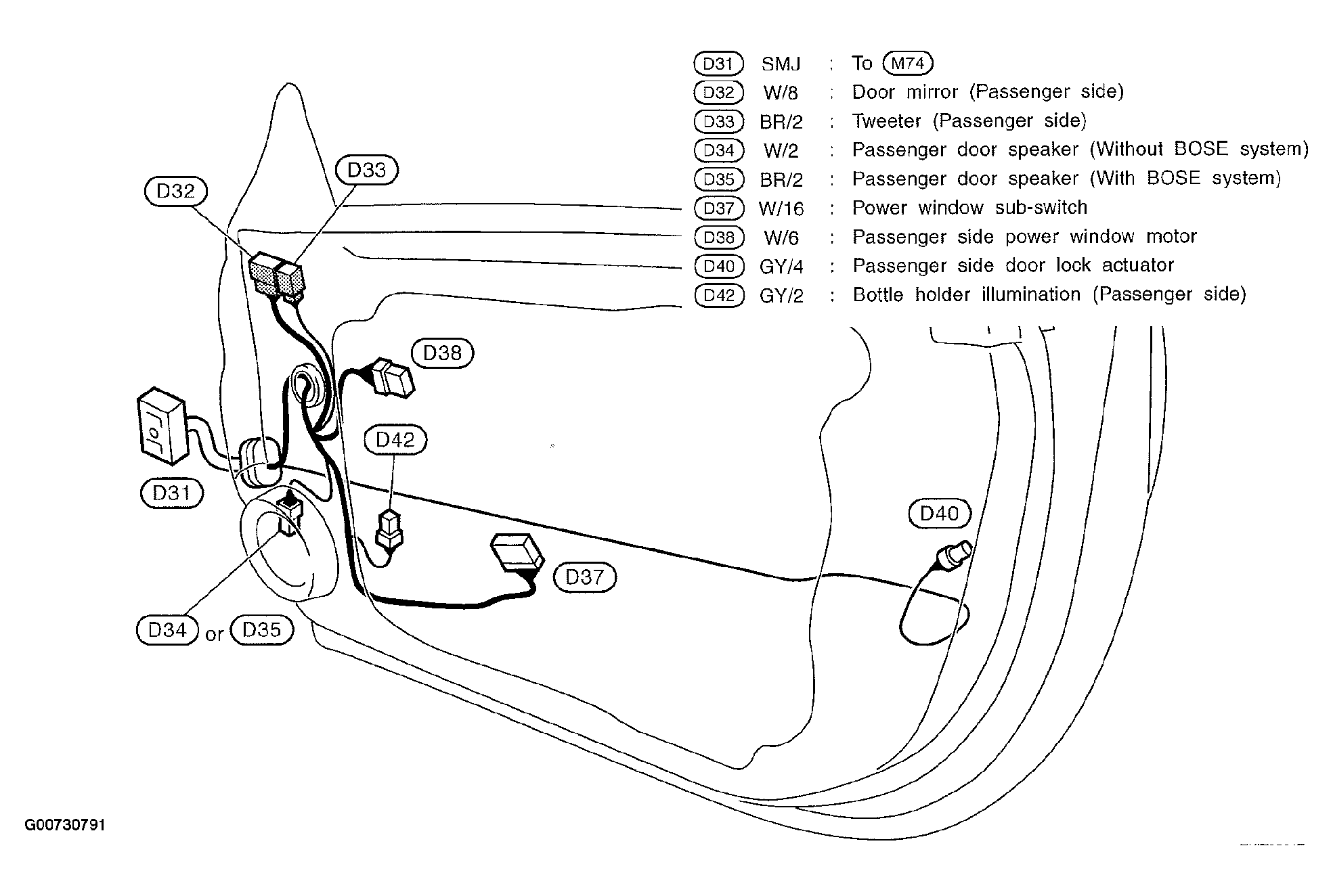

Fig 3: Passenger Side Door (350Z)

G00430791

Courtesy of NISSAN MOTOR CO., U.S.A.

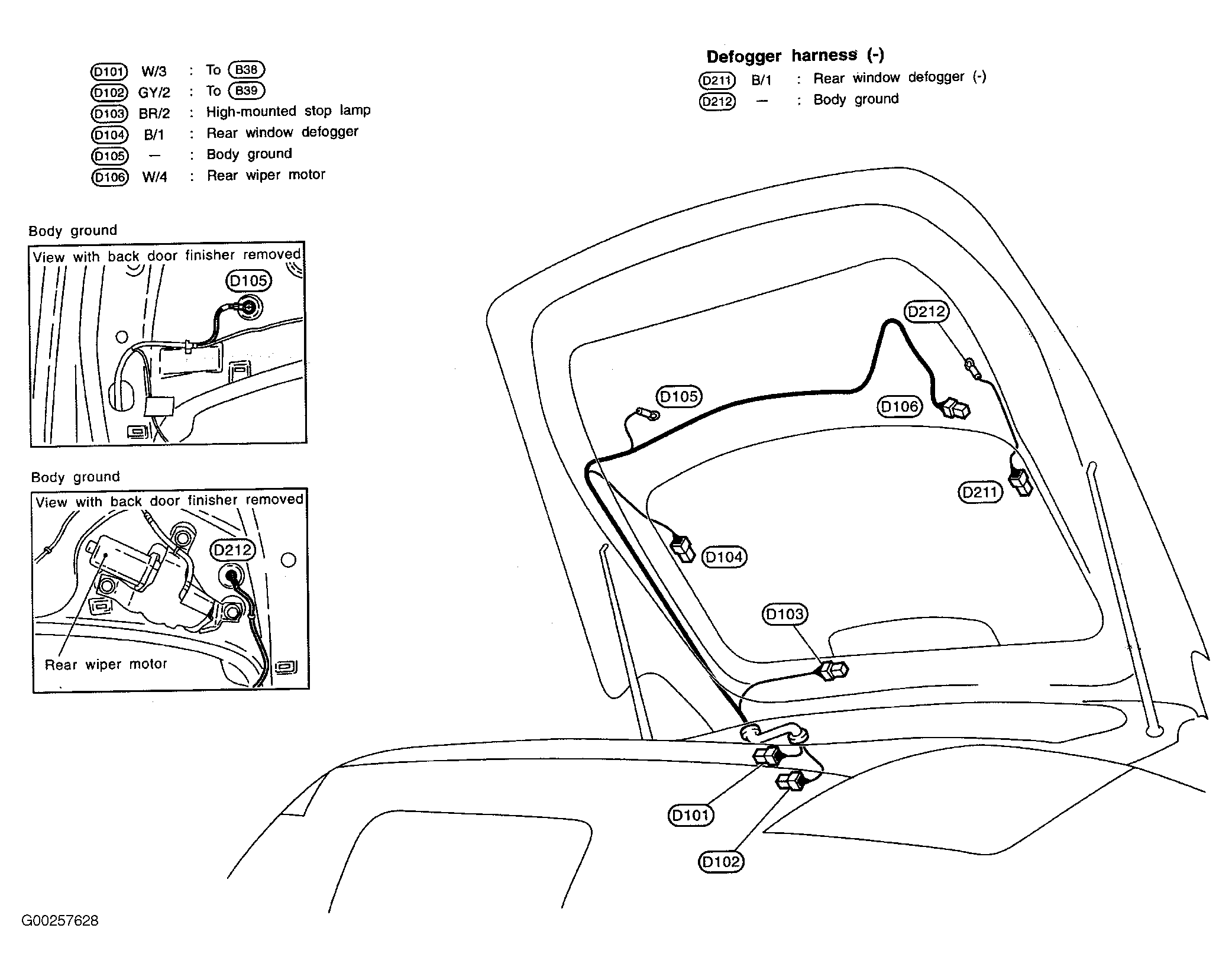

Fig 4: Back Door (Coupe) (350Z)

G00257628

Courtesy of NISSAN MOTOR CO., U.S.A.

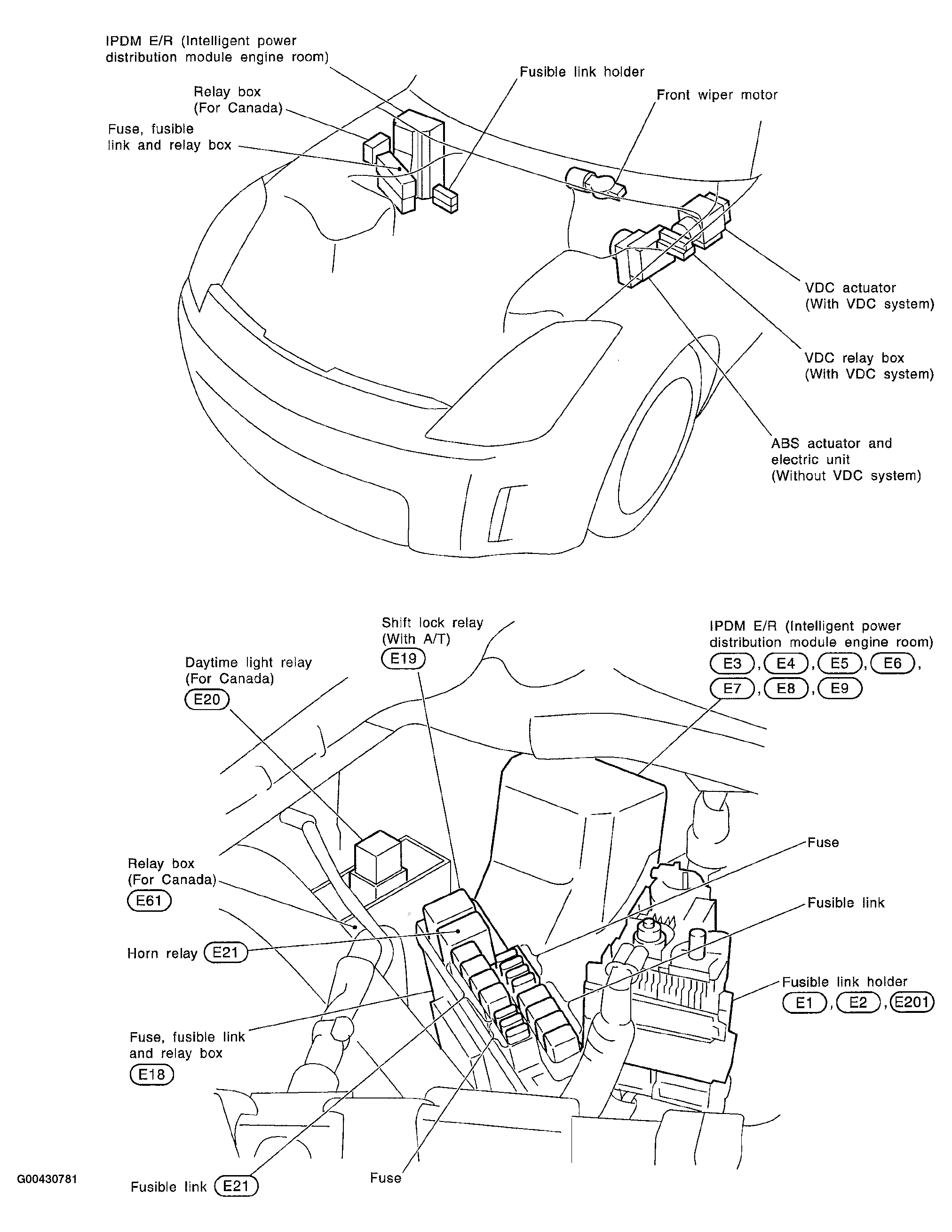

Fig 5: Engine Compartment (350Z)

G00430781

Courtesy of NISSAN MOTOR CO., U.S.A.

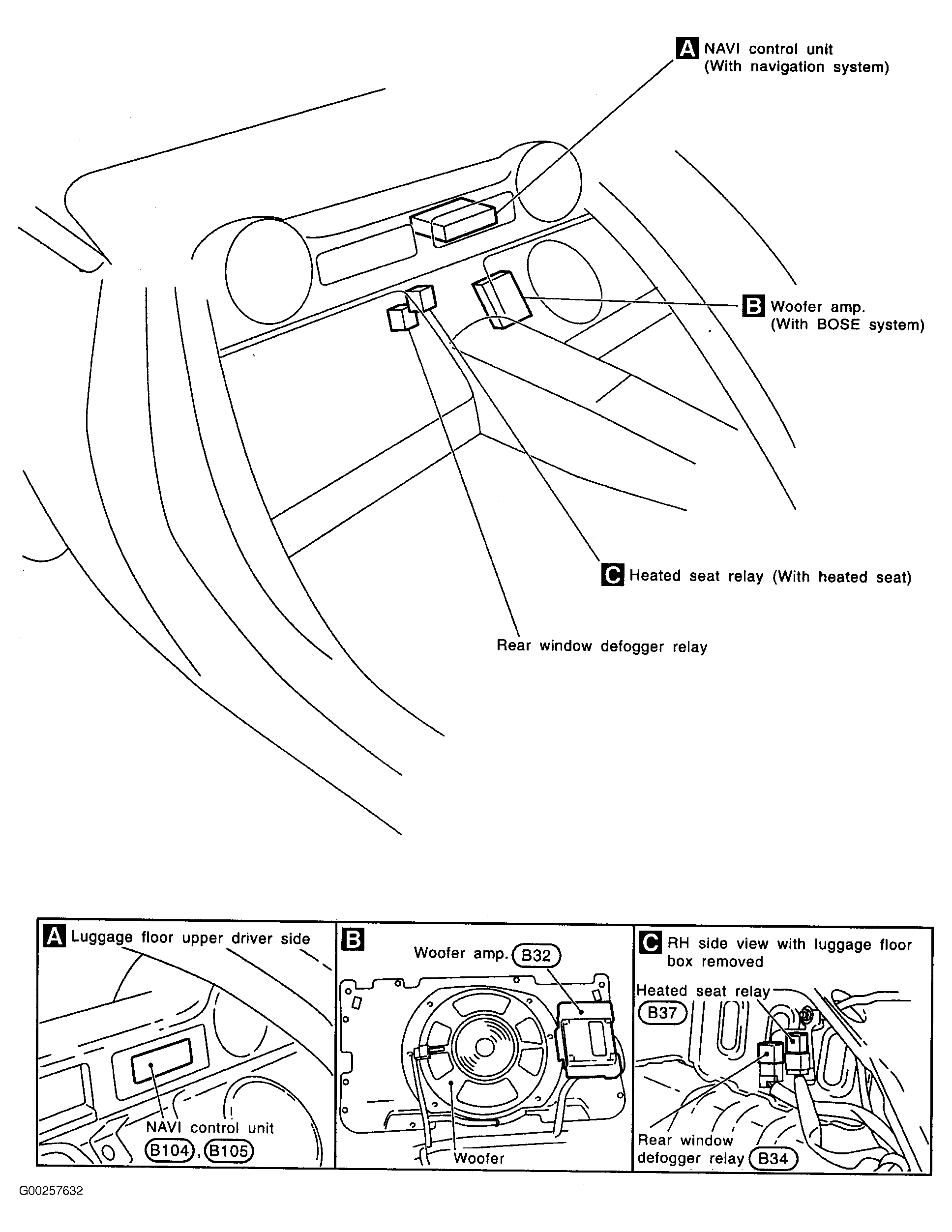

Fig 6: Rear Of Passenger Compartment (350Z)

G00257632

Courtesy of NISSAN MOTOR CO., U.S.A.

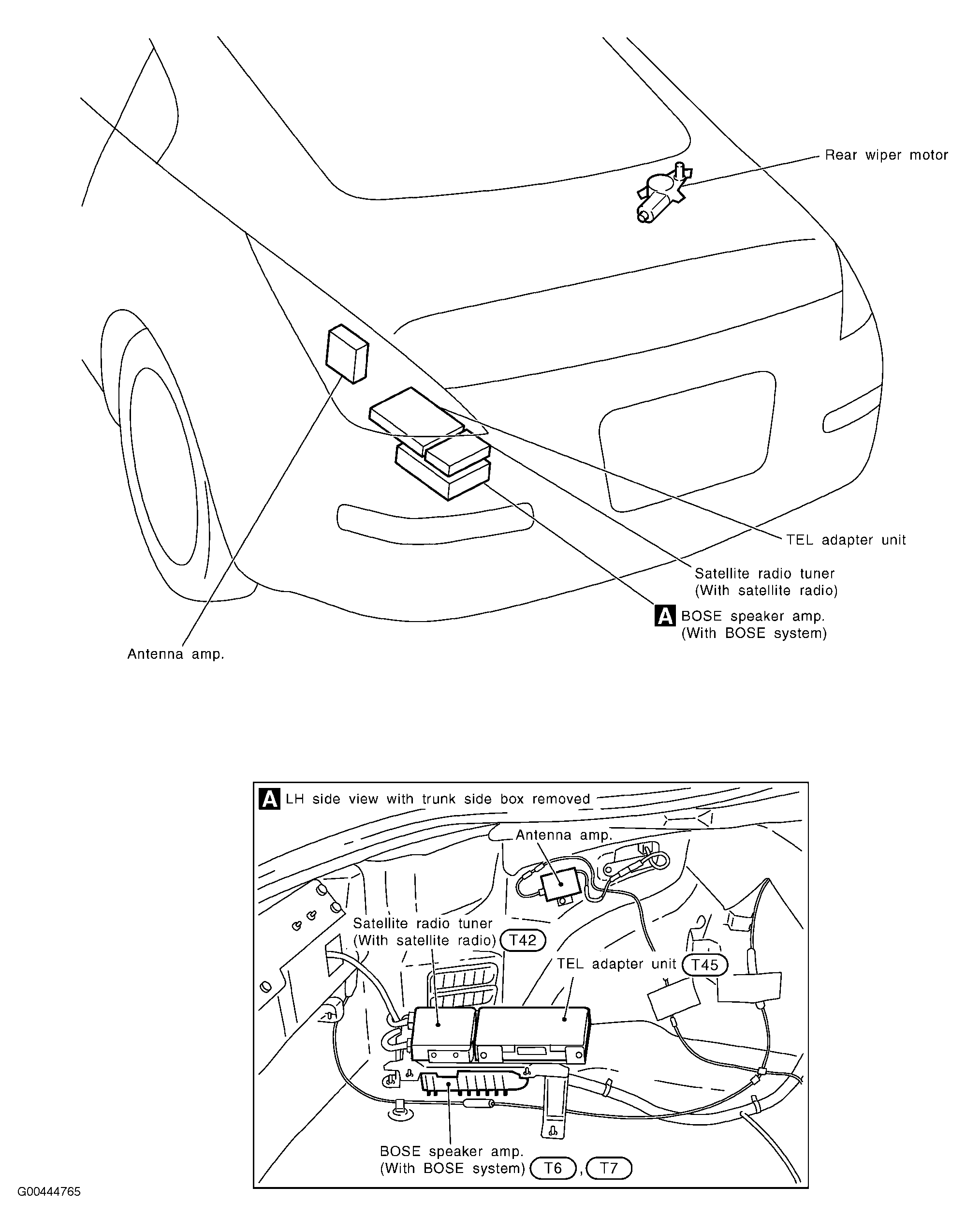

Fig 7: Rear Compartment (Coupe) (350Z)

G00444765

Courtesy of NISSAN MOTOR CO., U.S.A.

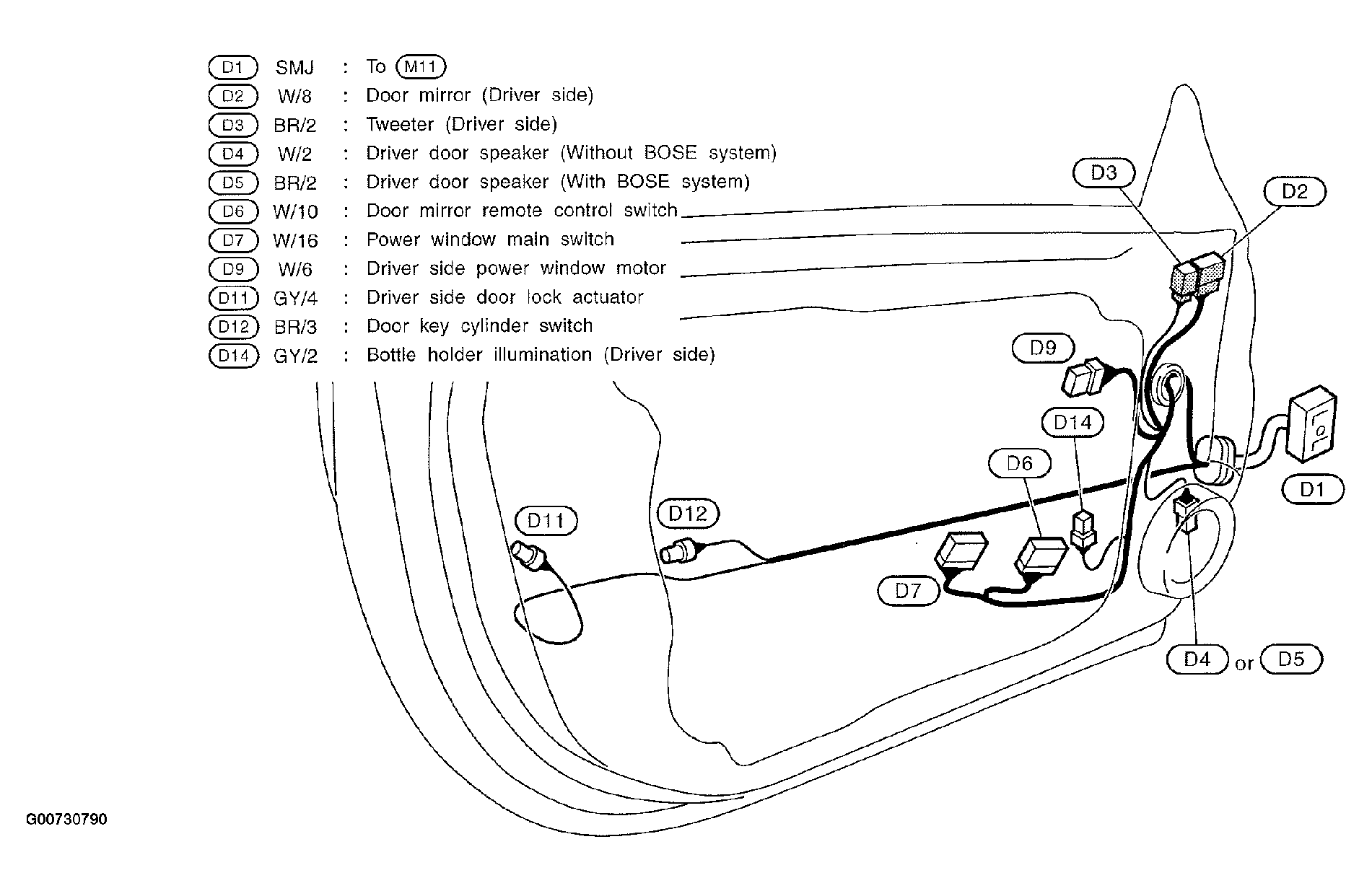

Fig 8: Driver Door (350Z)

G00430790

Courtesy of NISSAN MOTOR CO., U.S.A.

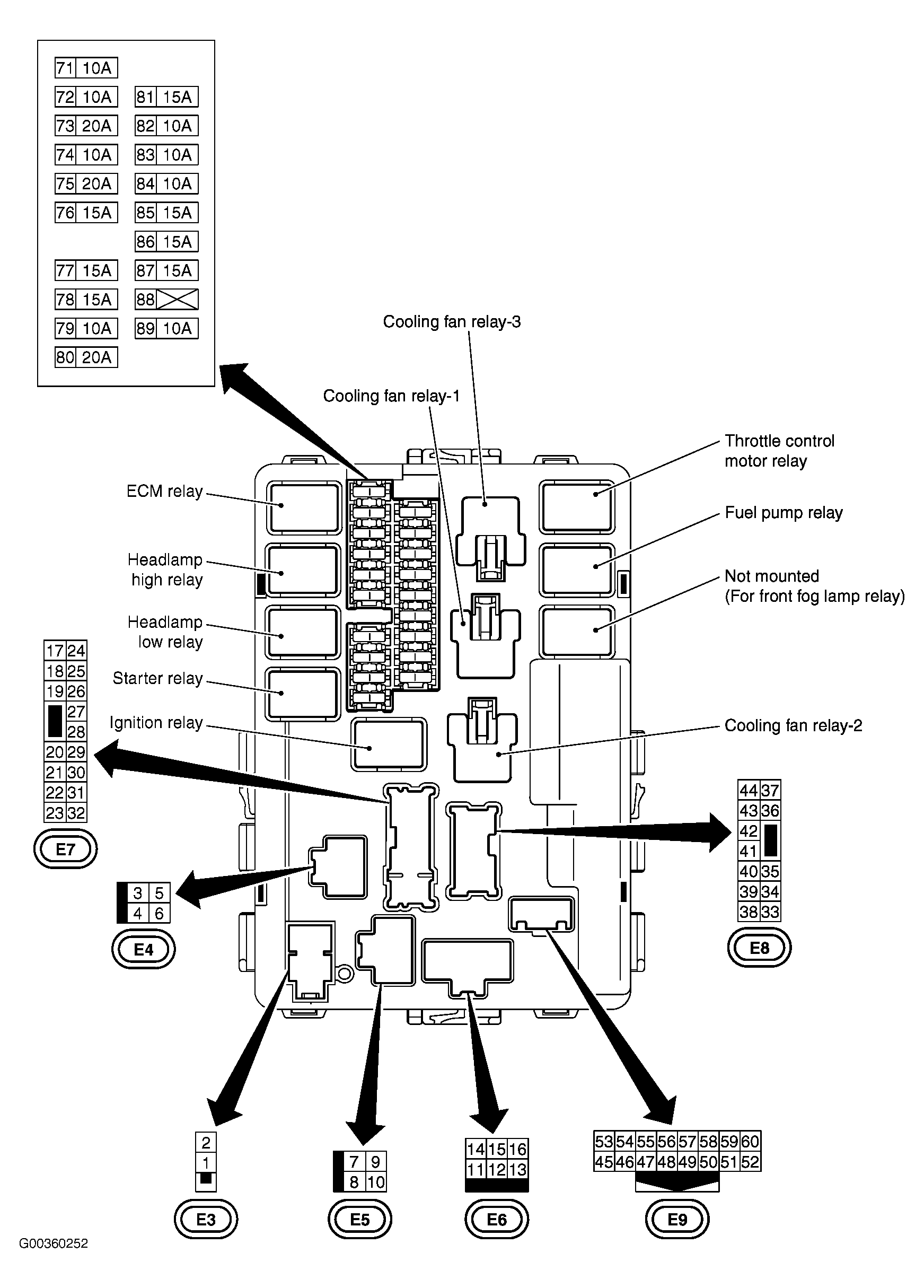

Fig 9: Intelligent Power Distribution Module Engine Room

G00360252

Courtesy of NISSAN MOTOR CO., U.S.A.

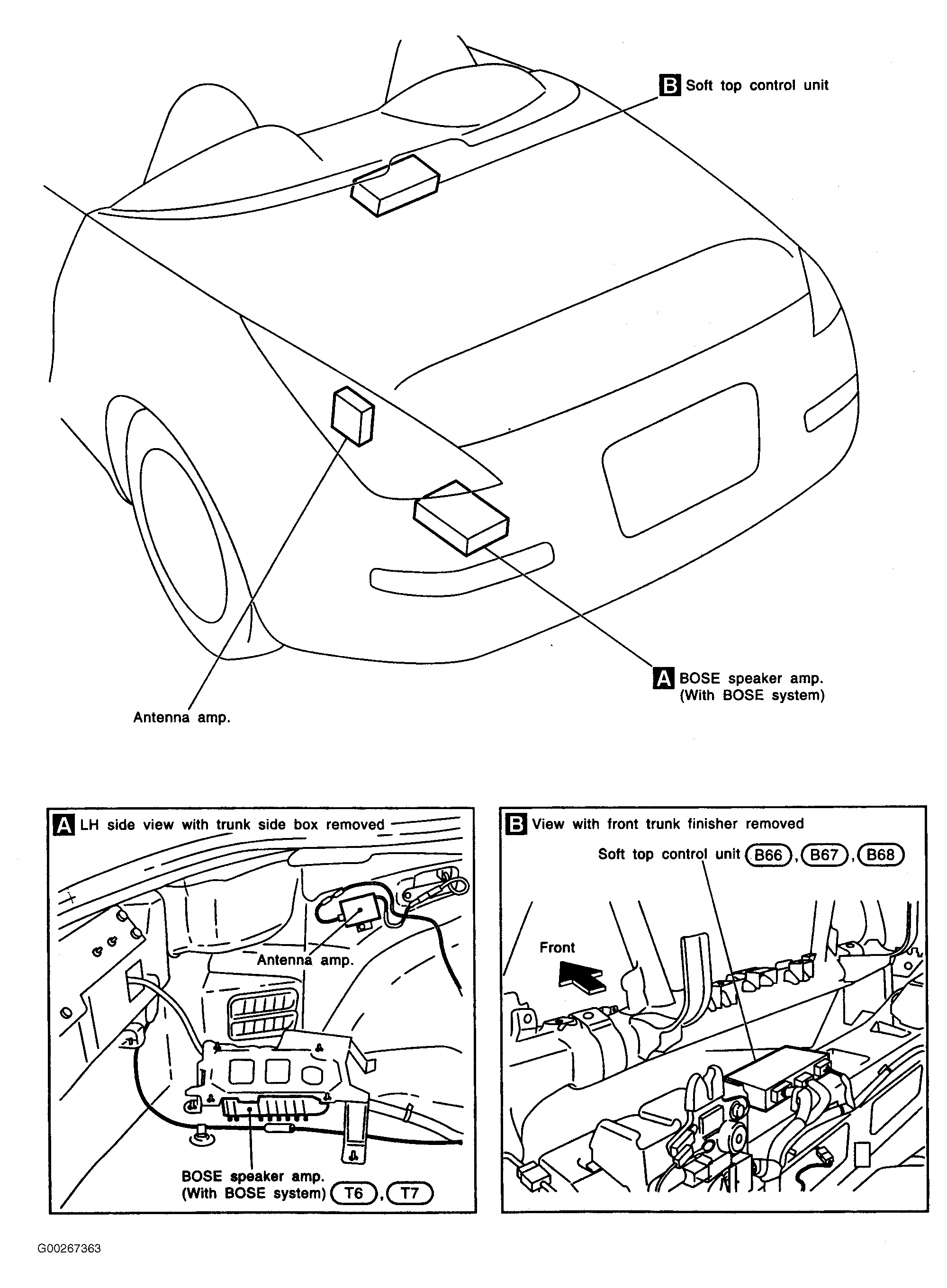

Fig 10: Rear Compartment (Roadster)

G00267363

Courtesy of NISSAN MOTOR CO., U.S.A.

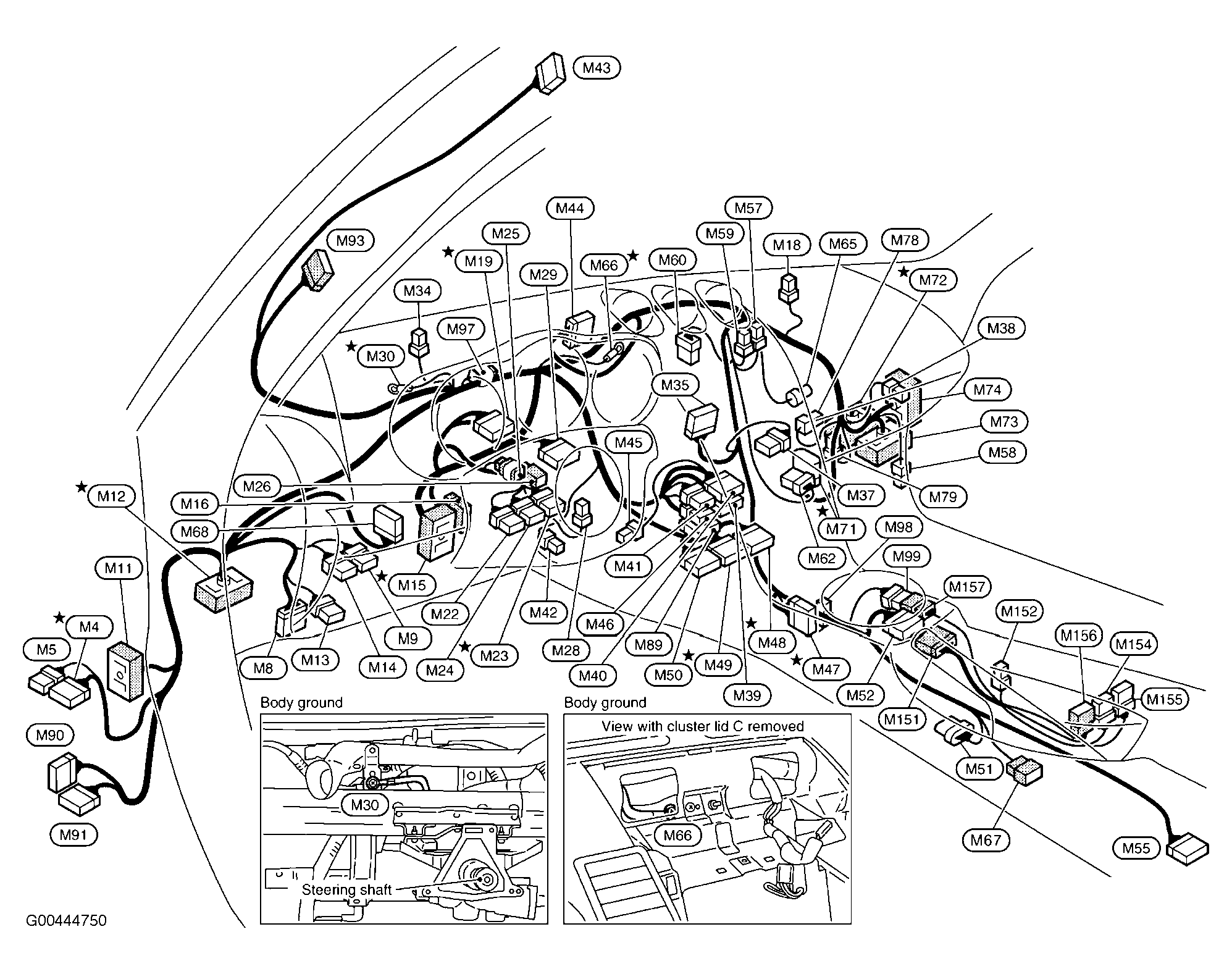

Fig 11: Dash & Center Console (350Z)

G00444750

Courtesy of NISSAN MOTOR CO., U.S.A.

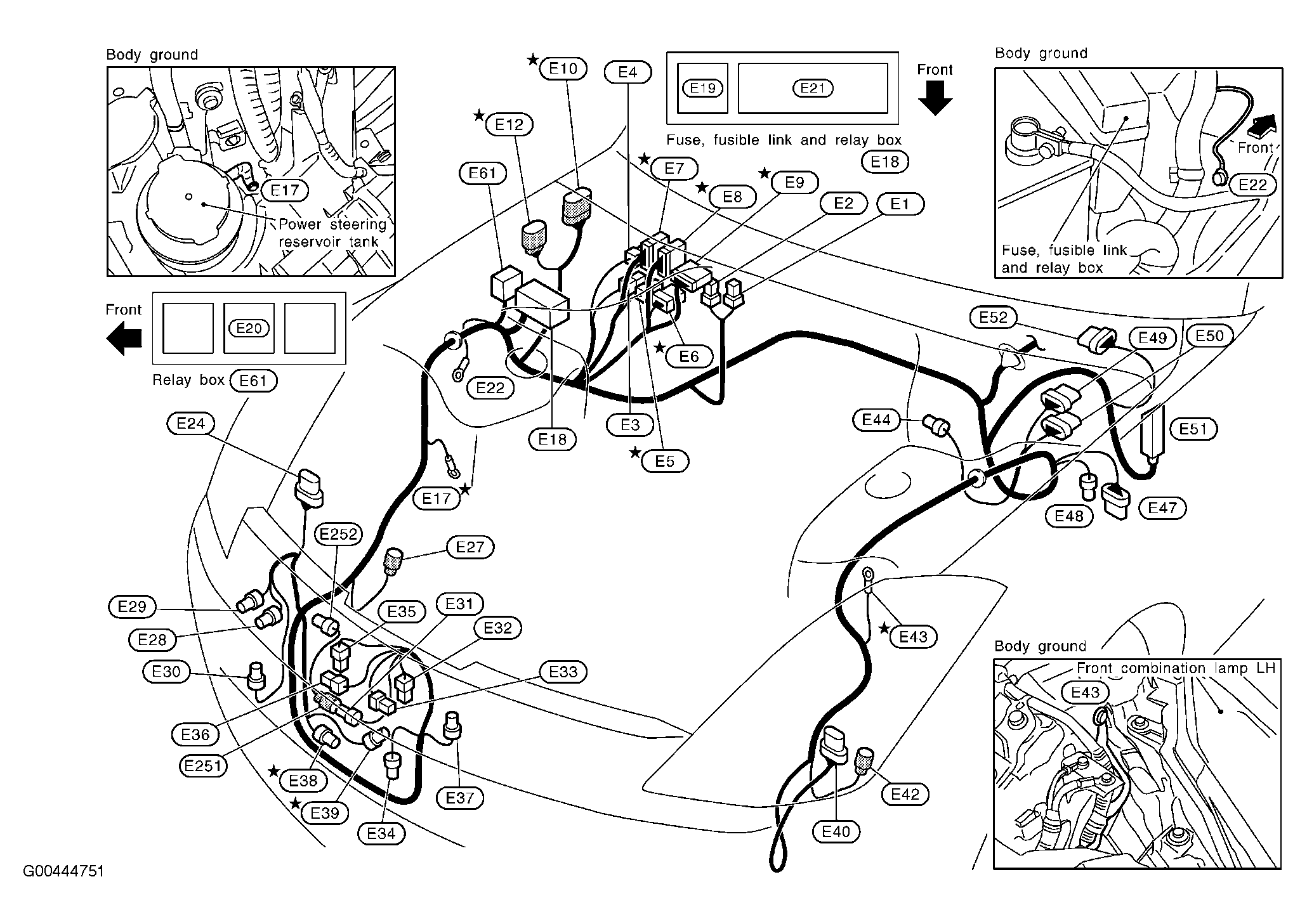

Fig 12: Engine Compartment (350Z)

G00444751

Courtesy of NISSAN MOTOR CO., U.S.A.

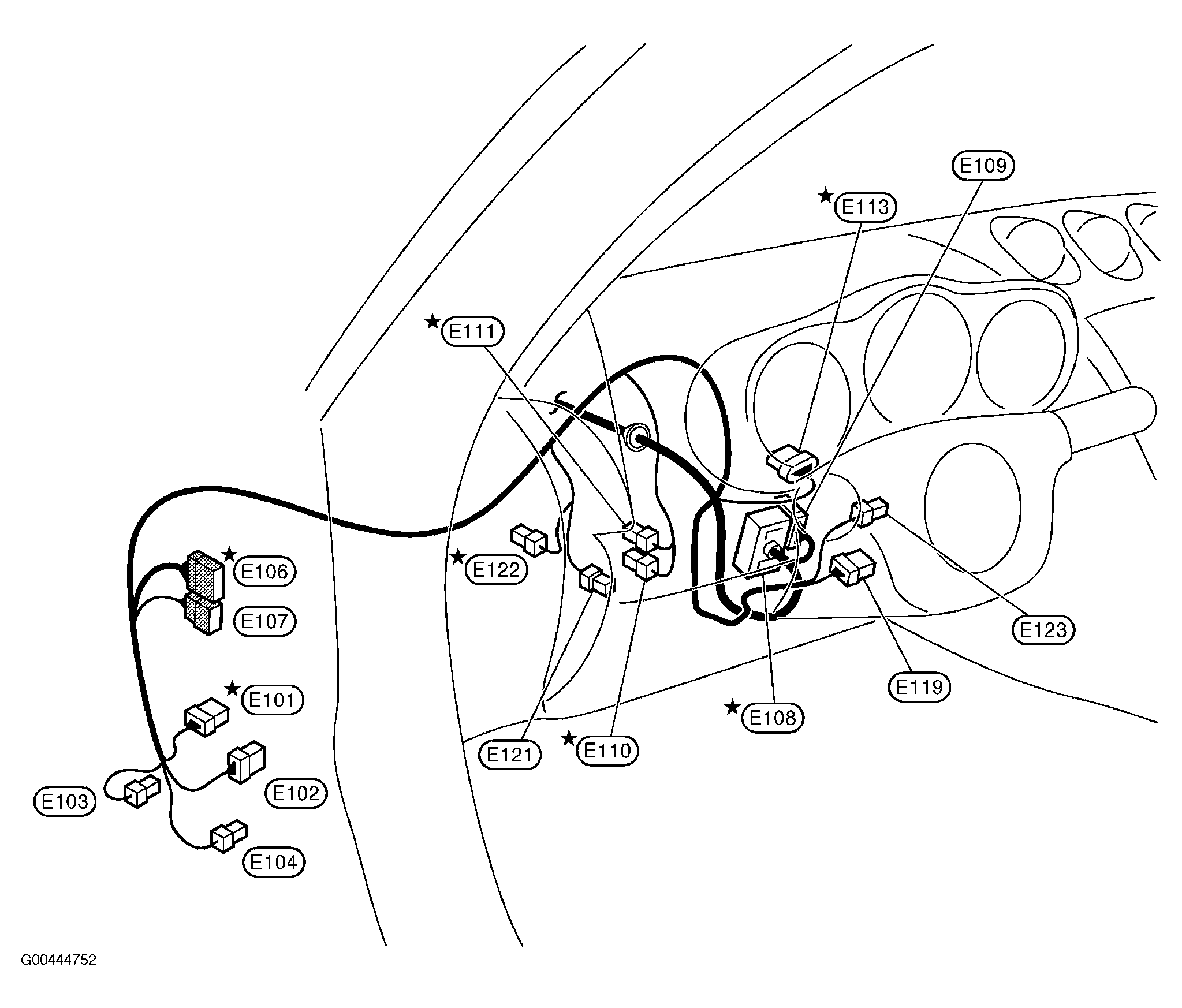

Fig 13: Left Side Of Dash (350Z)

G00444752

Courtesy of NISSAN MOTOR CO., U.S.A.

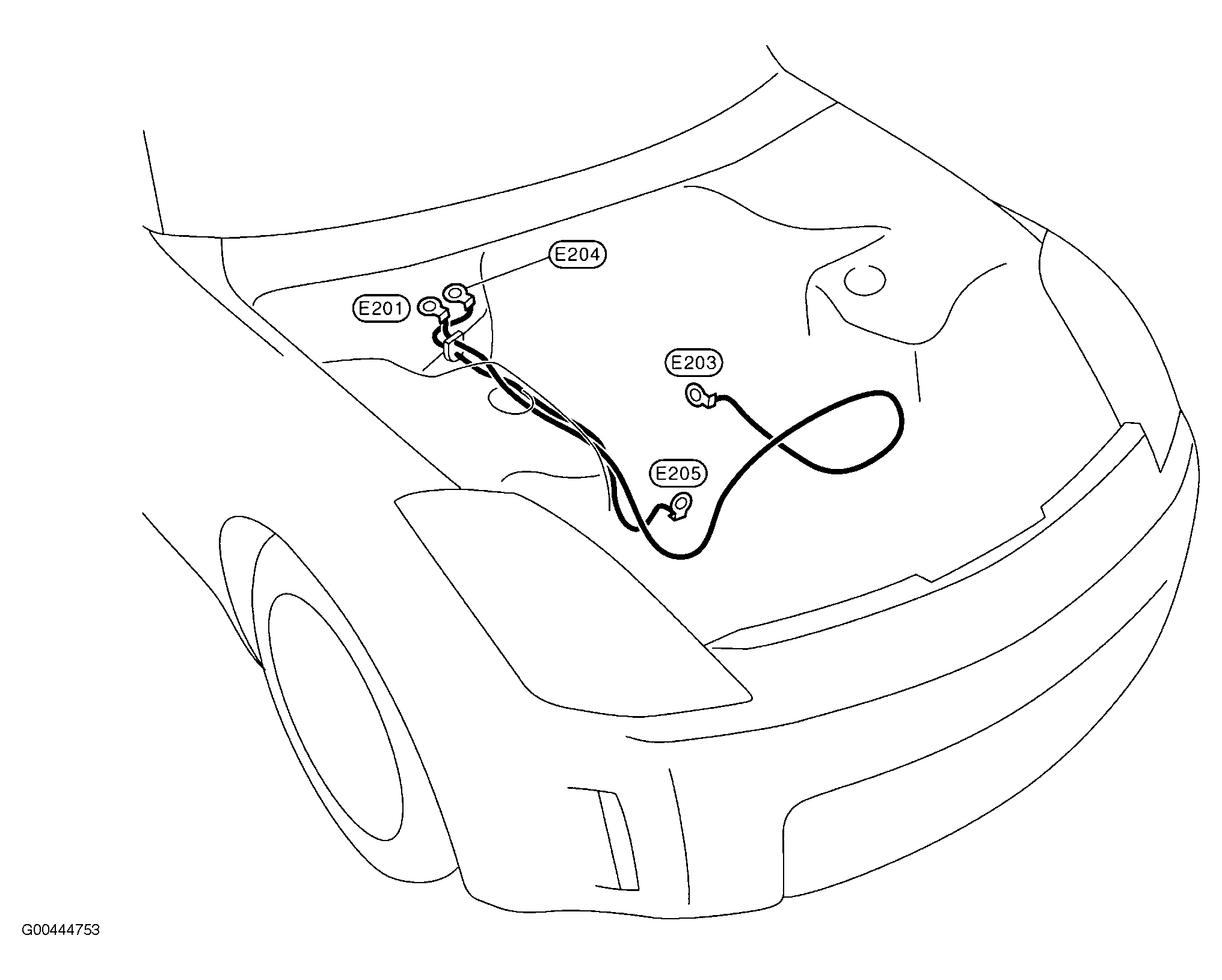

Fig 14: Engine Compartment (350Z)

G00444753

Courtesy of NISSAN MOTOR CO., U.S.A.

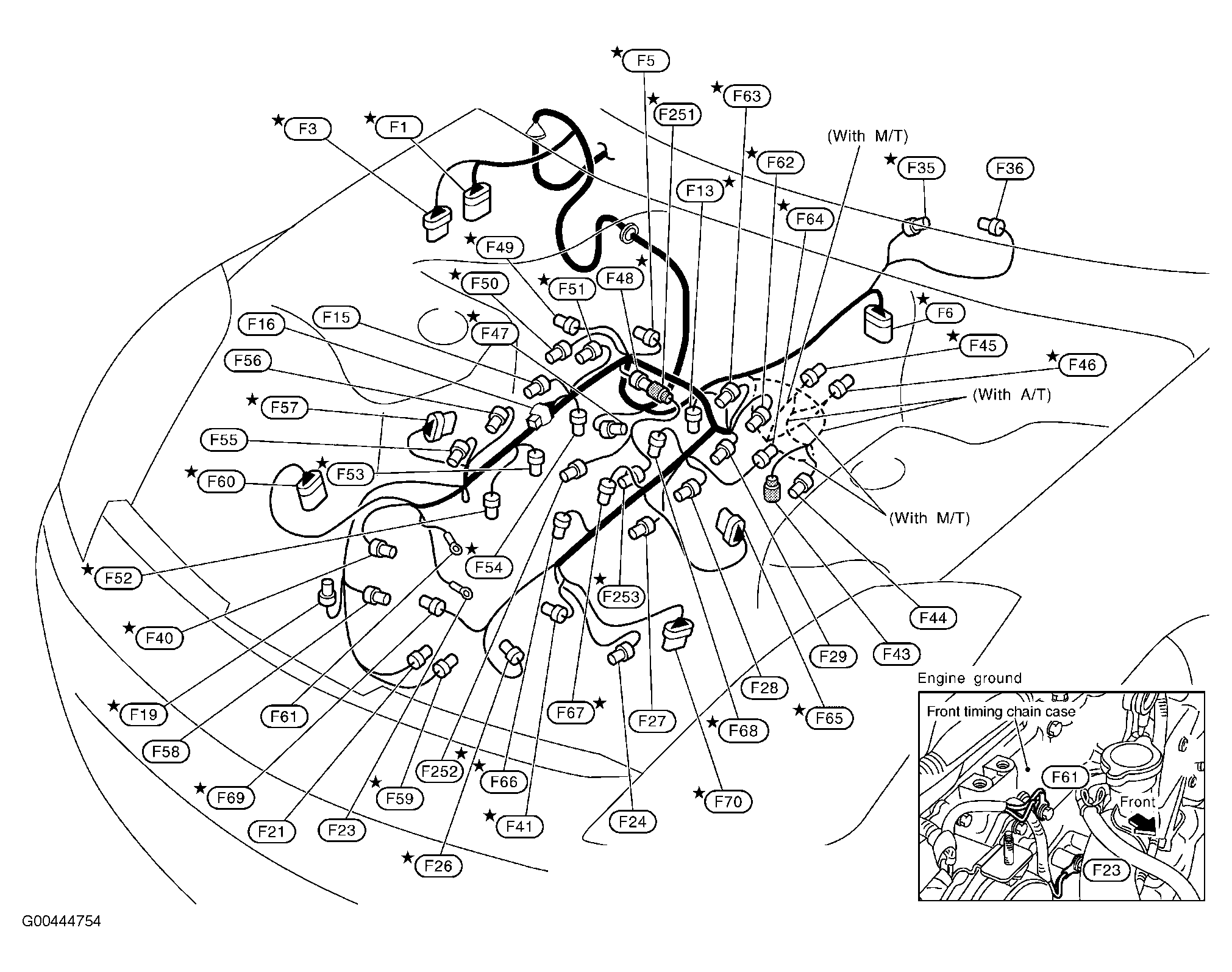

Fig 15: Engine (3.5L)

G00444754

Courtesy of NISSAN MOTOR CO., U.S.A.

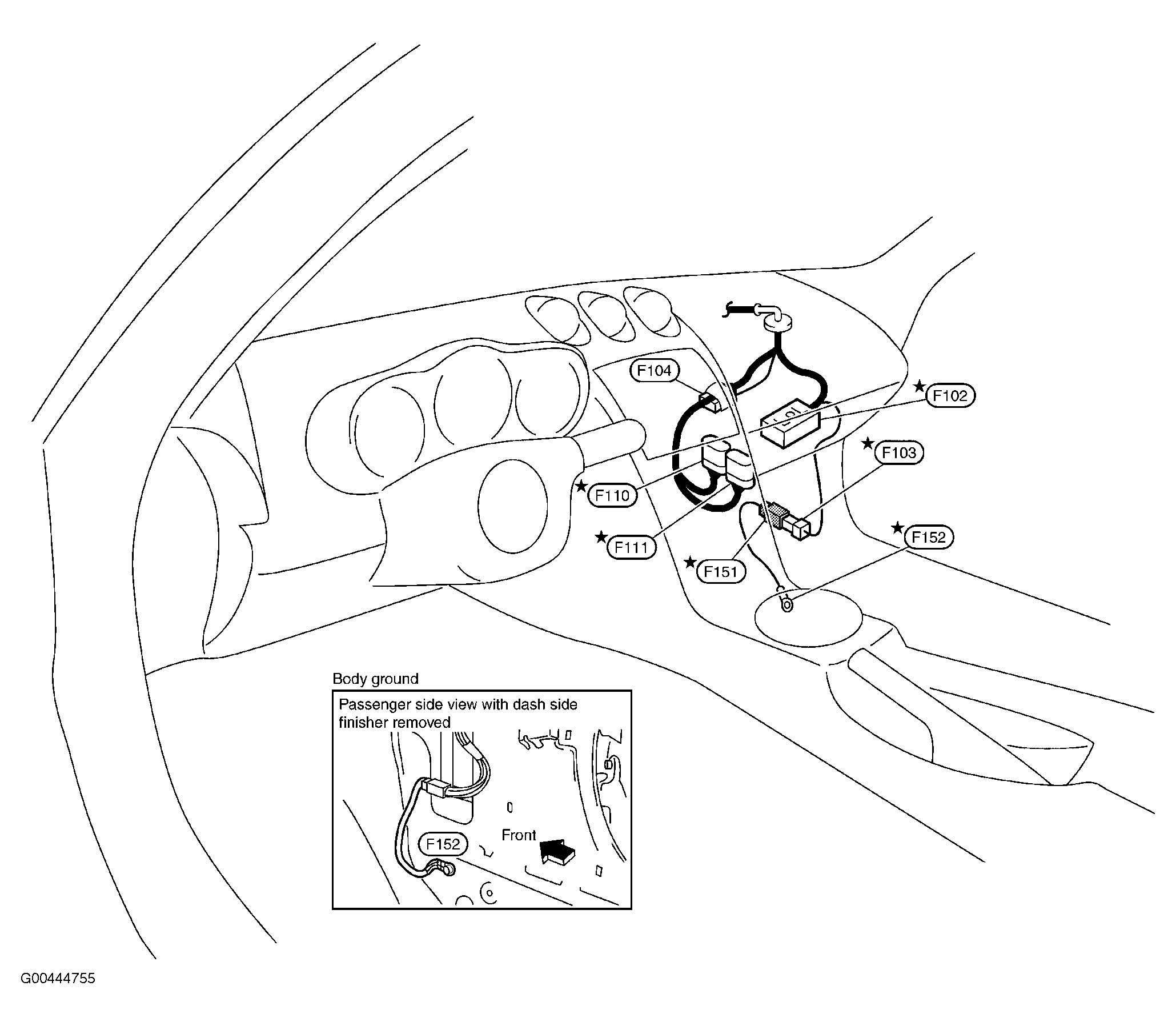

Fig 16: Right Side Of Dash (350Z)

G00444755

Courtesy of NISSAN MOTOR CO., U.S.A.

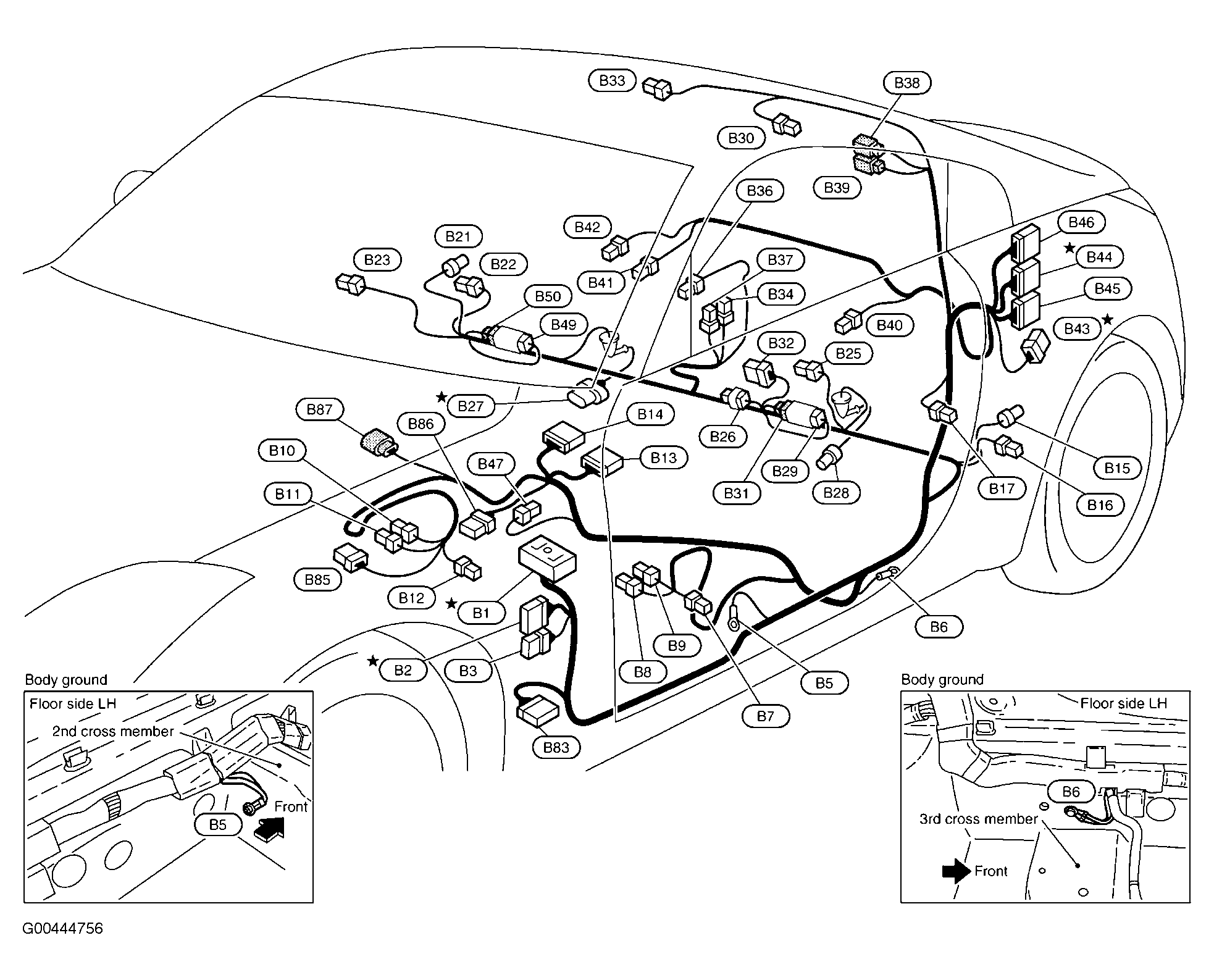

Fig 17: Vehicle Overview (Coupe) (350Z)

G00444756

Courtesy of NISSAN MOTOR CO., U.S.A.

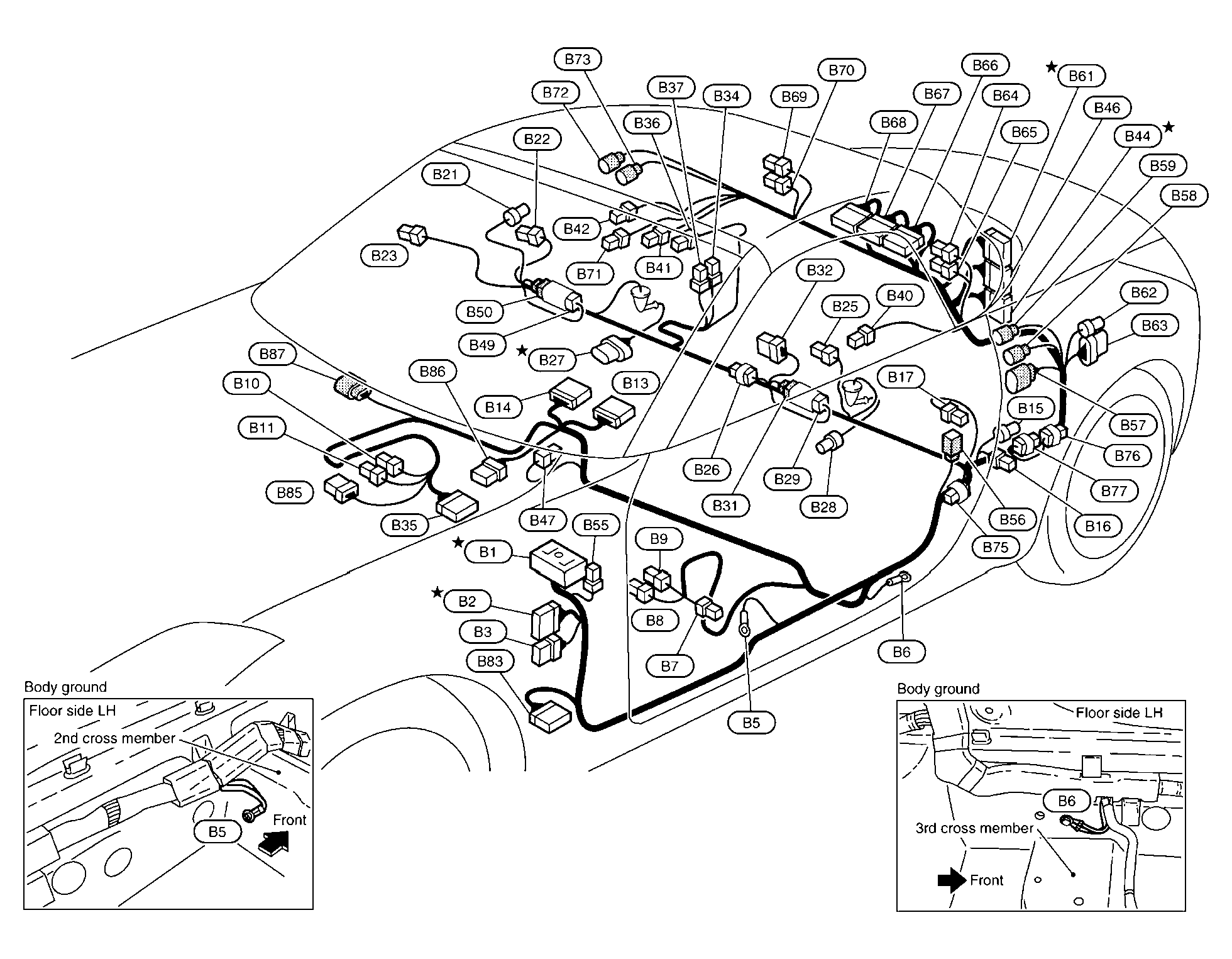

Fig 18: Vehicle Overview (Roadster)

G00459196

Courtesy of NISSAN MOTOR CO., U.S.A.

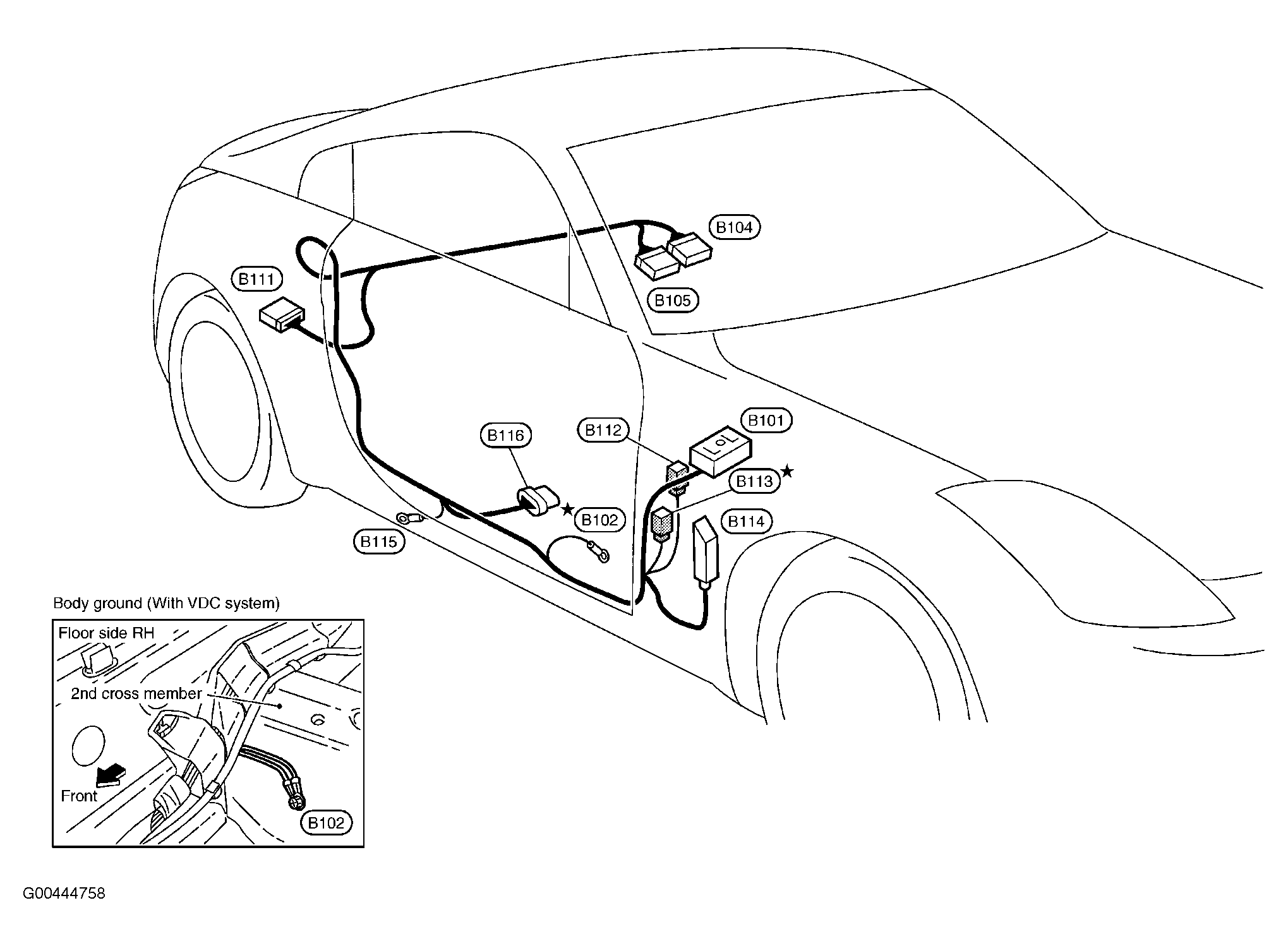

Fig 19: Right Side Of Vehicle (350Z)

G00444758

Courtesy of NISSAN MOTOR CO., U.S.A.

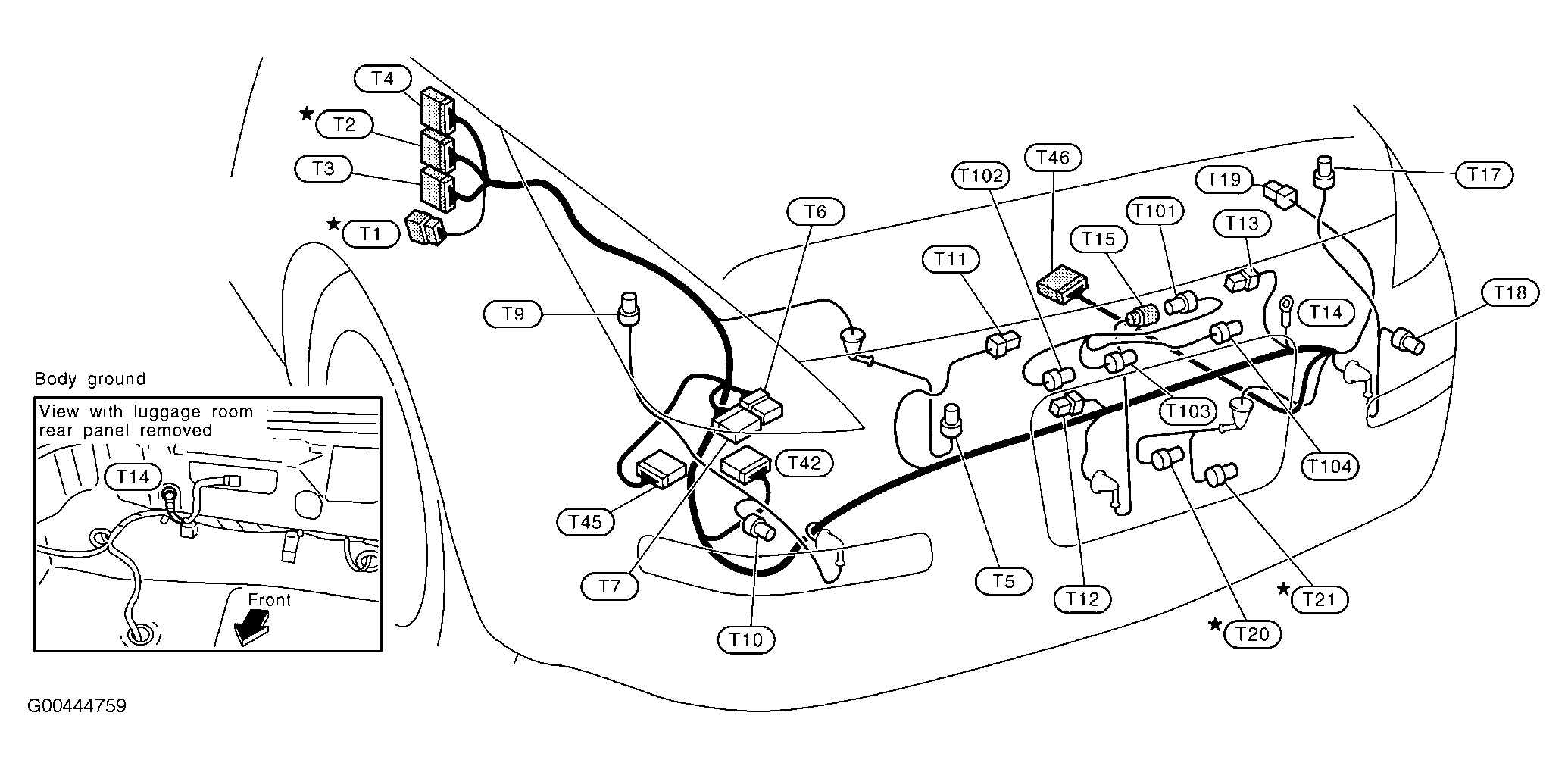

Fig 20: Rear Compartment (Coupe) (350Z)

G00444759

Courtesy of NISSAN MOTOR CO., U.S.A.

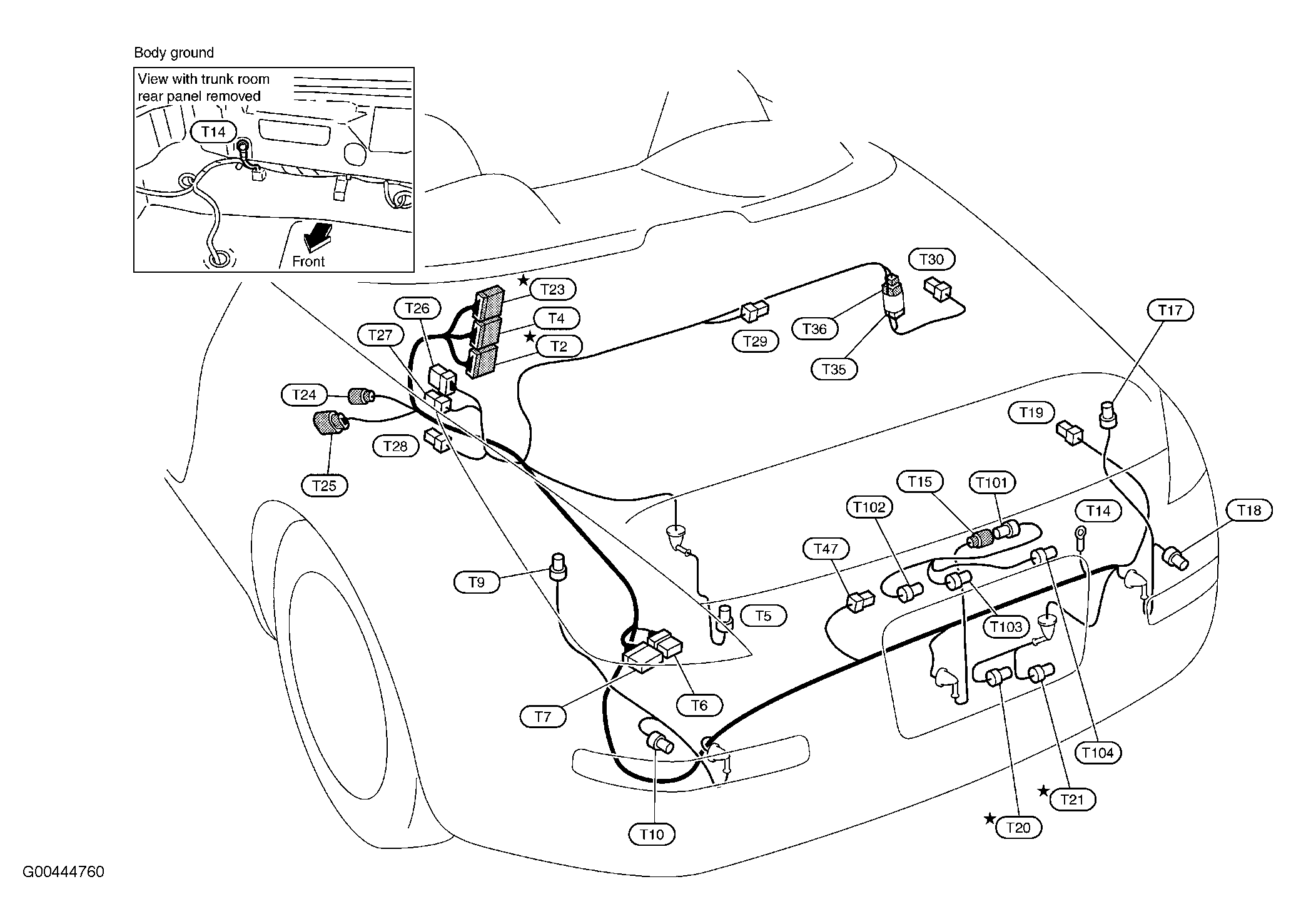

Fig 21: Rear Of Vehicle (Roadster)

G00444760

Courtesy of NISSAN MOTOR CO., U.S.A.

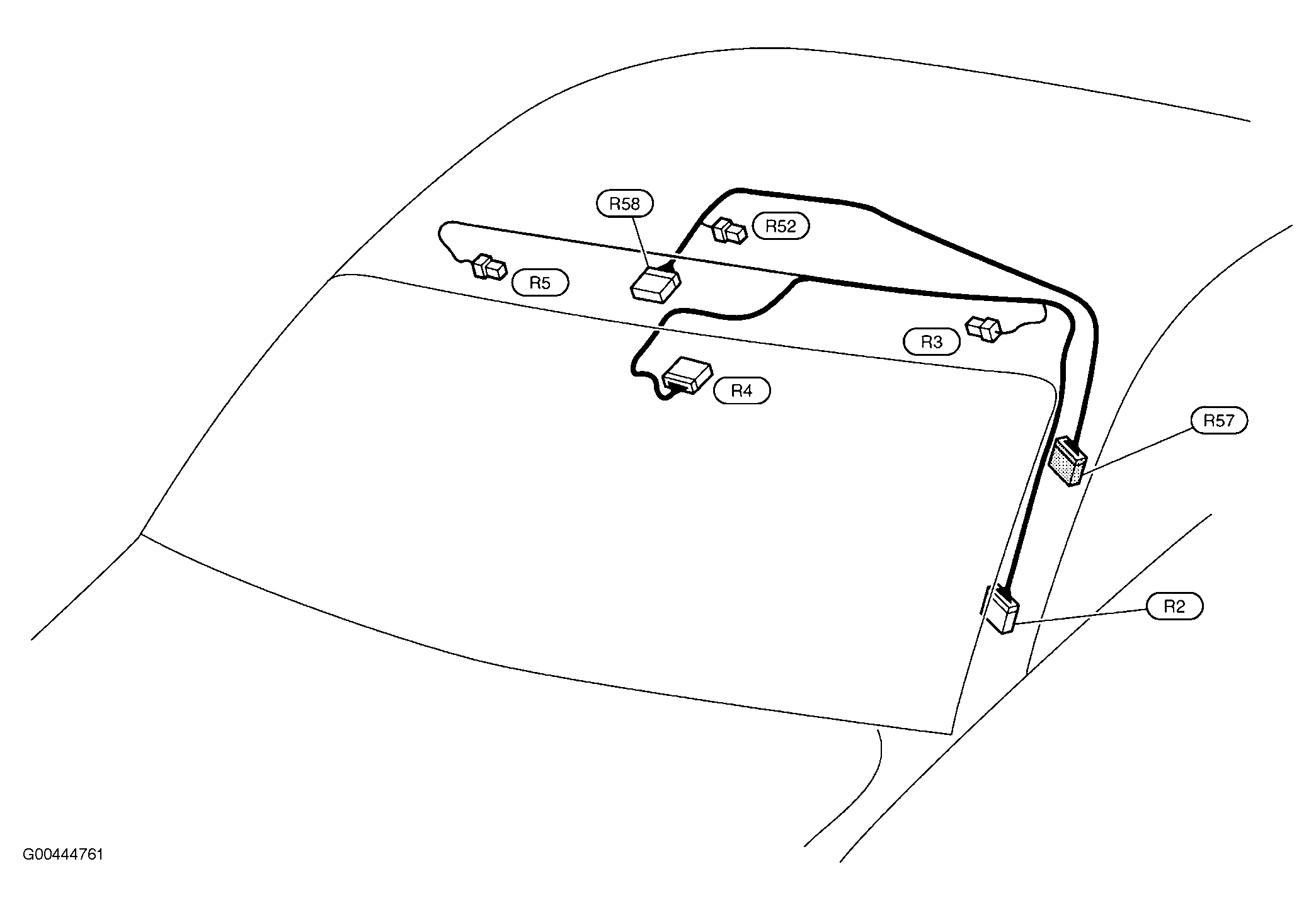

Fig 22: Roof (Coupe) (350Z)

G00444761

Courtesy of NISSAN MOTOR CO., U.S.A.

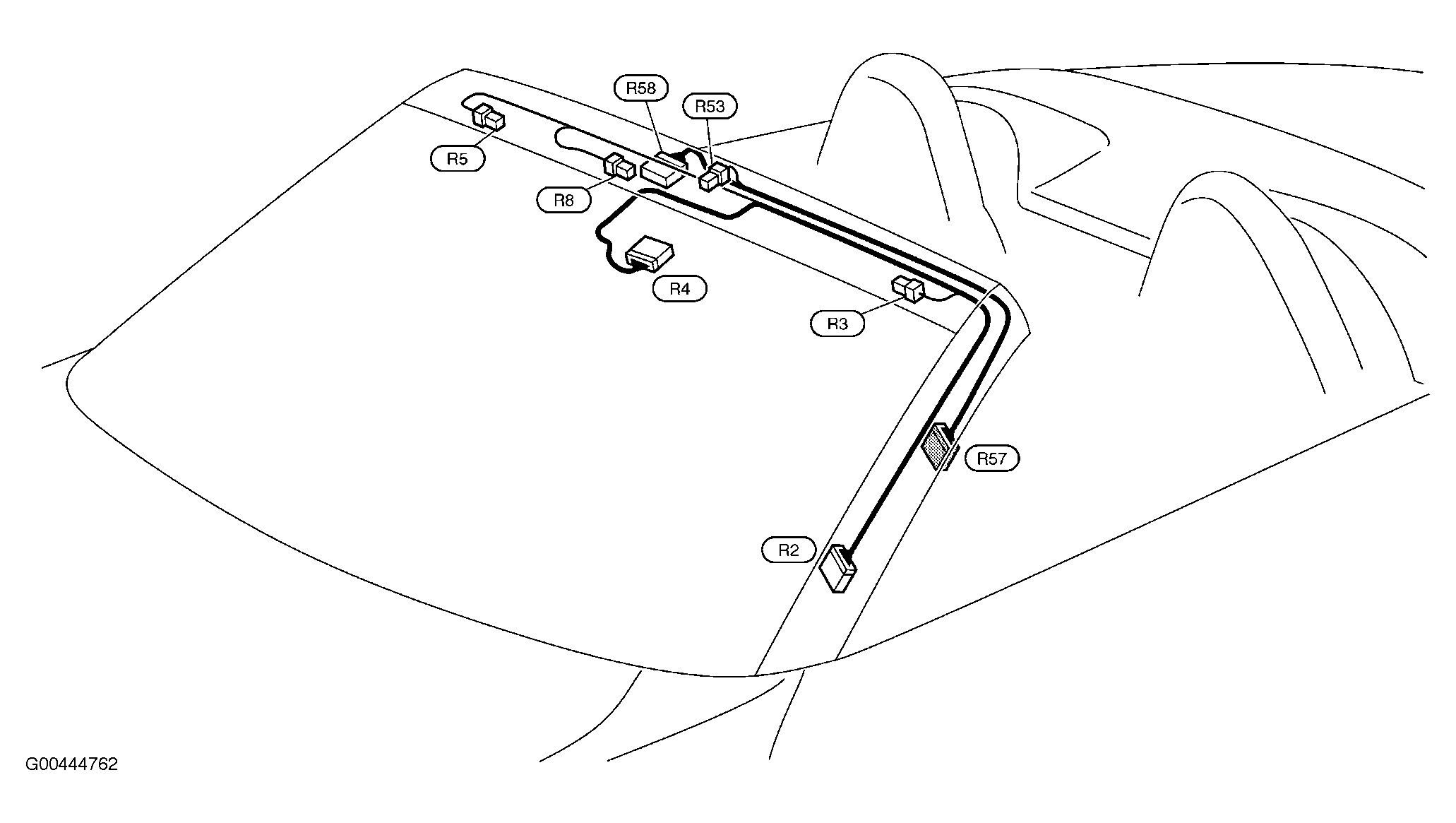

Fig 23: Windshield Header (Roadster)

G00444762

Courtesy of NISSAN MOTOR CO., U.S.A.

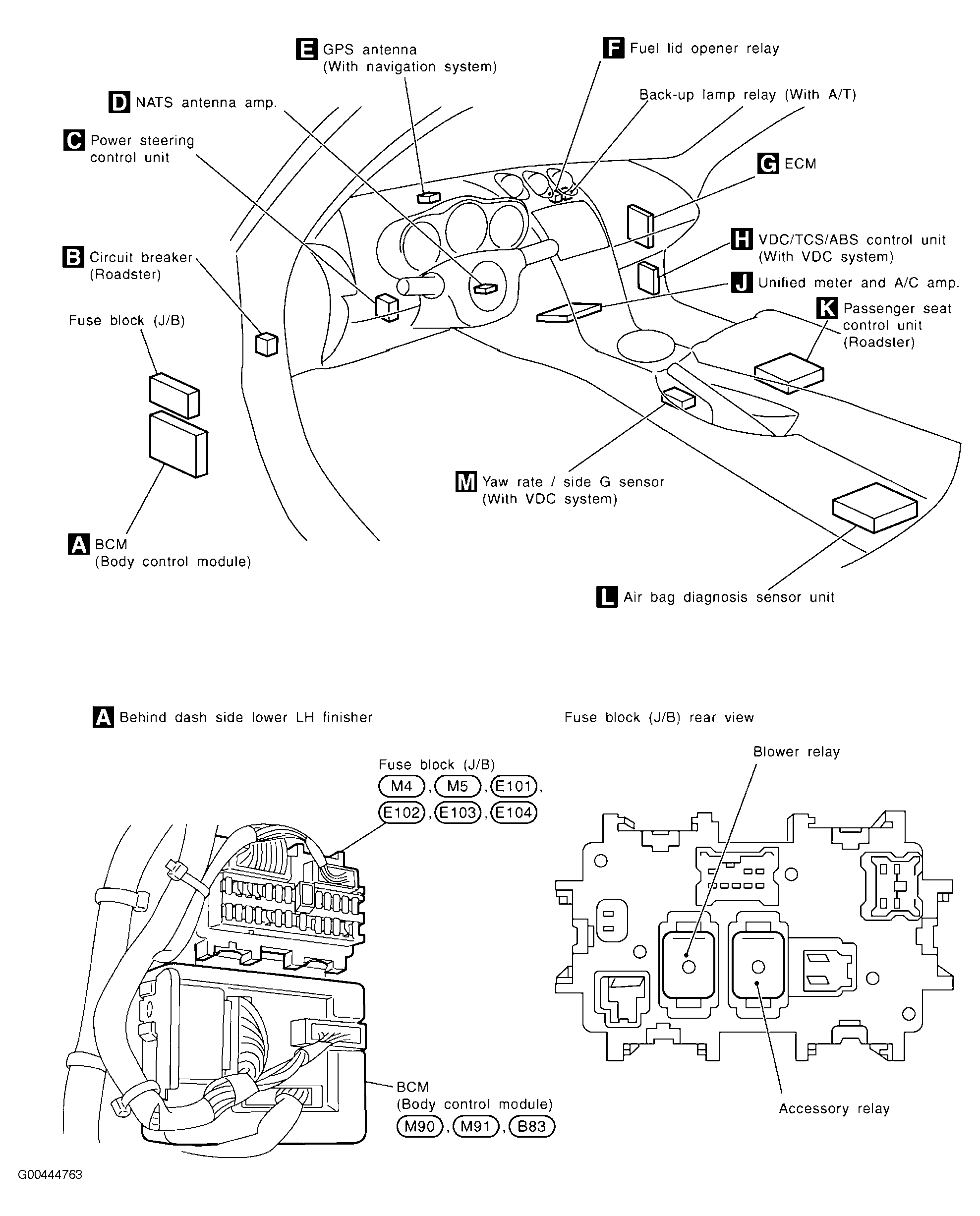

Fig 24: Passenger Compartment (1 Of 2) (350Z)

G00444763

Courtesy of NISSAN MOTOR CO., U.S.A.

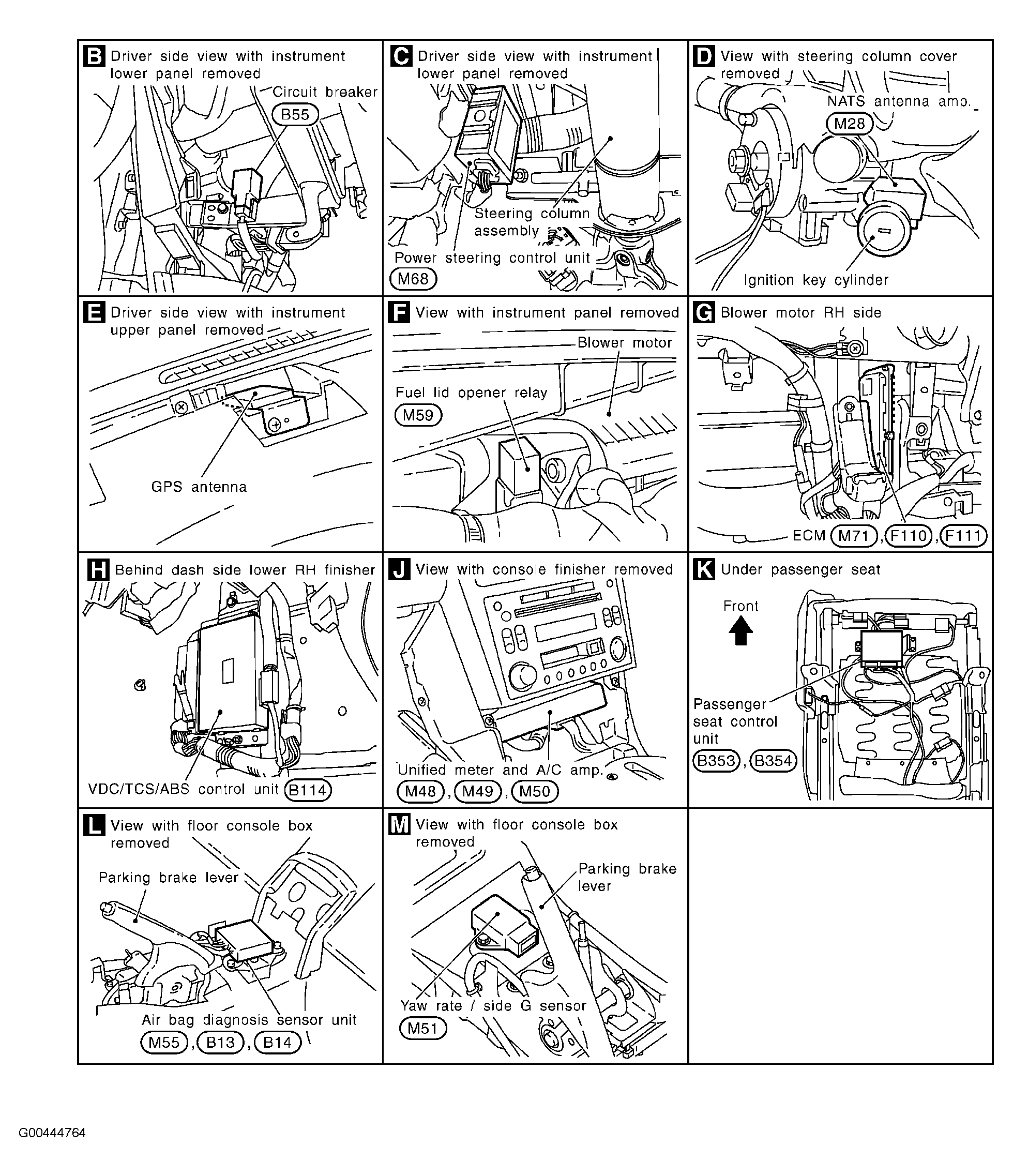

Fig 25: Passenger Compartment (2 Of 2) (350Z)

G00444764

Courtesy of NISSAN MOTOR CO., U.S.A.

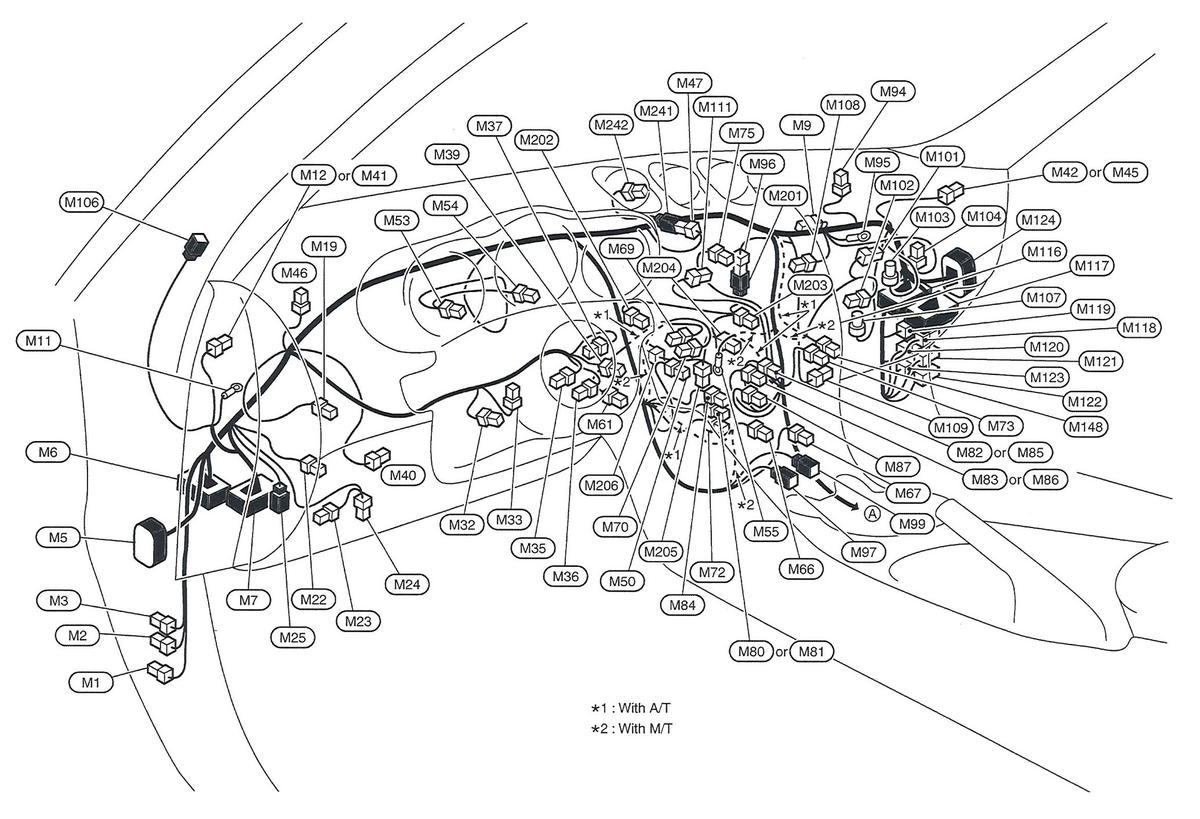

Fig 26: Dash & Kick Panels (370Z)

G00471208

Courtesy of NISSAN MOTOR CO., U.S.A.

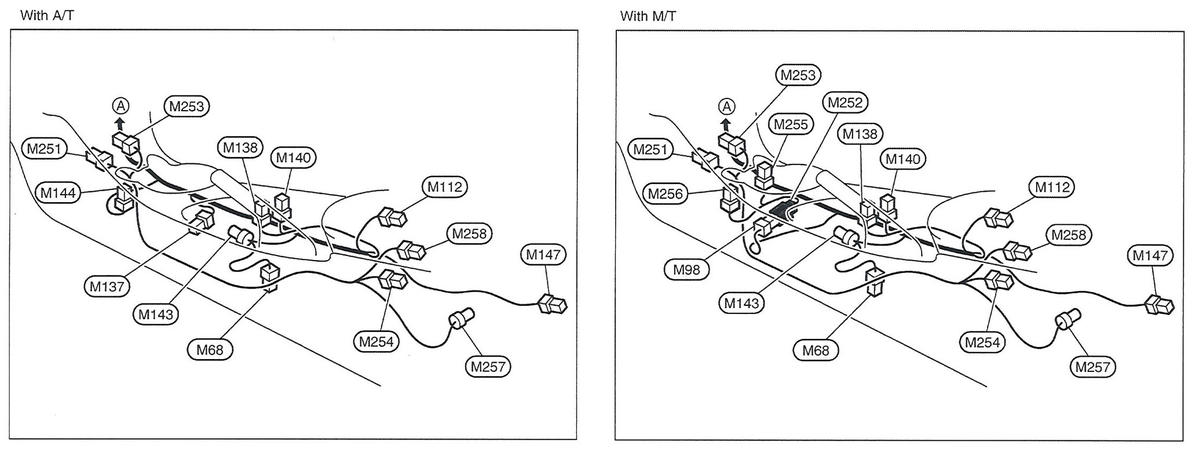

Fig 27: Center Console (370Z)

G00471209

Courtesy of NISSAN MOTOR CO., U.S.A.

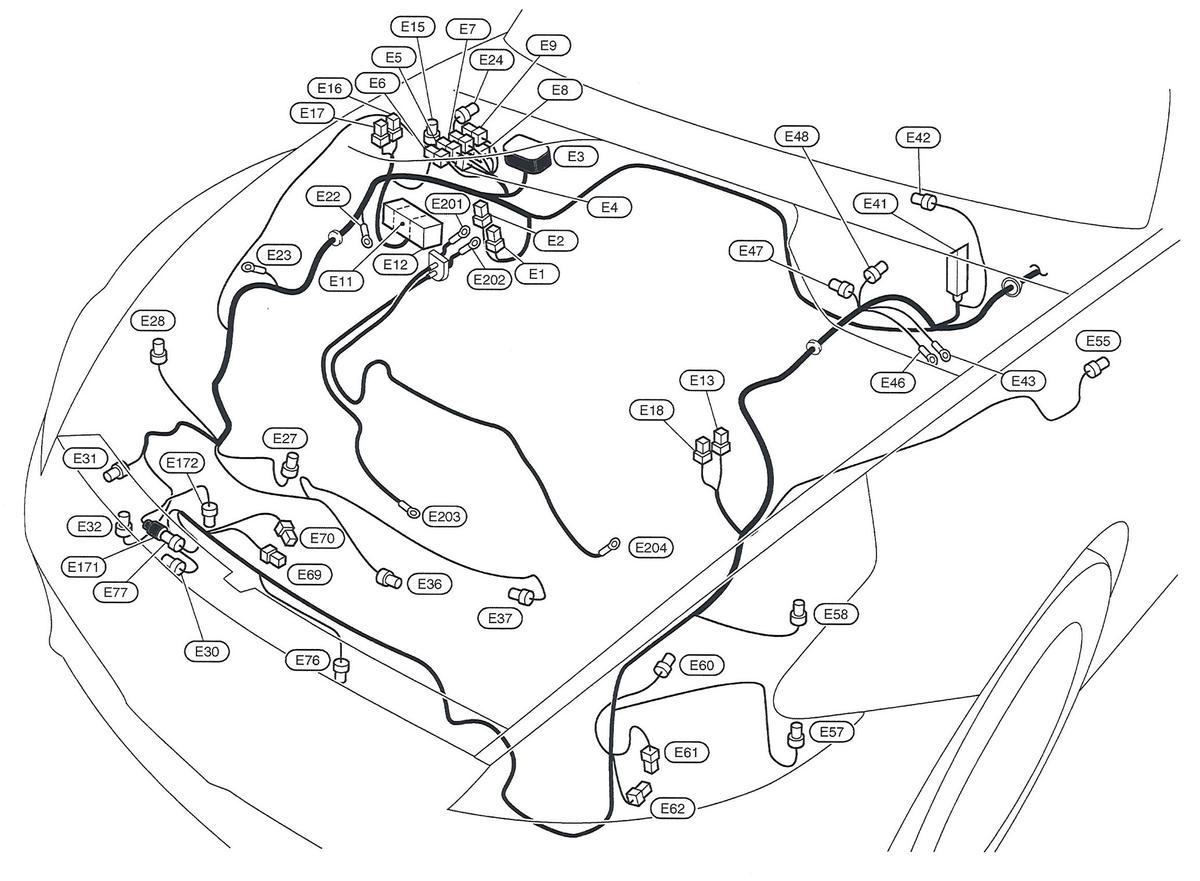

Fig 28: Engine Compartment (370Z)

G00471210

Courtesy of NISSAN MOTOR CO., U.S.A.

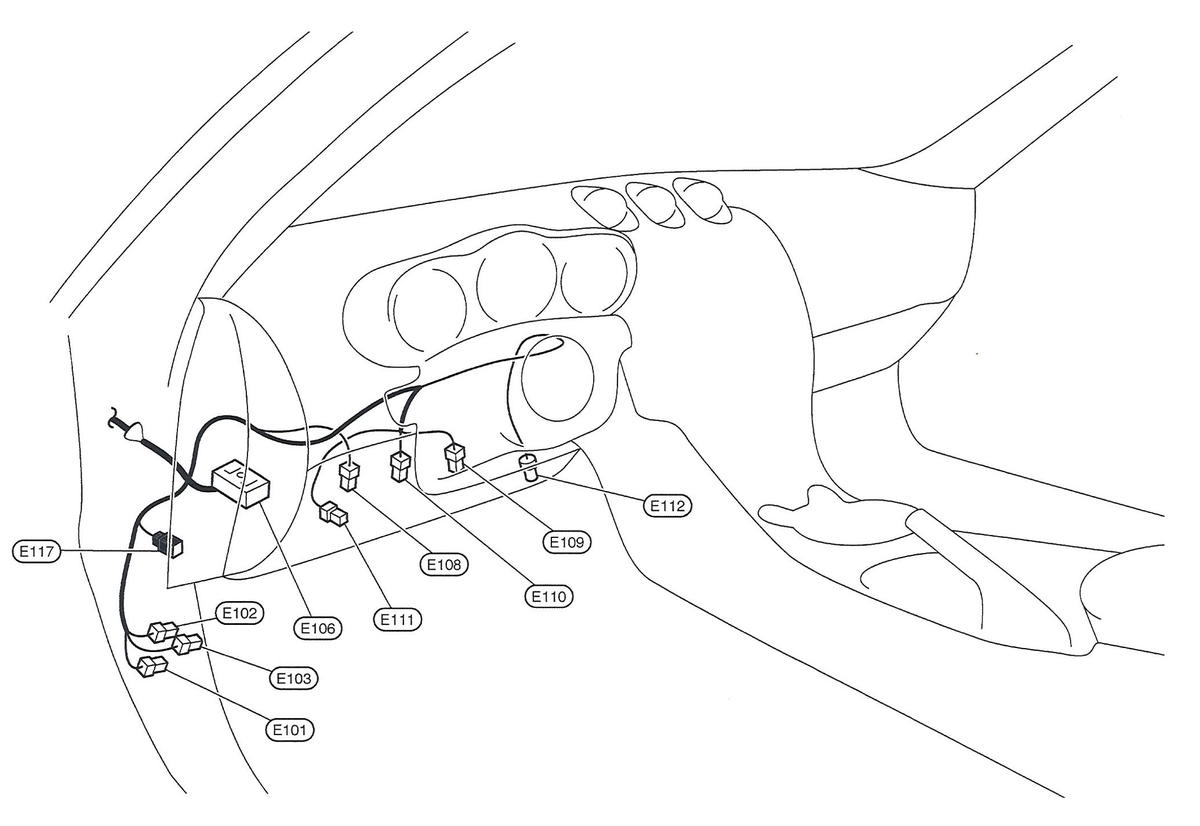

Fig 29: Left End Of Dash (370Z)

G00471211

Courtesy of NISSAN MOTOR CO., U.S.A.

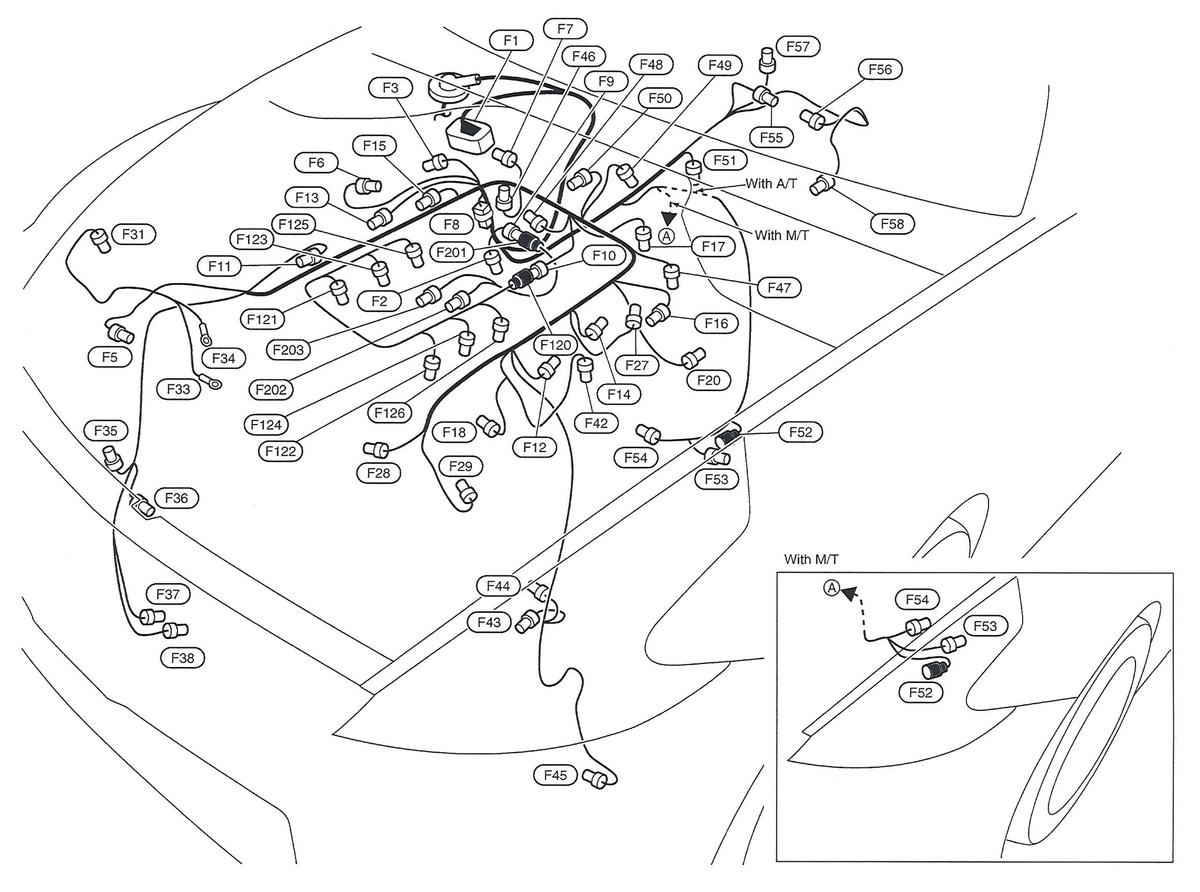

Fig 30: Engine (3.7L)

G00471212

Courtesy of NISSAN MOTOR CO., U.S.A.

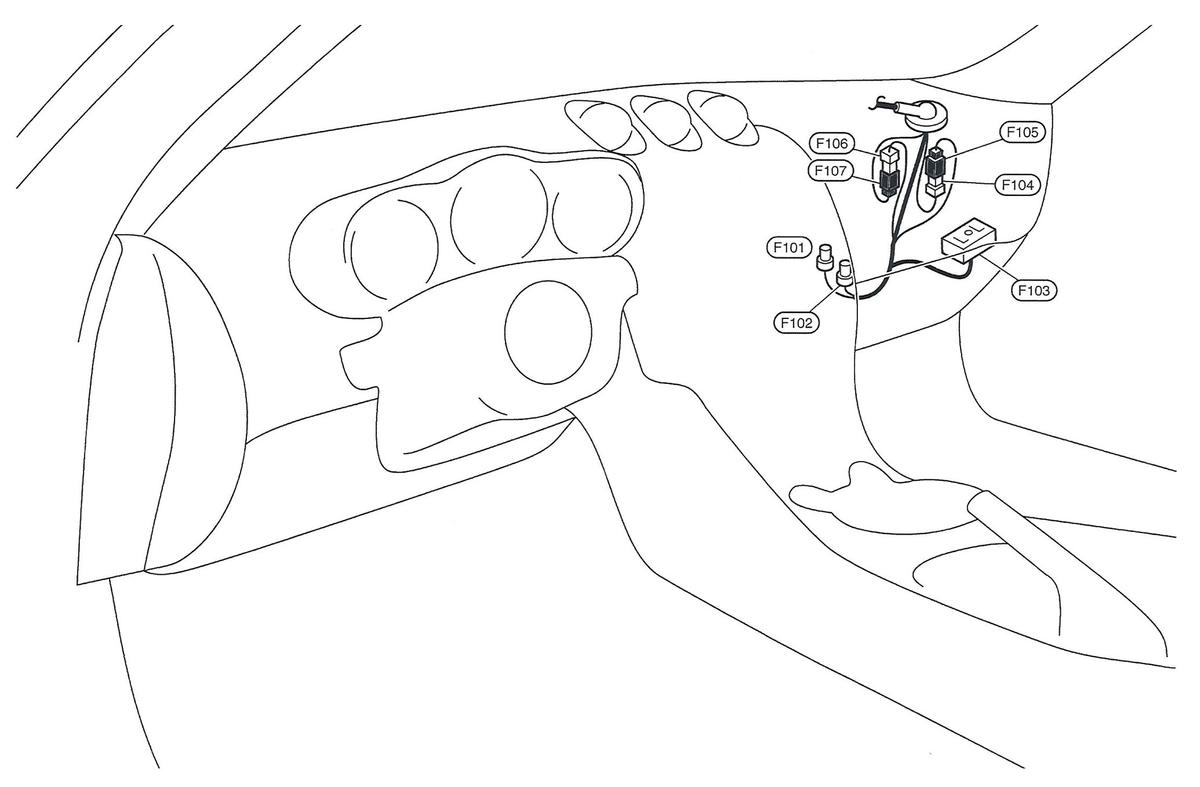

Fig 31: Right End Of Dash (370Z)

G00471213

Courtesy of NISSAN MOTOR CO., U.S.A.

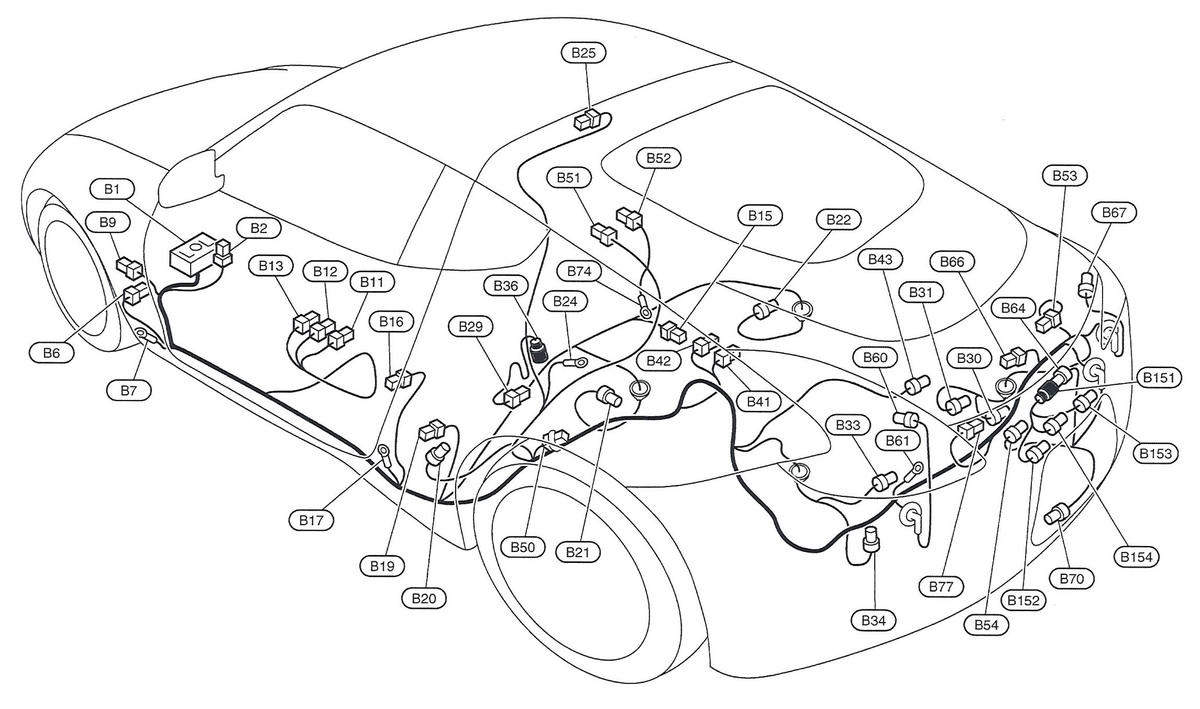

Fig 32: Left Side Of Vehicle (370Z)

G00471214

Courtesy of NISSAN MOTOR CO., U.S.A.

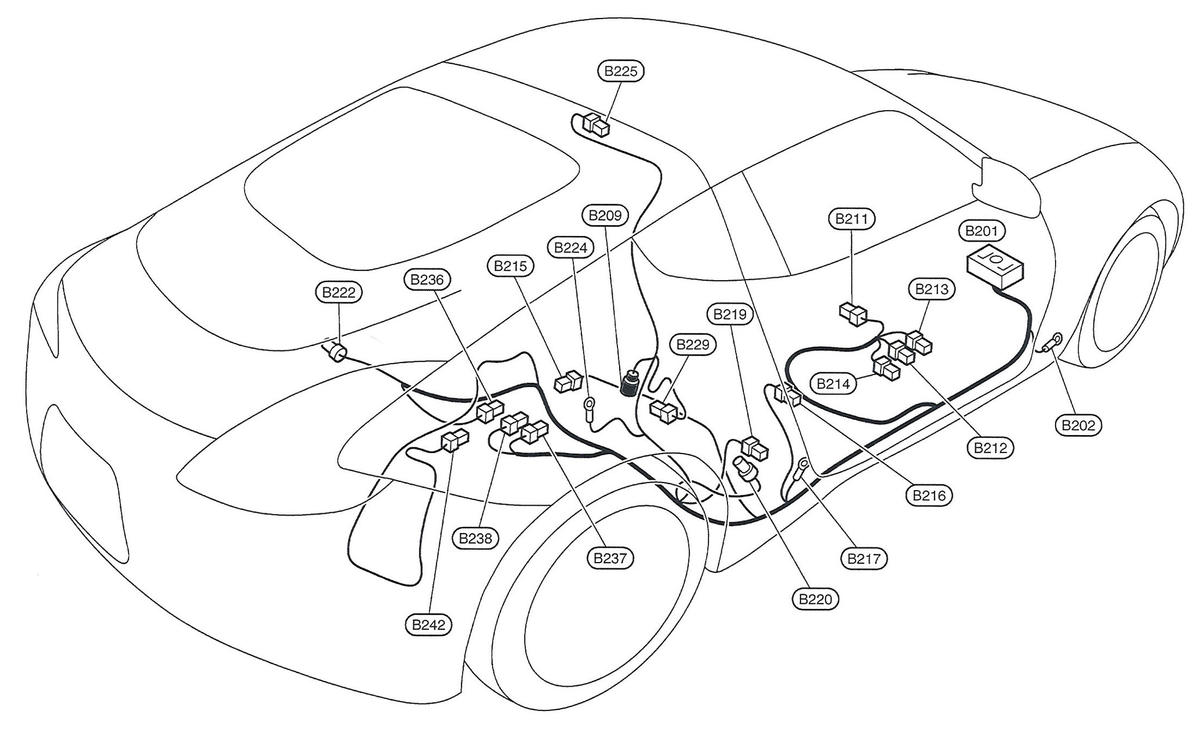

Fig 33: Right Side Of Vehicle (370Z)

G00471215

Courtesy of NISSAN MOTOR CO., U.S.A.

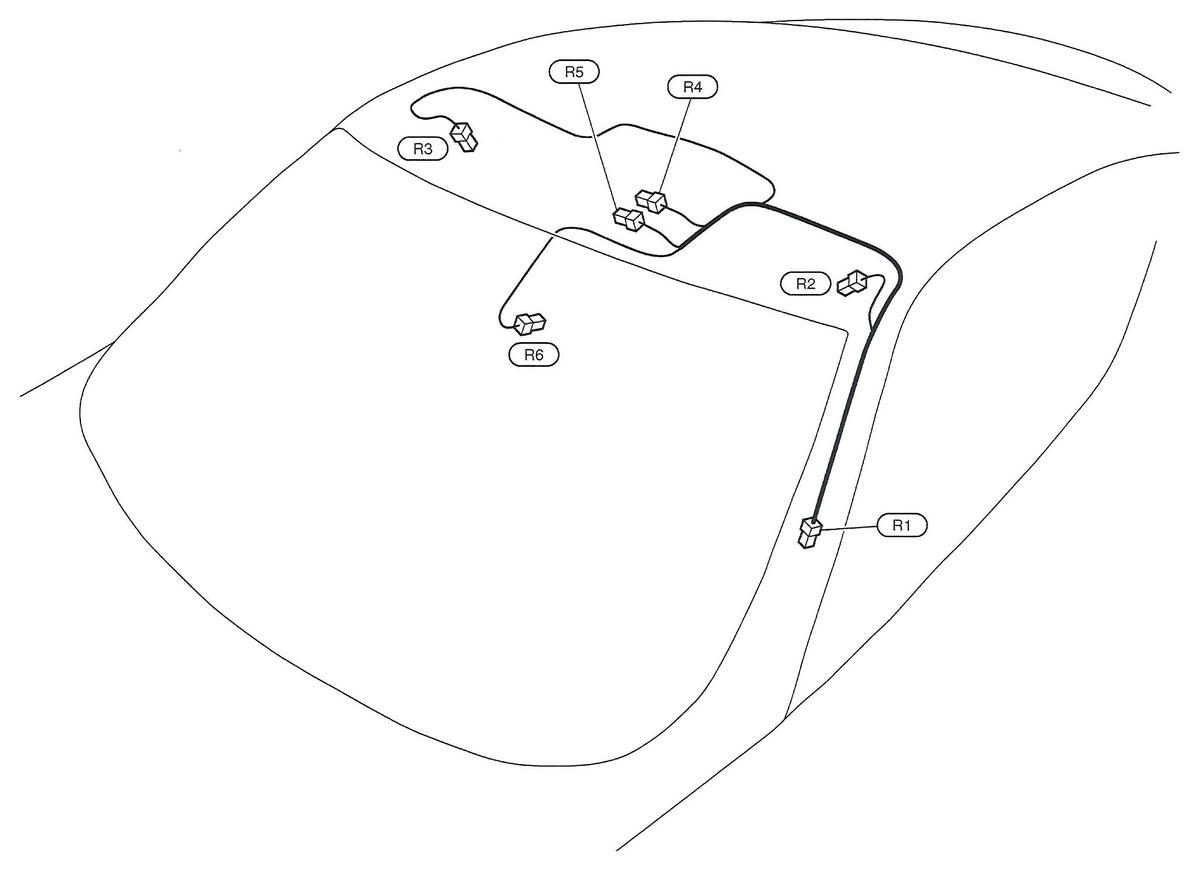

Fig 34: Roof (370Z)

G00471216

Courtesy of NISSAN MOTOR CO., U.S.A.

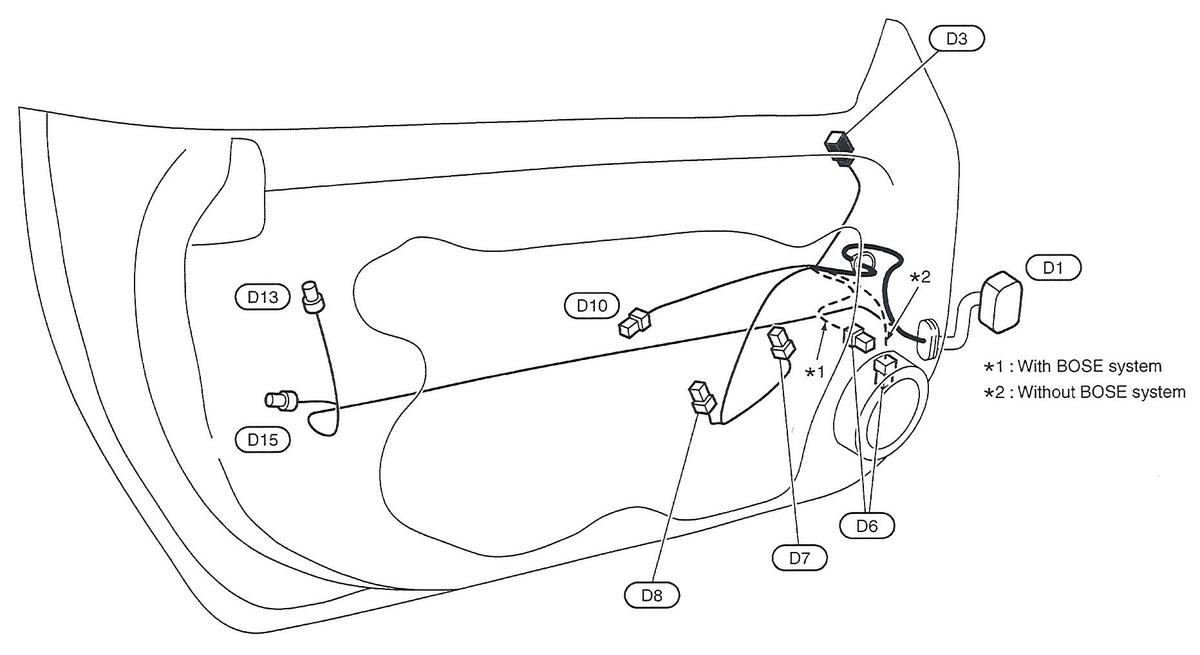

Fig 35: Driver's Door

G00471217

Courtesy of NISSAN MOTOR CO., U.S.A.

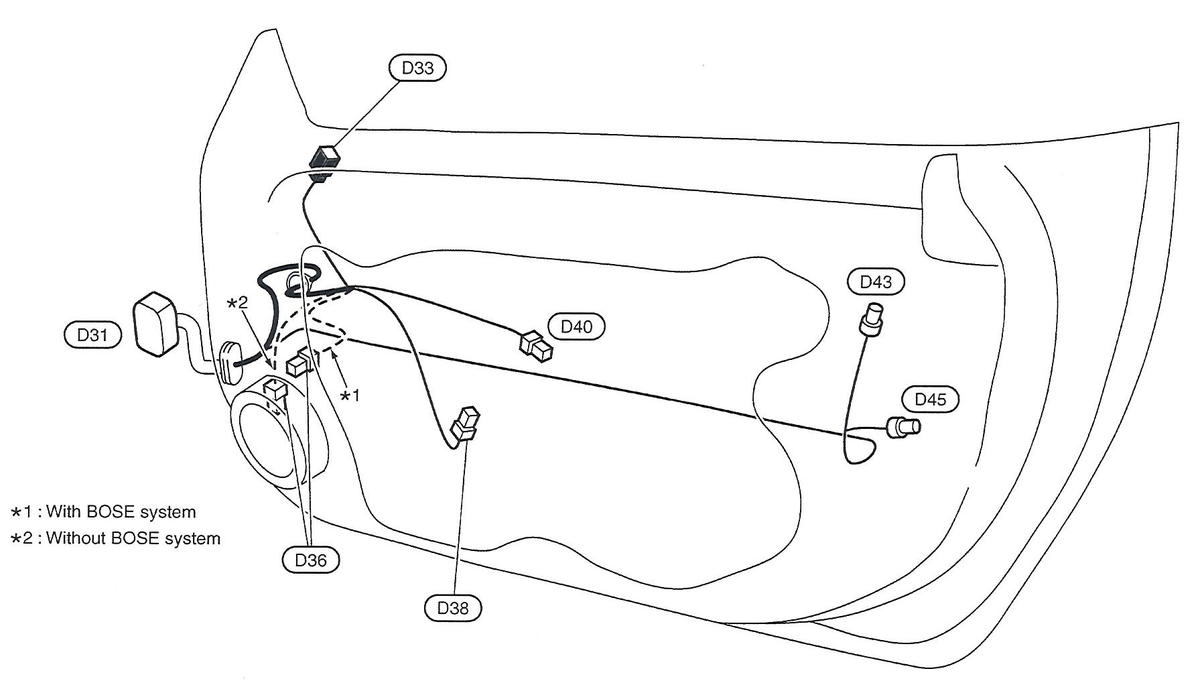

Fig 36: Passenger's Door (370Z)

G00471218

Courtesy of NISSAN MOTOR CO., U.S.A.

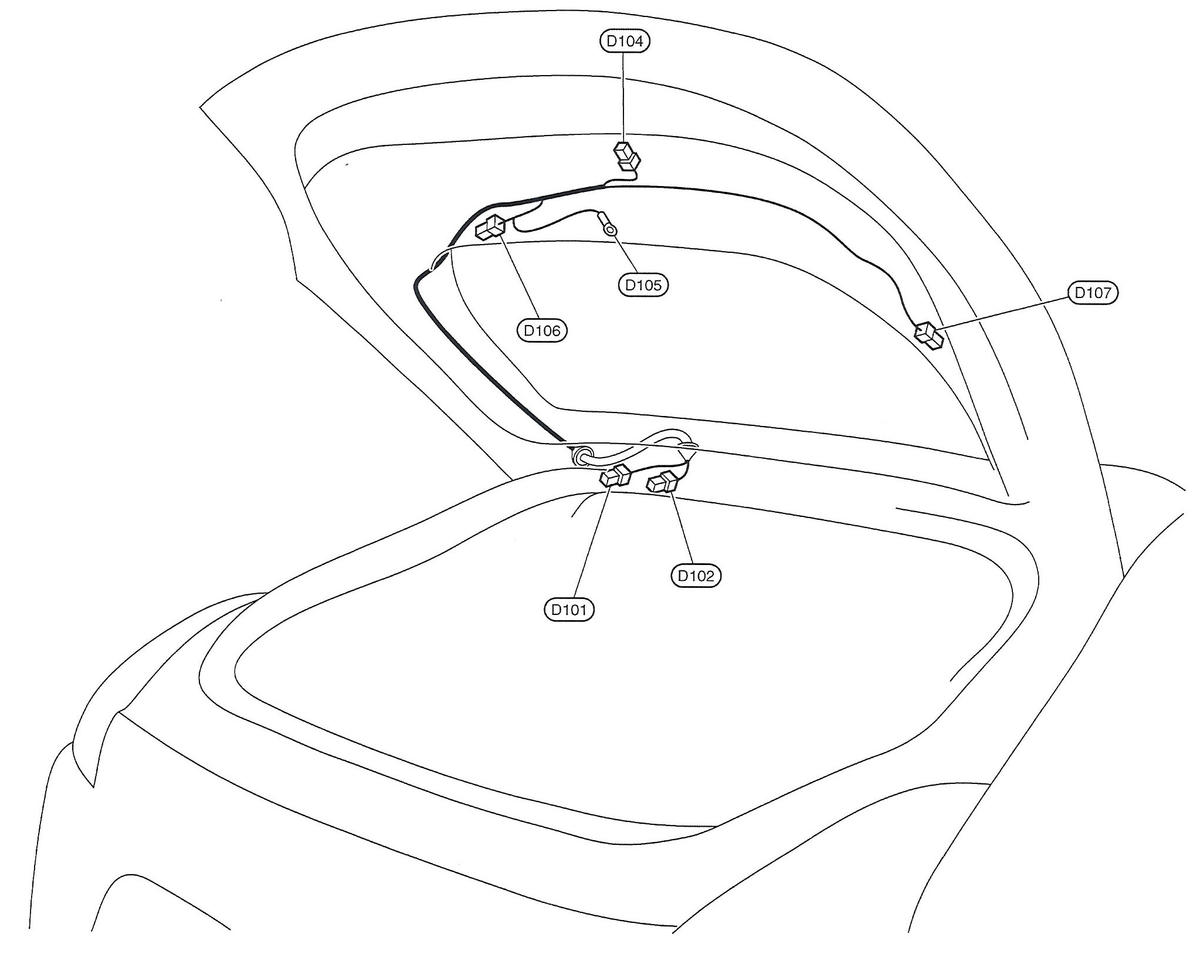

Fig 37: Back Door (370Z)

G00471219

Courtesy of NISSAN MOTOR CO., U.S.A.

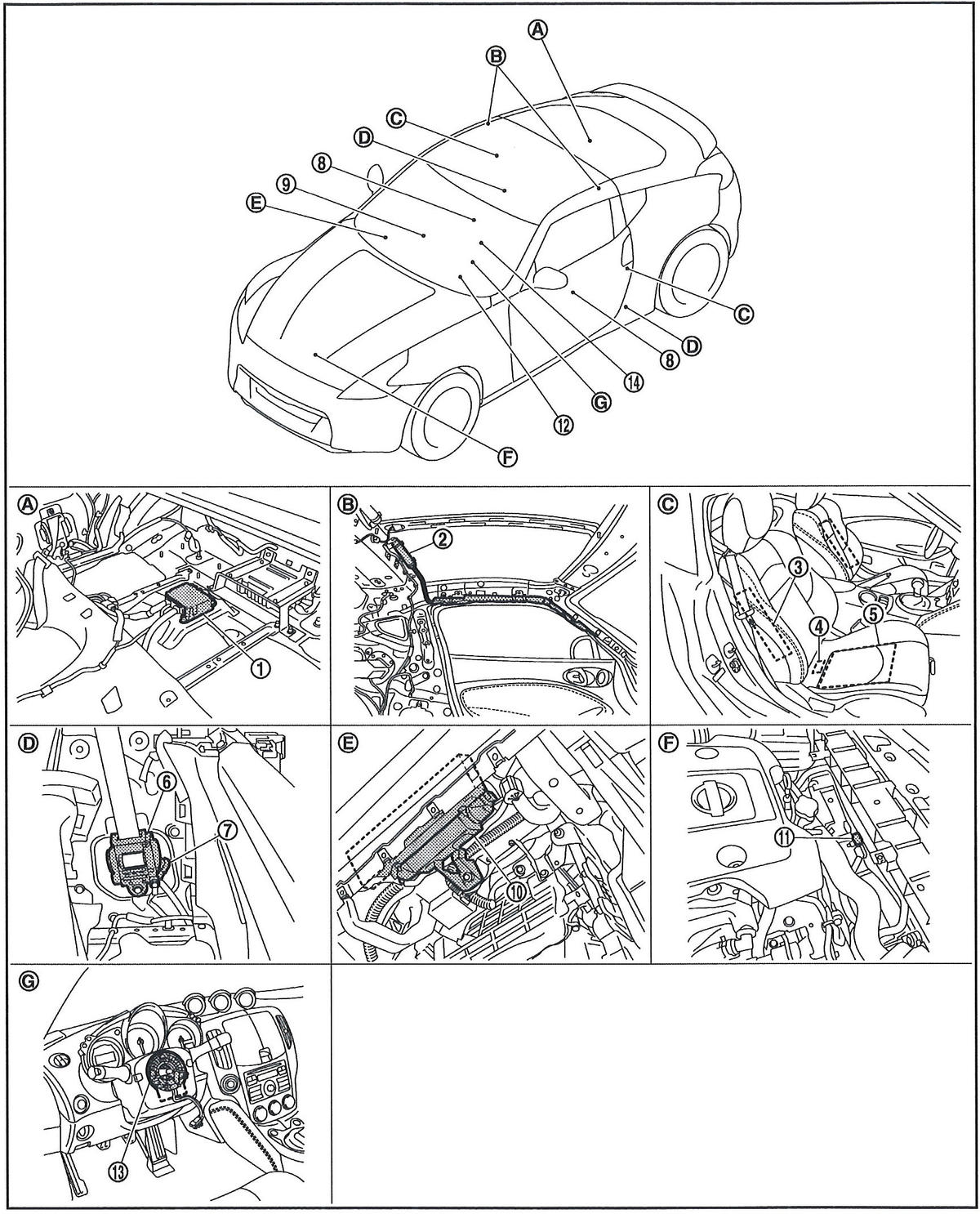

Fig 38: Vehicle SRS Overview (370Z)

G00471220

Courtesy of NISSAN MOTOR CO., U.S.A.
