Symptom Table
WARNING: This page is about a different car, the 2010 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
- Perform "Data Monitor" of CONSULT-III to check for any malfunctioning item.

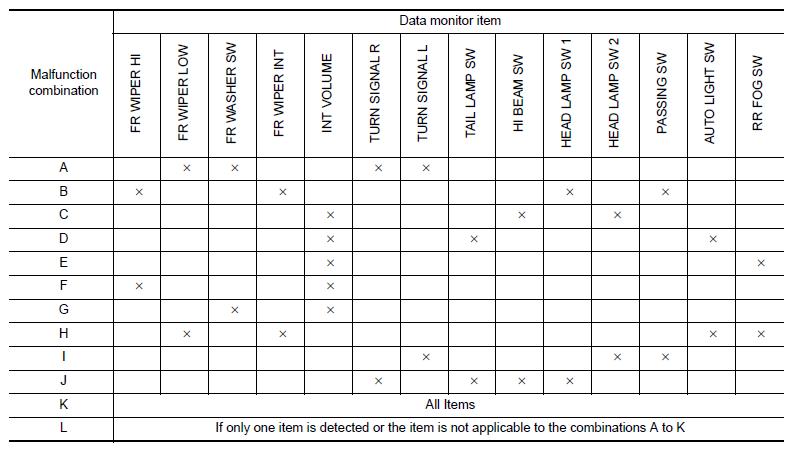

- Check the malfunction combinations.
- Identify the malfunctioning part from the agreed combination and repair or replace the part.COMBINATION SWITCH MALFUNCTION REFERENCE CHART
Malfunction combination Malfunctioning part Repair or replace A Combination switch INPUT 1 circuit Inspect the combination switch input circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ". B Combination switch INPUT 2 circuit C Combination switch INPUT 3 circuit D Combination switch INPUT 4 circuit E Combination switch INPUT 5 circuit F Combination switch OUTPUT 1 circuit Inspect the combination switch output circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ". G Combination switch OUTPUT 2 circuit H Combination switch OUTPUT 3 circuit I Combination switch OUTPUT 4 circuit J Combination switch OUTPUT 5 circuit K BCM Replace BCM. Refer to "EXPLODED VIEW ". L Combination switch Replace the combination switch.
