Bank 1

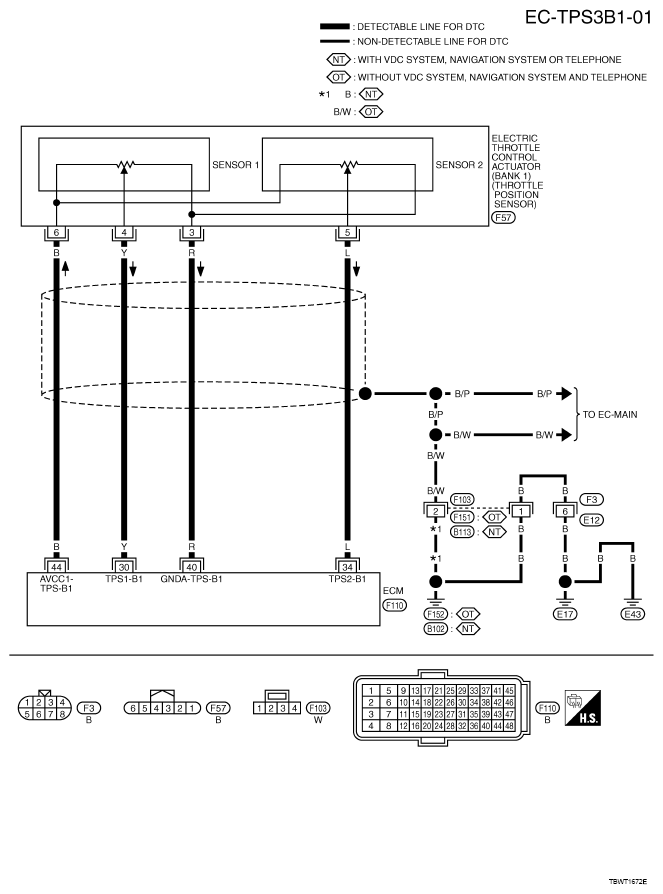

Fig 1: EC-TPS3B1-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-III.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

ITEM CONDITION CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
30	Y	Throttle position sensor 1 (bank 1)	[Ignition switch: ON] Engine stopped Shift lever: D (A/T) or 1st (M/T) Accelerator pedal: Fully released	More than 0.36V
30	Y	Throttle position sensor 1 (bank 1)	[Ignition switch: ON] Engine stopped Shift lever: D (A/T) or 1st (M/T) Accelerator pedal: Fully depressed	Less than 4.75V
34	L	Throttle position sensor 2 (bank 1)	[Ignition switch: ON] Engine stopped Shift lever: D (A/T) or 1st (M/T) Accelerator pedal: Fully released	Less than 4.75V
34	L	Throttle position sensor 2 (bank 1)	[Ignition switch: ON] Engine stopped Shift lever: D (A/T) or 1st (M/T) Accelerator pedal: Fully depressed	More than 0.36V
40	R	Sensor ground [Throttle position sensor (bank 1)]	[Engine is running] Warm-up condition Idle speed	0V
44	B	Sensor power supply [Throttle position sensor (bank 1)]	[Ignition switch: ON]	5V
