Engine Control Component Parts Location

WARNING: This page is about a different car, the 2009 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

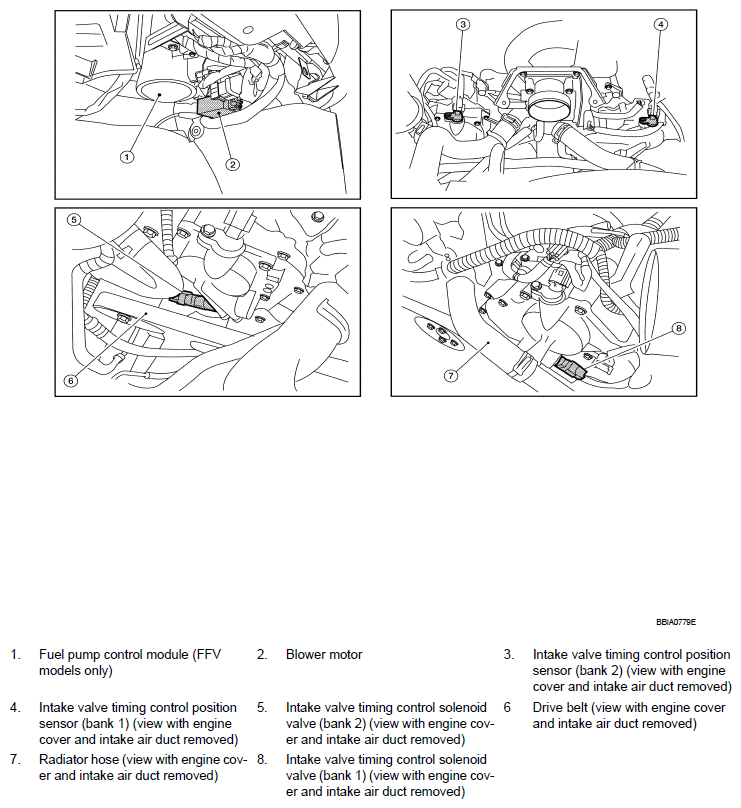

Fig 1: Identifying Engine Control Component Location (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

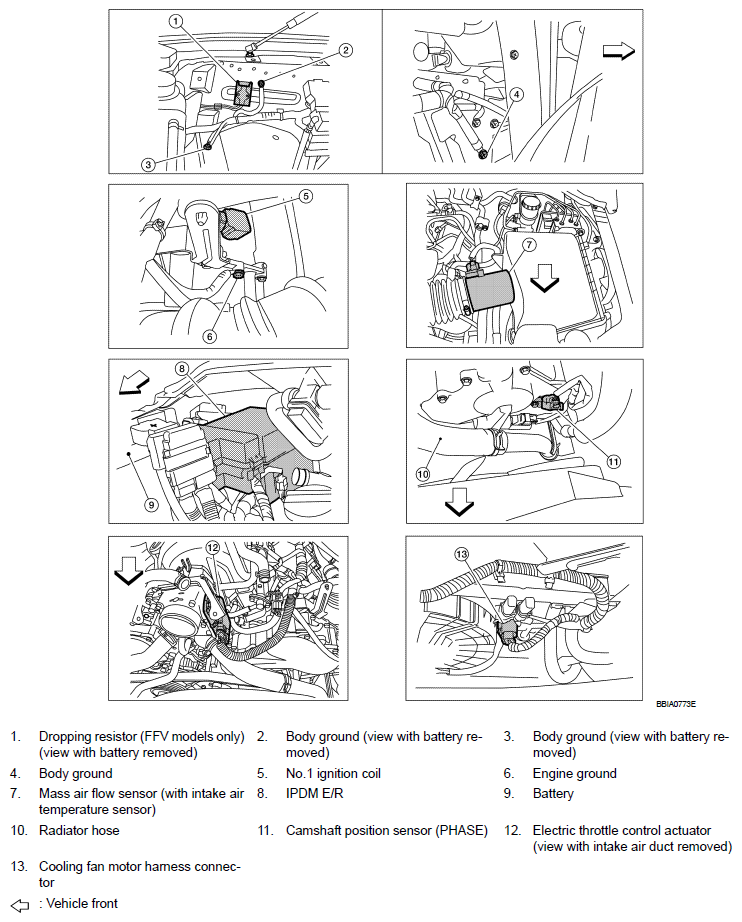

Fig 2: Identifying Engine Control Component Location (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

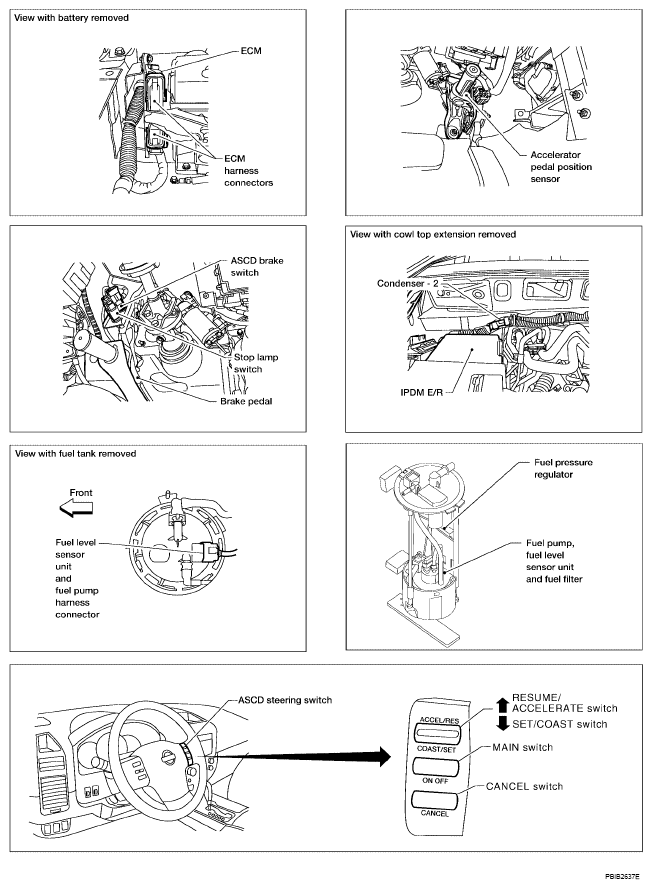

Fig 3: Identifying Engine Control Component Location (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

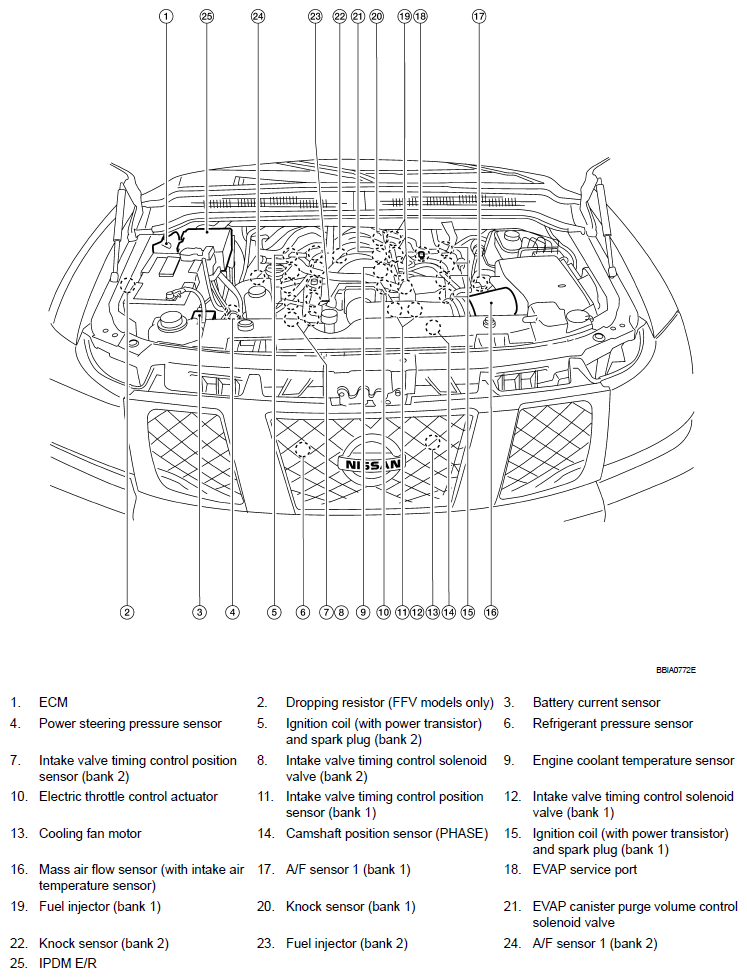

Fig 4: Identifying Engine Control Component Location (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

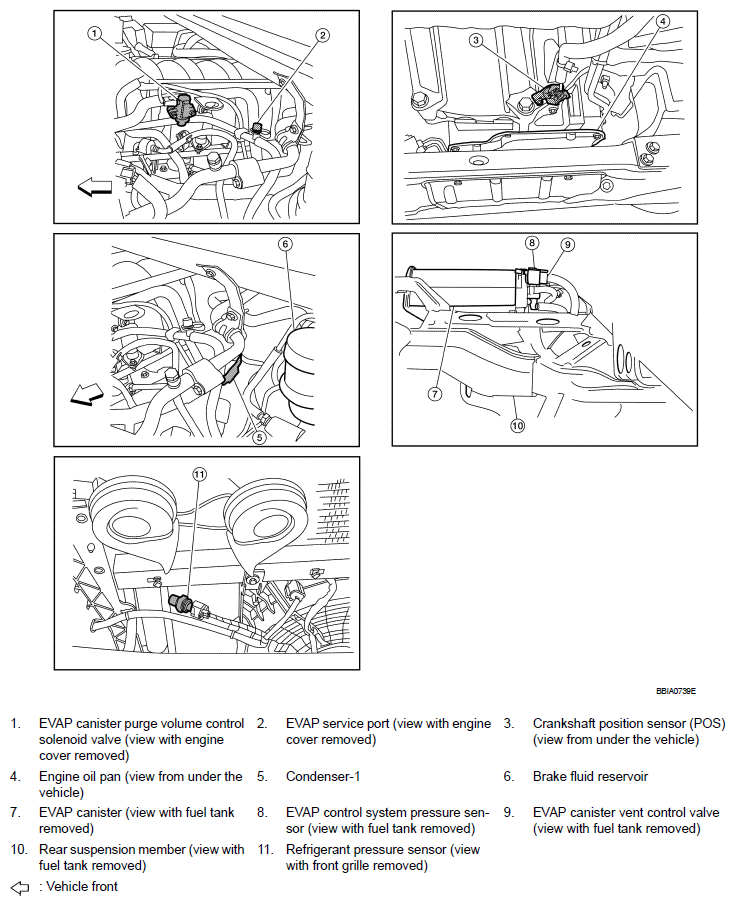

Fig 5: Identifying Engine Control Component Location (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

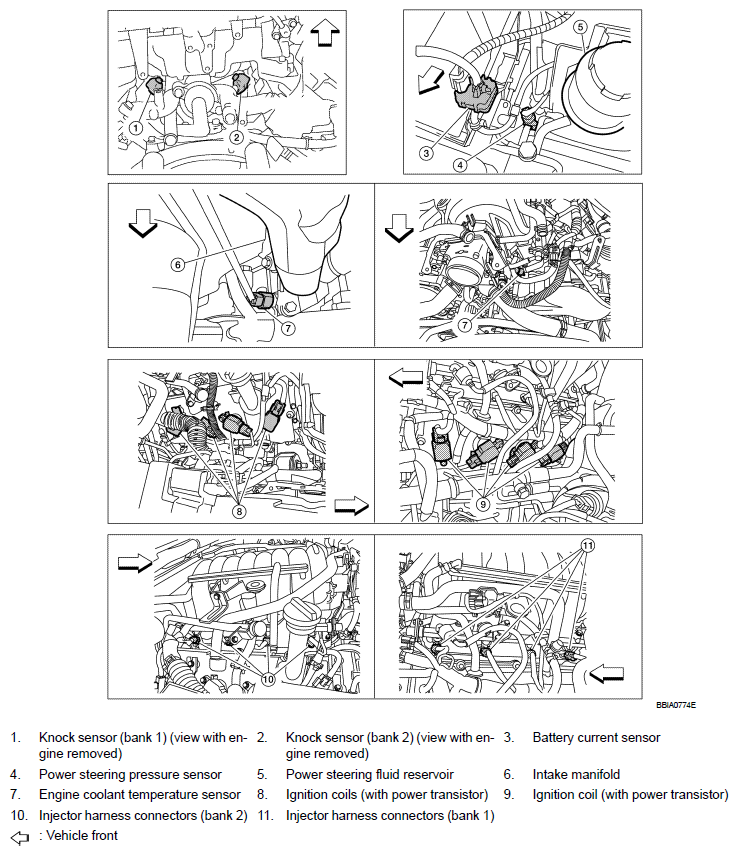

Fig 6: Identifying Engine Control Component Location (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine Control Component Location (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
