System - Engine Mechanical & Other
System - Engine Mechanical & Other

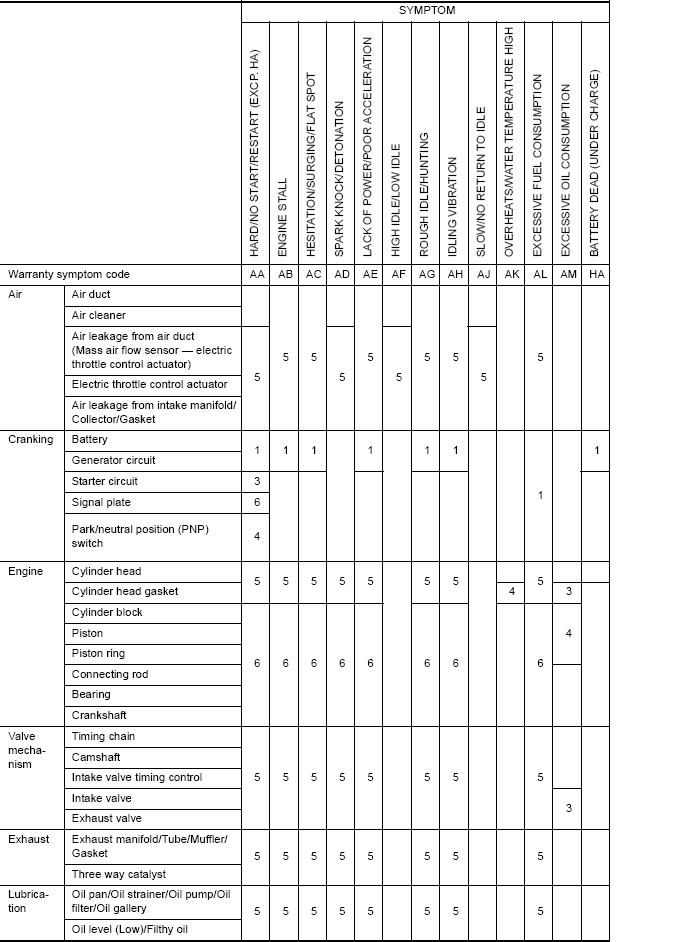

Fig 1: Symptom Matrix Chart - Engine Mechanical & Other (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

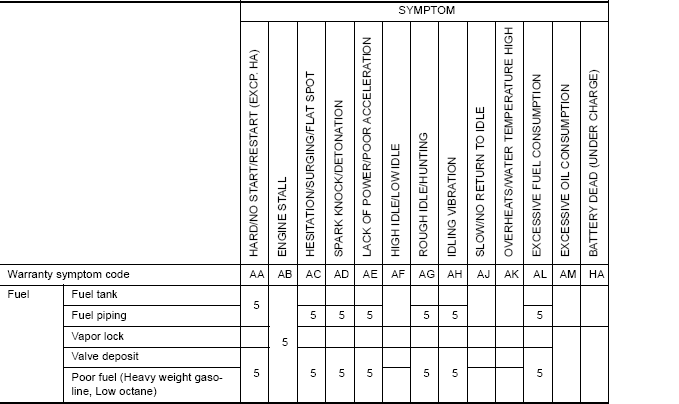

Fig 2: Symptom Matrix Chart - Engine Mechanical & Other (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

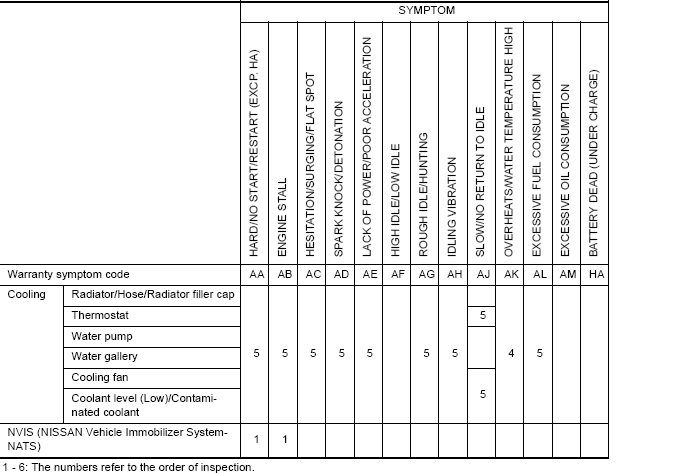

Fig 3: Symptom Matrix Chart - Engine Mechanical & Other (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
