Timing Chain: Components

WARNING: This page is about a different variant/trim than selected.

For Inspection After Removal, go to INSPECTION AFTER REMOVAL .

For Installation, go to INSTALLATION .

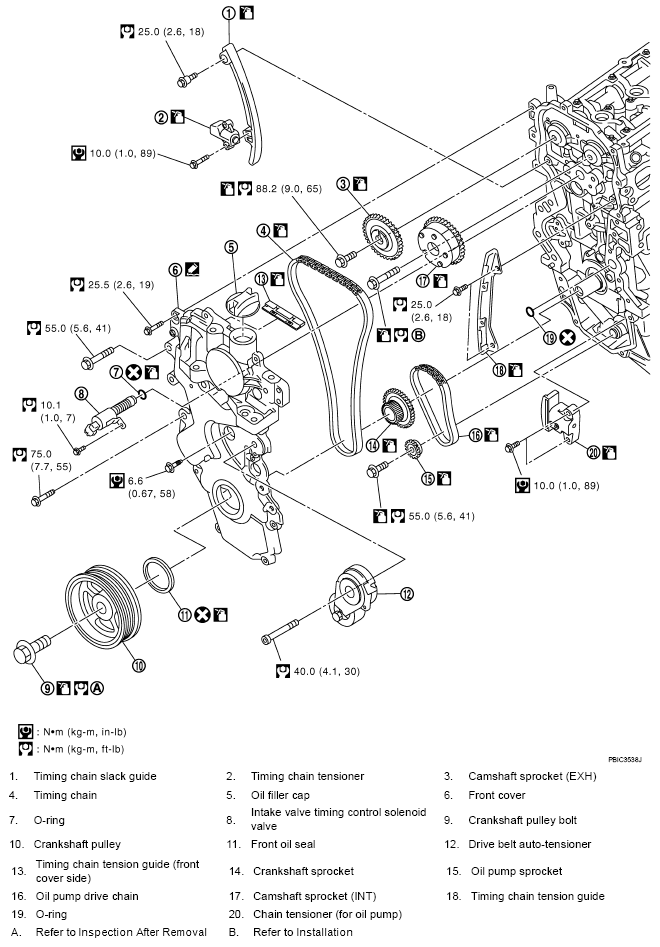

Fig 1: Exploded View Of Timing Chain Components With Torque Specifications
G04924538Courtesy of NISSAN MOTOR CO., U.S.A.
