Oil Pan: Components

WARNING: This page is about a different variant/trim than selected.

For Oil Filter, go toOIL FILTER .

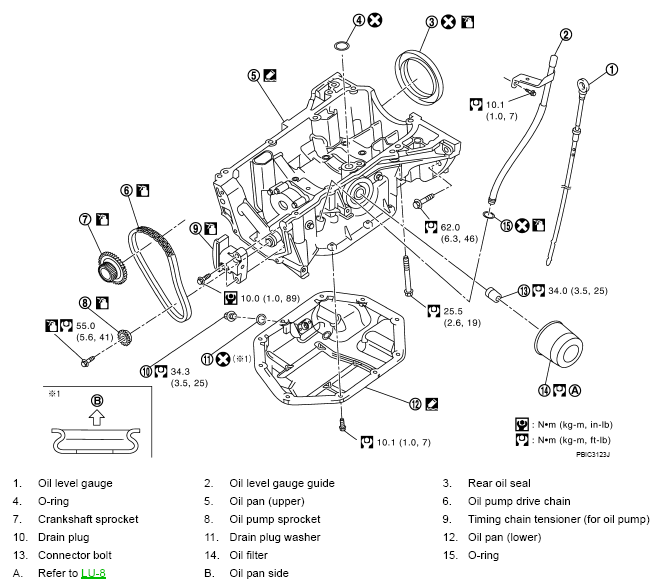

Fig 1: Exploded View Of Oil Pan Components
G00465441Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Never disassemble balancer and oil pump and oil pan (upper) because they are integral unit.
