Fuel Injector And Fuel Tube: Components

WARNING: This page is about a different variant/trim than selected.

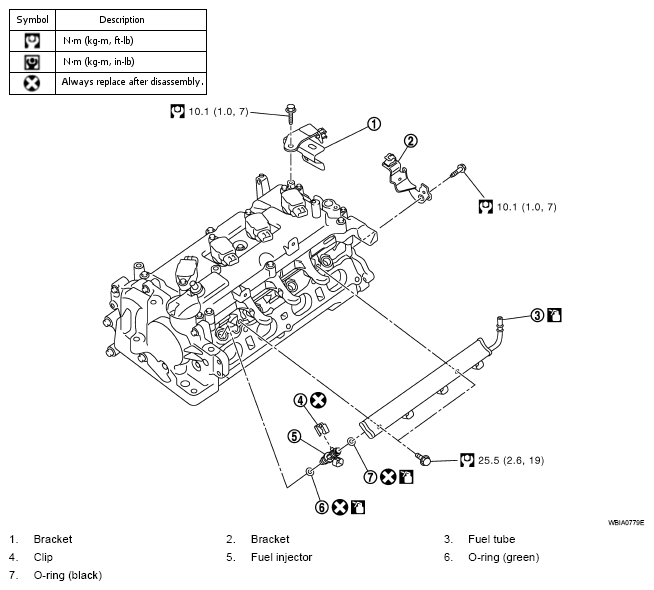

Fig 1: Fuel Injector And Fuel Tube Replacement Components With Torque Specifications
G04924530Courtesy of NISSAN MOTOR CO., U.S.A.
