Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Note the following, and install in the reverse order of removal.
- Do not allow engine oil to get on engine mounting insulator. Be careful not to damage engine mounting insulator.
- When installation directions are specified, install parts according to the directions. Refer to "COMPONENTS ".
- Make sure that each mounting insulator is seated properly, and tighten nuts and bolts.

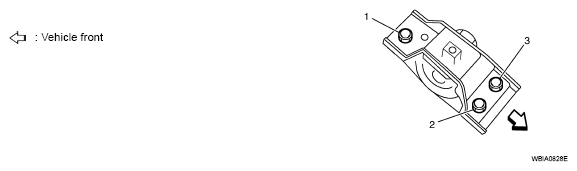

- Tighten engine mounting insulator (RH) bolts in the numerical order shown.
