Cylinder Block: Components

WARNING: This page is about a different variant/trim than selected.

For Assembly, go to ASSEMBLY .

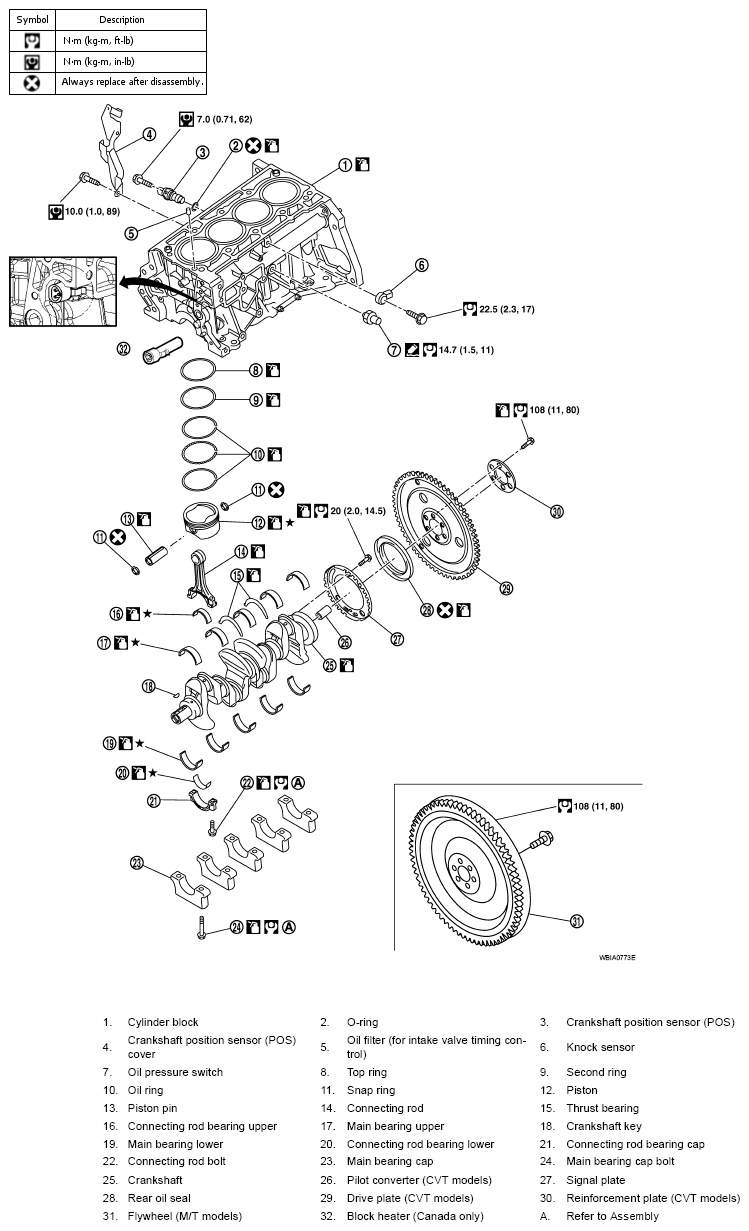

Fig 1: Exploded View Of Cylinder Block Components With Torque Specifications
G04924627Courtesy of NISSAN MOTOR CO., U.S.A.
