Section 1 (Engine Mechanical (MR20DE)): Camshaft: Components

WARNING: This page is about a different variant/trim than selected.

For Installation, go to INSTALLATION .

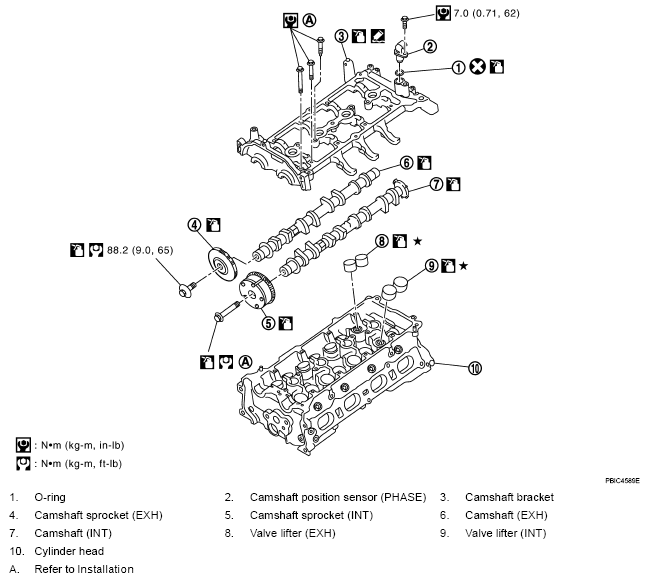

Fig 1: Exploded View Of Camshaft Components With Torque Specifications
G04924560Courtesy of NISSAN MOTOR CO., U.S.A.
