Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

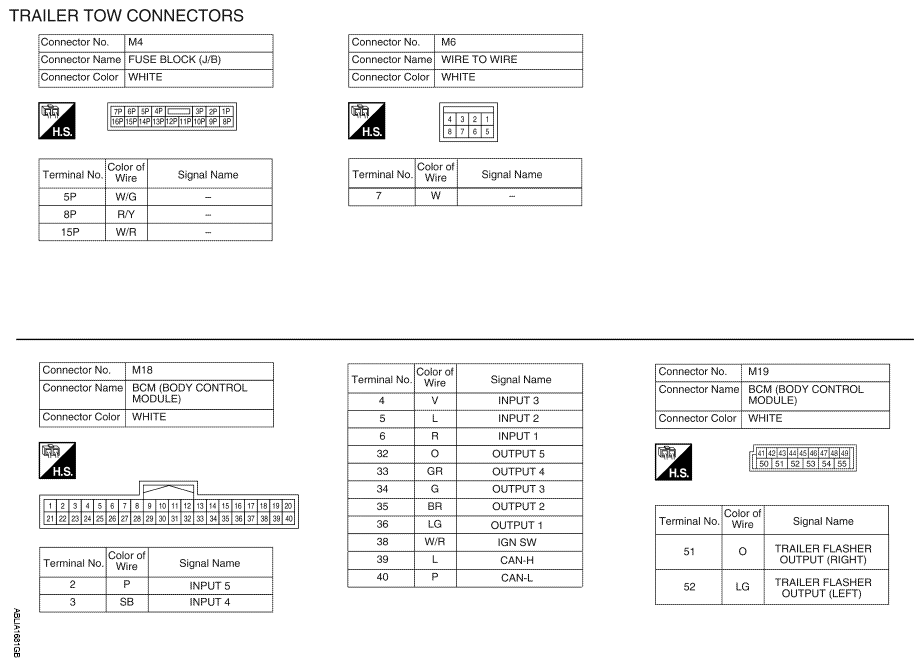

Fig 1: Identifying Trailer Tow Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

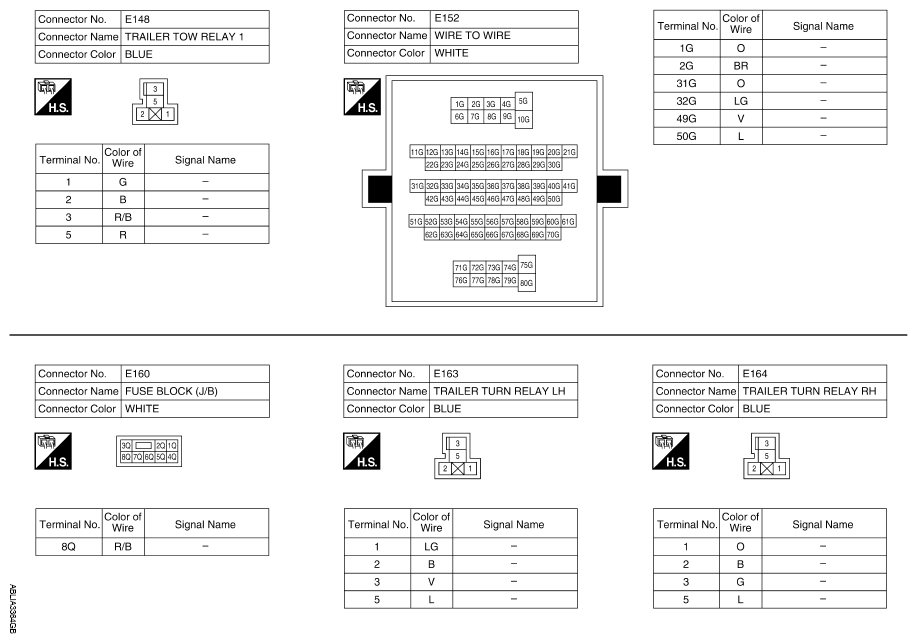

Fig 2: Identifying Trailer Tow Connectors (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

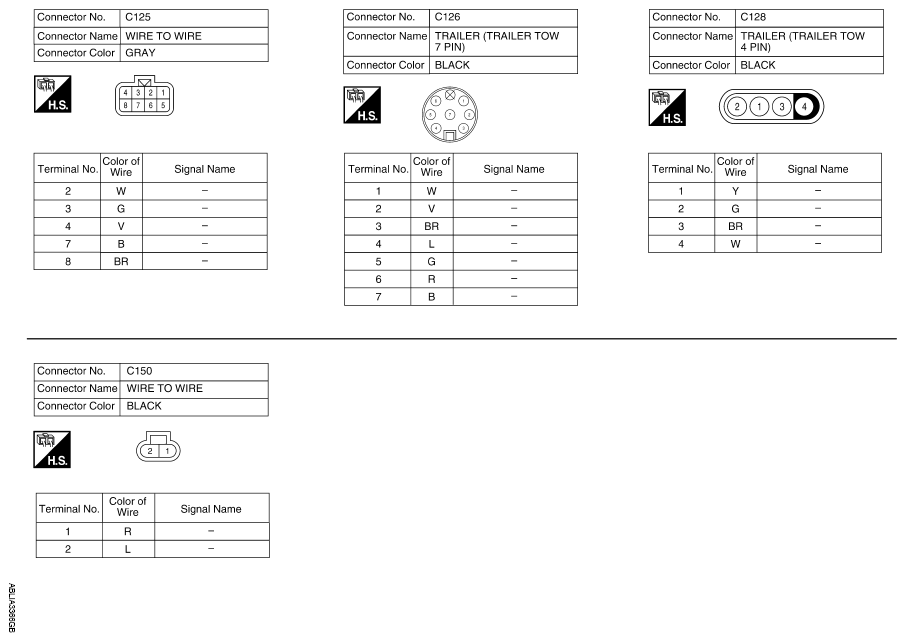

Fig 3: Identifying Trailer Tow Connectors (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

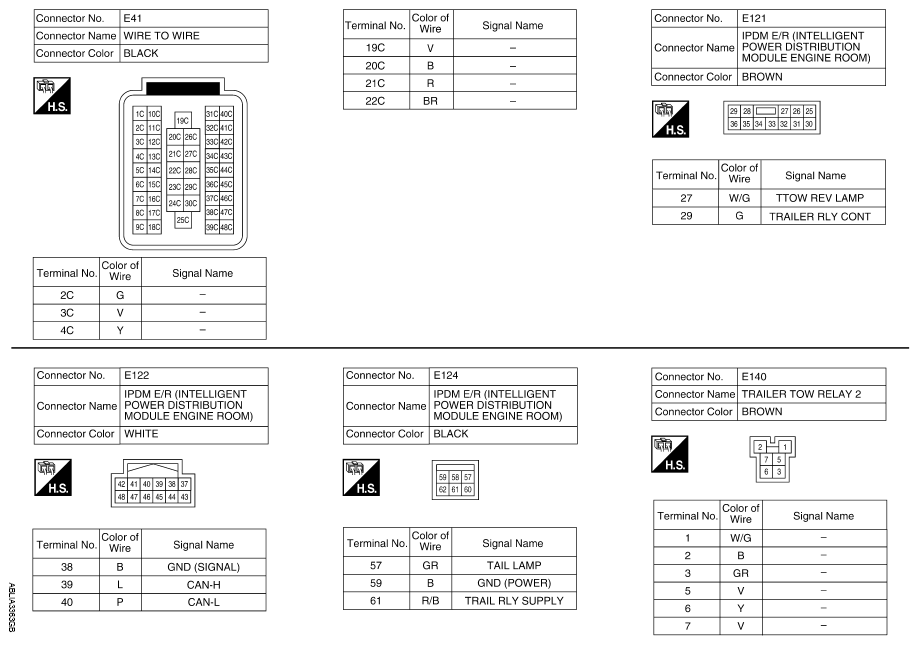

Fig 4: Identifying Trailer Tow Connectors (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

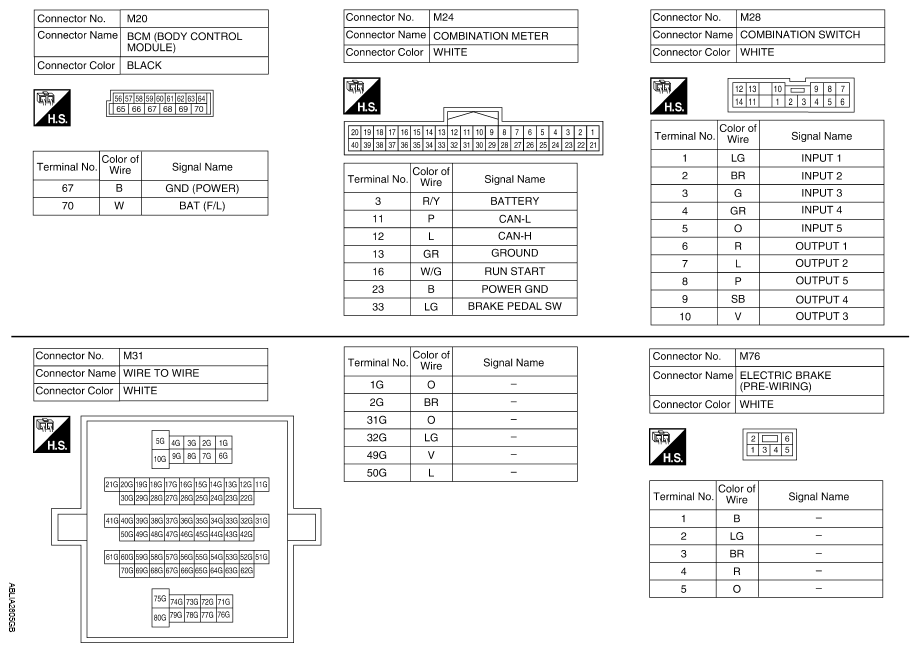

Fig 5: Identifying Trailer Tow Connectors (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

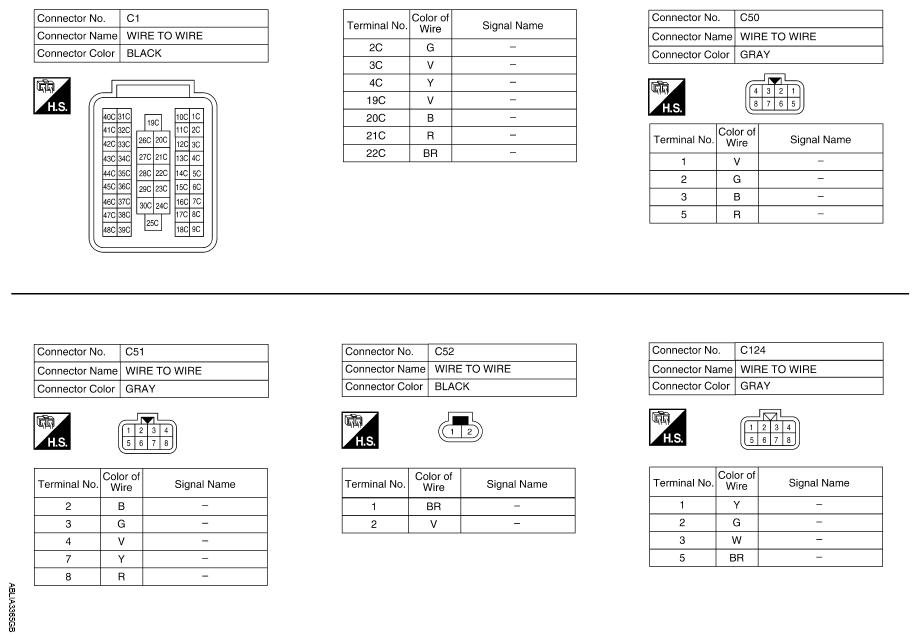

Fig 6: Identifying Trailer Tow Connectors (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

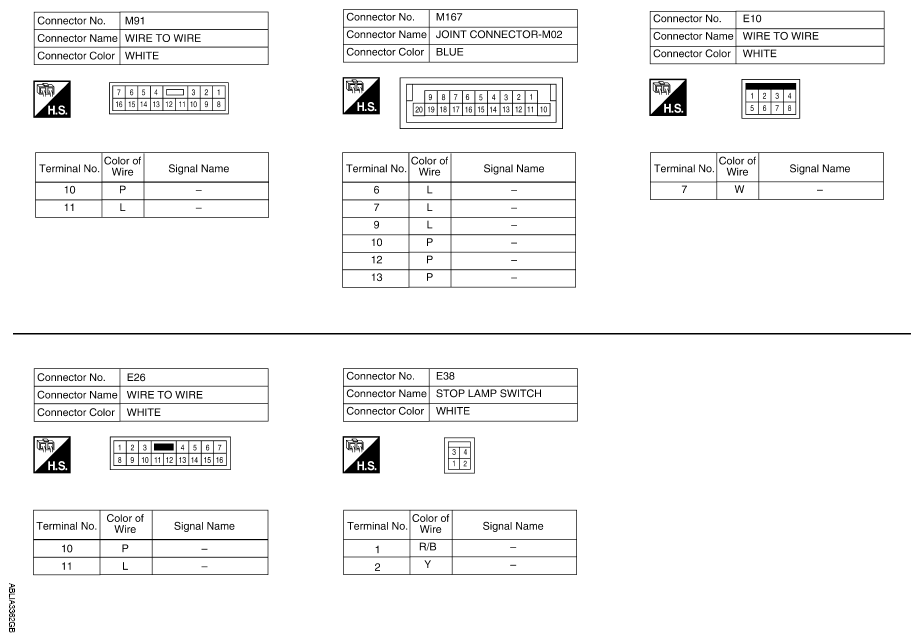

Fig 7: Identifying Trailer Tow Connectors (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
