Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove cluster lid A. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the bolt, disconnect the electrical connector and remove the NATS antenna amp (1).

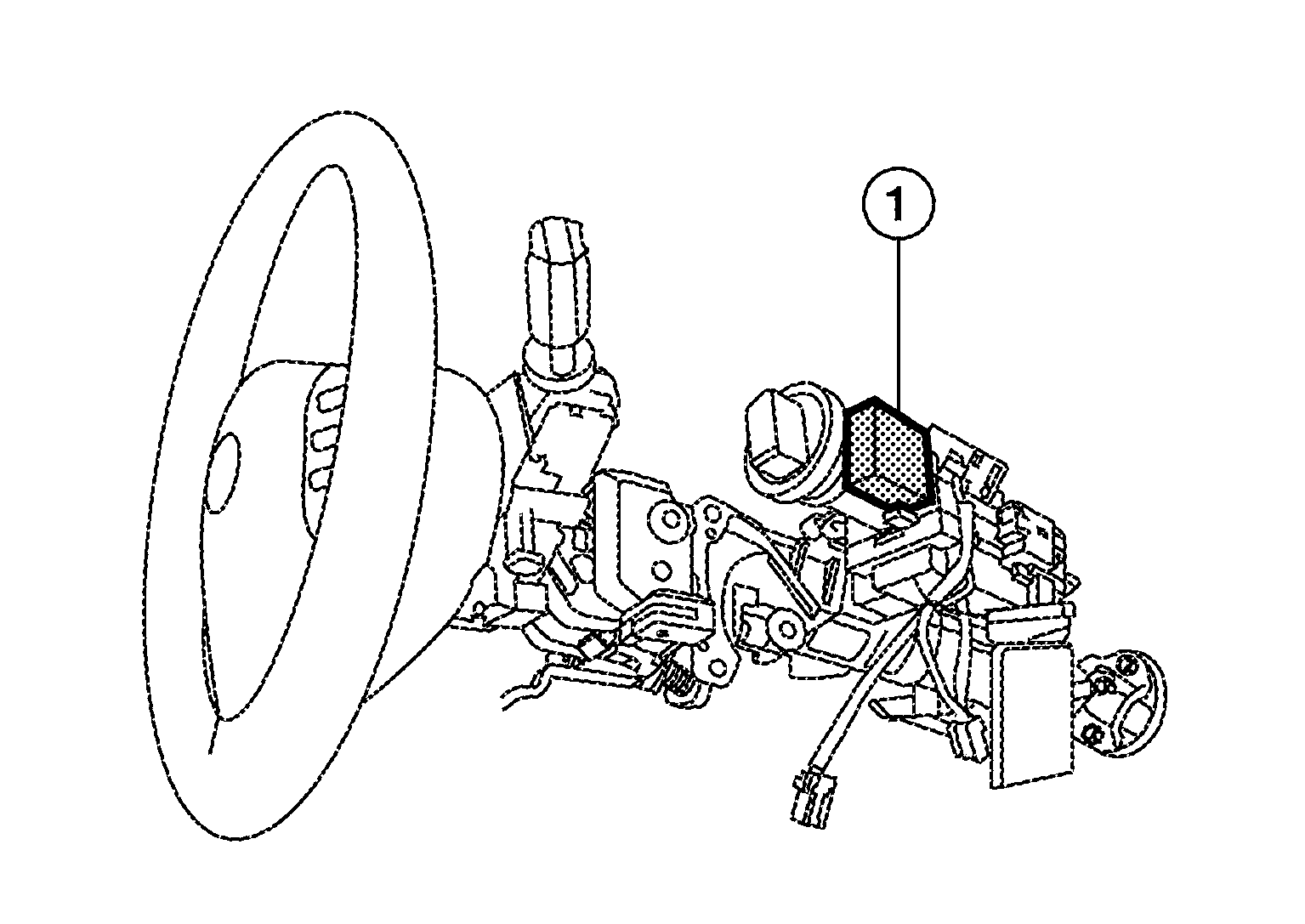

Fig 1: Identifying NATS Antenna Amp.
G05941840Courtesy of NISSAN NORTH AMERICA, INC.
