Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove oil pump housing from oil pump cover.

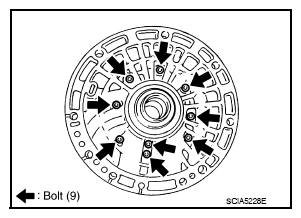

    Fig 1: Locating Oil Pump Housing Bolts
    G08165638Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove oil pump housing oil seal using suitable tool.
    CAUTION: Do not scratch oil pump housing.
    Fig 2: Removing Oil Pump Housing Oil Seal Using Flat-Bladed Screwdriver
    G08165639Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove O-ring from oil pump housing.
    Fig 3: Removing/Installing Oil Pump Housing O-Ring
    G08165640Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove O-ring from oil pump cover.
    Fig 4: Removing/Installing Oil Pump Cover O-Ring
    G08165641Courtesy of NISSAN NORTH AMERICA, INC.
