Removal and Installation: Installation

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Set key interlock cable to key cylinder and install holder.
Set shift selector to (P) position.
Turn ignition key to (LOCK) position.

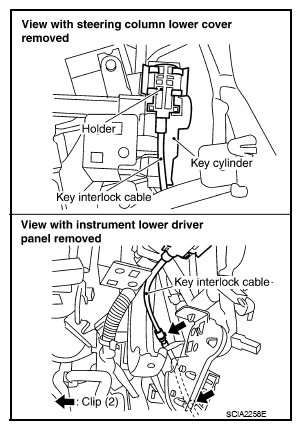

Fig 1: Identifying Key Interlock Cable To Key Cylinder And Holder
Courtesy of NISSAN NORTH AMERICA, INC.
Insert key interlock rod (A) into adjuster holder (B).
Install casing cap (C) to bracket (D).
Move slider (E) toward key interlock rod (A) to secure adjuster holder (B) to key interlock rod (A).

Fig 2: Identifying Adjuster Holder, Casing Cap, Key Interlock Rod, Slider And Bracket
Courtesy of NISSAN NORTH AMERICA, INC.
Install instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
Install the center console. Refer to "REMOVAL AND INSTALLATION ".
