Clutch And Band Chart

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

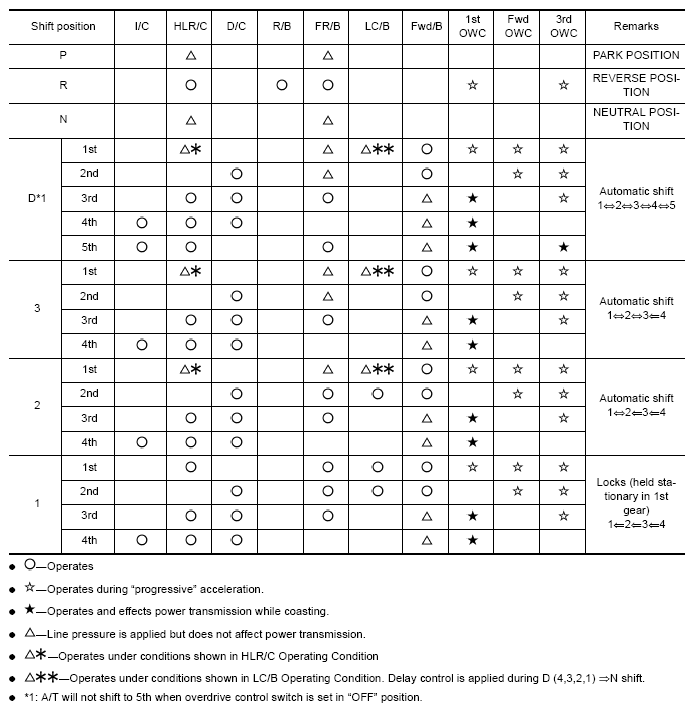

Fig 1: Identifying Clutch And Band Chart
G04909547
Fig 2: Identifying Clutch And Band Position Graph
G04900894
