Refrigerant Lines: Component

WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

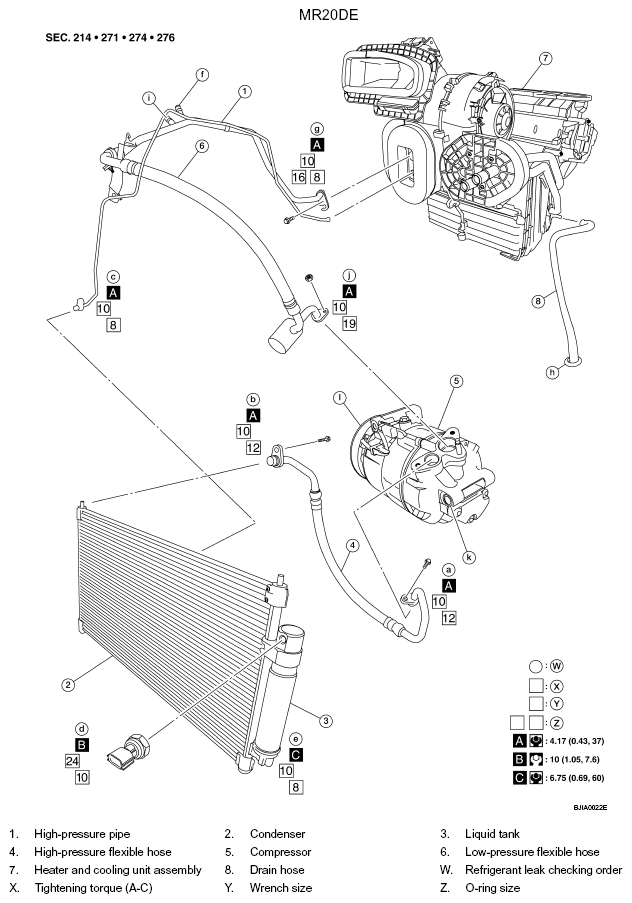

Fig 1: Refrigerant Lines Replacement Components With Torque Specifications (MR20DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Refrigerant Lines Replacement Components With Torque Specifications (QR20DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "PRECAUTION FOR REFRIGERANT CONNECTION ".
