Home >> Nissan-Datsun >> 2008 >> Sentra SE-R >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical (Qr25DE) >> Cylinder Head >> Disassembly and Assembly >> Notes

Disassembly and Assembly: Notes

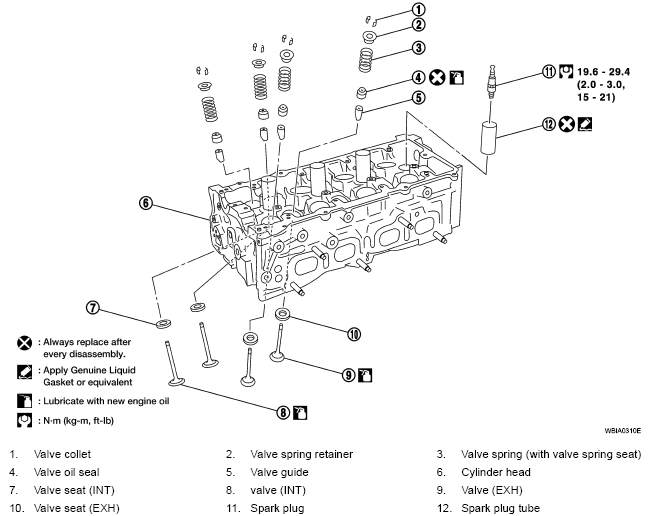

Fig 1: Cylinder Head Components With Torque Specifications
G04924864Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • When installing camshafts, chain tensioners, oil seals or other sliding parts, lubricate contacting surfaces with new engine oil.
  • Apply new engine oil to threads and seat surfaces when installing the cylinder head, camshaft sprocket, crankshaft pulley and camshaft bracket.
  • Attach tags to valve lifters so all parts are assembled in their original position.
