Transaxle Assembly: Components

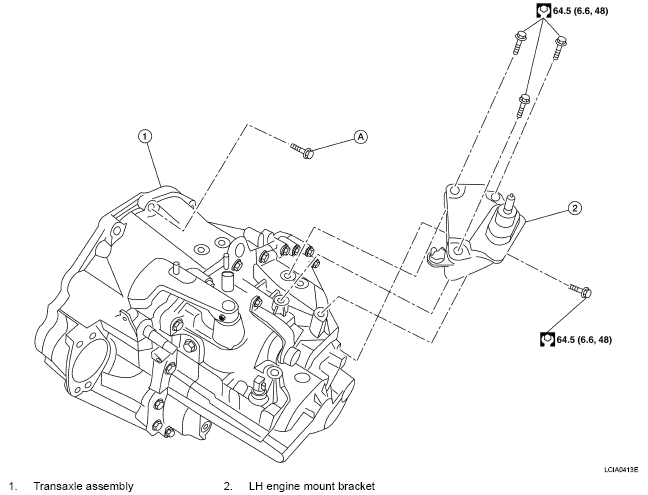

Fig 1: Identifying Transaxle Assembly Components
G04926765Courtesy of NISSAN MOTOR CO., U.S.A.

A. Refer to "INSTALLATION " for specification.

Refer to "COMPONENTS " for the symbols in the figure.
