Back-Up Lamp Switch

Check continuity.

TERMINAL CONTINUITY REFERENCE CHART

Gear position	Continuity
Reverse	Yes
Except reverse	No

Park/Neutral position (PNP) switch
Back-up lamp switch

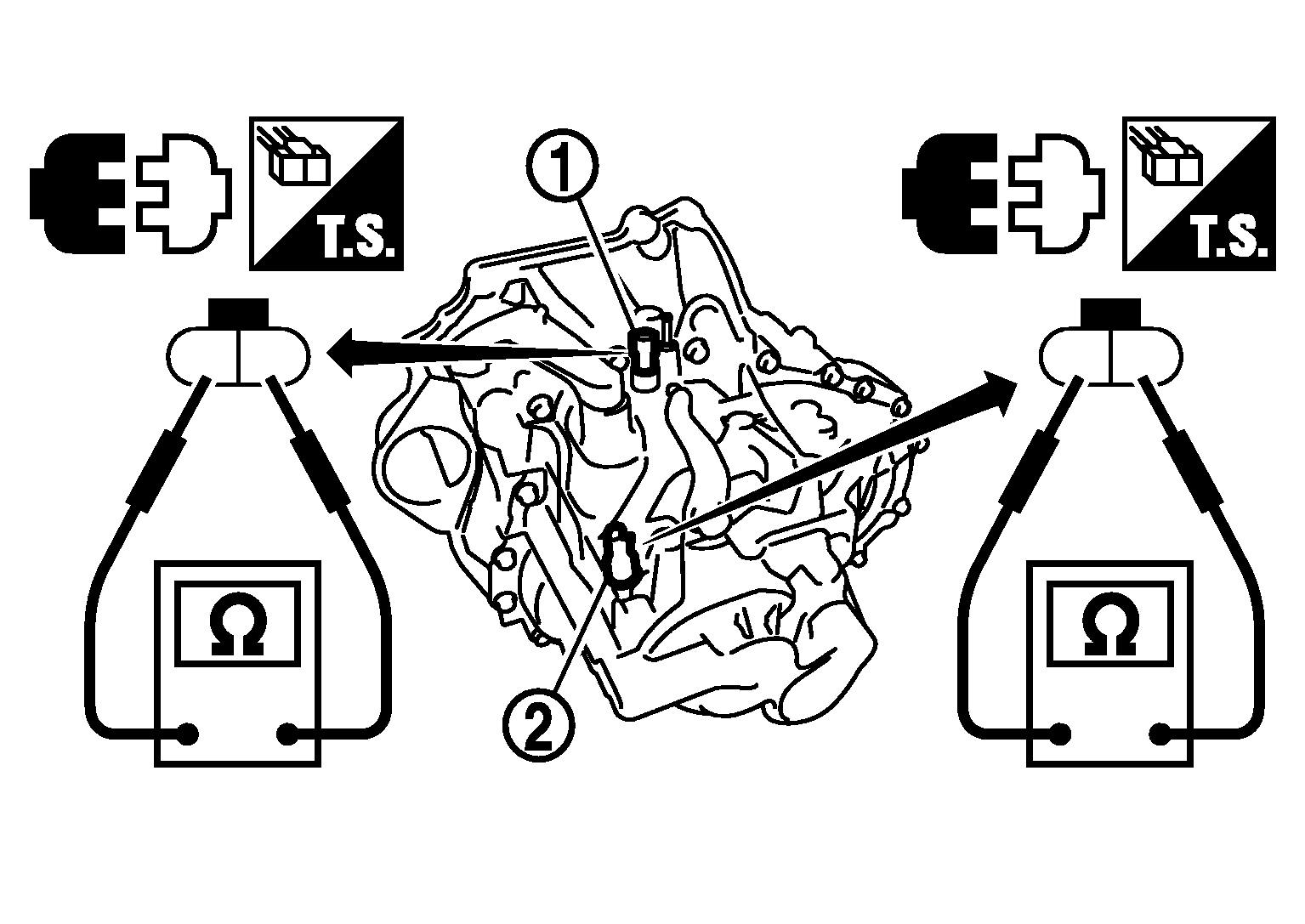

Fig 1: Checking Back-Up Lamp Switch Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
