Shift Control Components

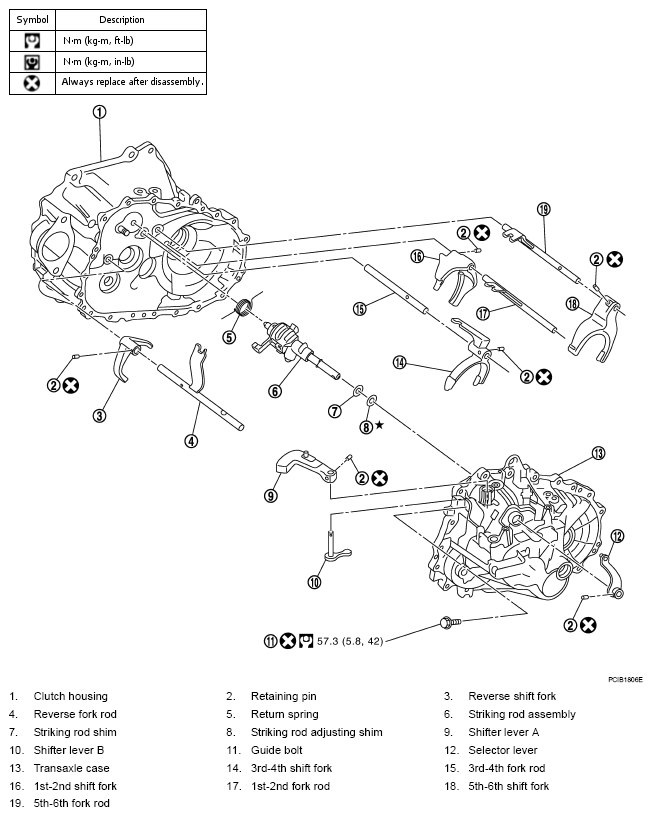

Fig 1: Shift Control Replacement Components With Torque Specifications

G04926535

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for the symbols in the figure.
