Transaxle Assembly: Components

For Installation, go to INSTALLATION .

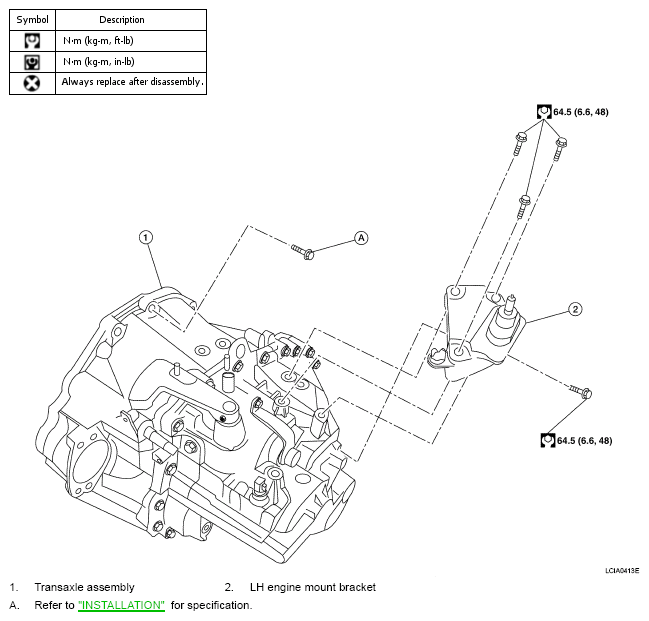

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for the symbols in the figure.
