Cross-Sectional View: Notes

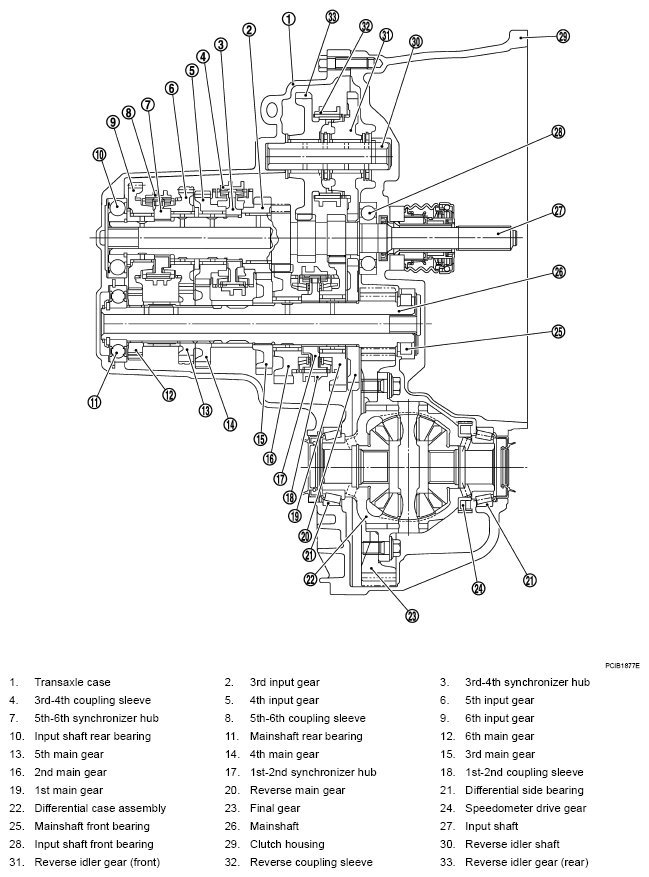

Fig 1: Cross-Sectional View Of Transmission

G04926516

Courtesy of NISSAN MOTOR CO., U.S.A.
