Components of Control Device and Cable

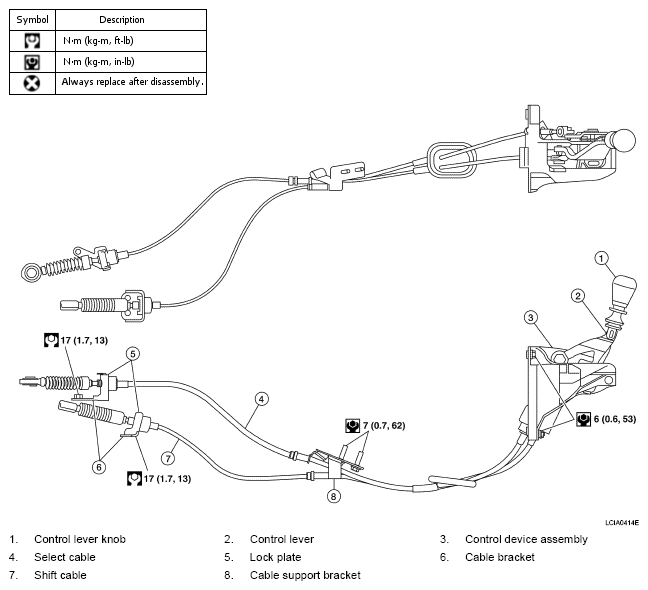

Fig 1: Control Device And Cable Replacement Components With Torque Specifications
G04926525Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for the symbols in the figure.
